Z136

Z136

Request quote
Made in Germany

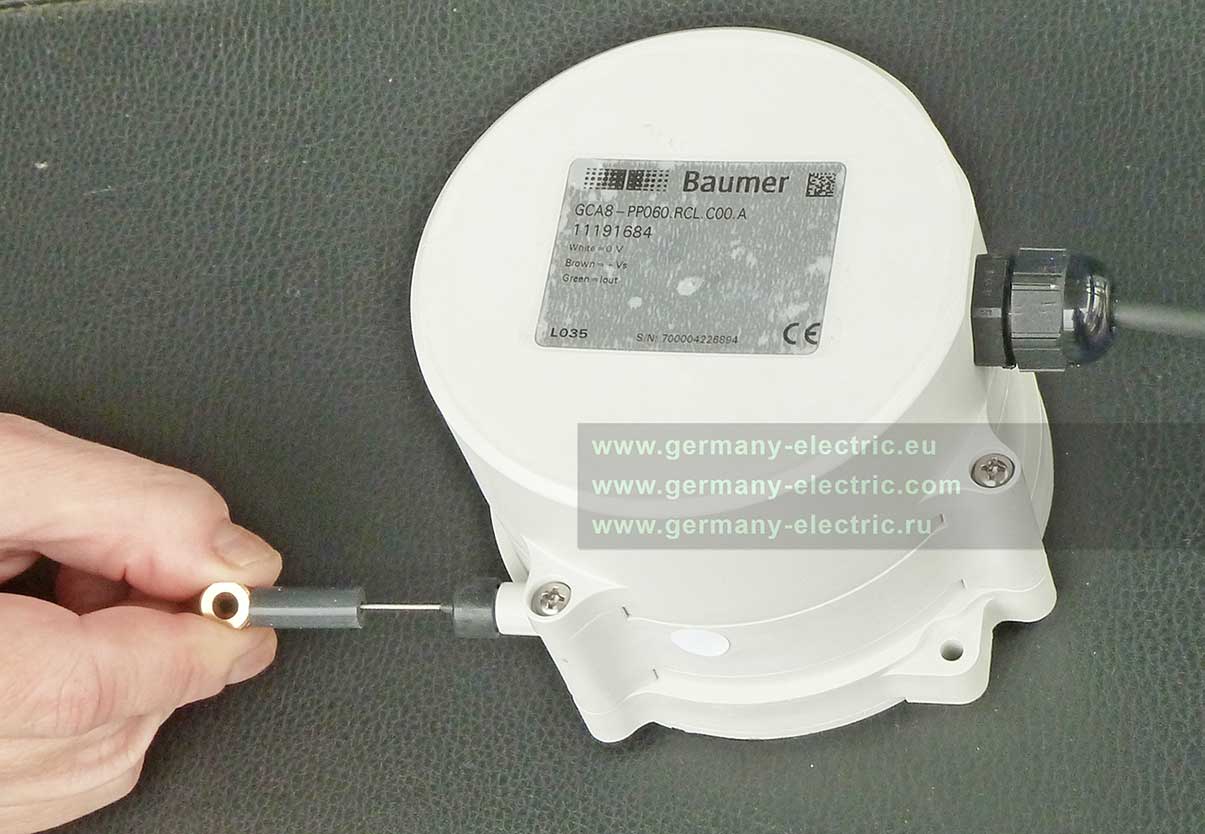

Cable-pull (Wire draw) encoders are the easiest and most reliable options for linear position measurement and positioning. They measure over the entire measuring range in an almost linear manner, and are used for measuring lengths of up to 50 m. The cable pulls are specially designed for industrial applications and are therefore particularly high-quality and durable. Cable-pull encoders are suitable for integrated or subsequent installation, and are perfectly suited for series production by OEMs. Wire draw encoders consist of a wire draw mechanism and an encoder. The rotation of the drum, which is proportional to the length being measured, is recorded and output by an encoder. This facilitates positioning on linear measuring paths. SICK's wire draw encoders support a large selection of interfaces and facilitate easy system integration for applications in challenging industrial settings. Different performance classes make it possible to select the ideal device for the application at hand.

Key features
  • Measuring range from 1.5 m to 50 m
  • Maximum resolution and linearity
  • Easy, fast and flexible installation
  • High operating reliability and a long service life
  • Incremental and absolute versions
Areas of application

Easiest and most reliable linear position measurement especially for industrial applications, for example

  • Lifting and hoisting equipment
  • Linear positioning table
  • Lifting systems
  • Cranes, drilling and excavating facilities
  • Conveyor systems
  • Forklift trucks
  • Storage and retrieval machines

Order-Nr. Encoder Type Output Mechanism Cable
GXM2S.E01 GXM2S.S10A102 Absolute encoder Interface SSI Z 136.203 3.000 mm
GXM2S.E03 GXM2S.S20A102 Absolute encoder Interface SSI Z 136.203 3.000 mm
GM401.E25 GM401.120A102 Absolute encoder Interface SSI Z 136.310 10.000 mm
GM401.E26 GM401.120A102 Absolute encoder Interface SSI Z 136.315 15.000 mm
GM401.E29 GM401.120A102 Absolute encoder Interface SSI Z 136.305 5.000 mm
GM401.E34 GM401.120A102 Absolute encoder Interface SSI Z 136.307 7.500 mm
GI356.E38 GI356.170C323 Incremental encoder 5.000 pulse/rev. Z 136.305 5.000 mm
GI356.E44 GI356.1223128 Incremental encoder 2.000 pulse/rev. Z 136.315 15.000 mm
GI356.E46 GI356.172C329 Incremental encoder 2.048 pulse/rev. Z 136.305 5.000 mm
GI356.E49 GI356.170C315 Incremental encoder 500 pulse/rev. Z 136.330 30.000 mm
GI356.E52 GI356.B72C329 Incremental encoder 2.048 pulse/rev. Z 136.350 50.000 mm
GI356.E54 GI356.172C335 Incremental encoder 5.000 pulse/rev. Z 136.310 10.000 mm
GI332.E05 GI332.A70C330 Incremental encoder 2.500 pulse/rev. Z 136.203 3.000 mm
GI332.E07 GI332.A70C330 Incremental encoder 2.500 pulse/rev. Z 136.203 3.000 mm
