Photo gallery of thyristor power regulators ESGT and Tyco
The presented photo gallery contains photos of ESGT and Tyco thyristor power regulators. The experience of using regulators in various industries at various sites has been collected and systematized.
 |
1. Three-phase ESGT regulator with maximum phase current 420A. |
 |
2. Three-phase ESG-S regulator with a maximum current of 30A phase. |
 |
3. Single-phase ESGT regulator with a maximum current of 10A. |
 |
4. Three-phase ESGT regulator with a maximum phase current of 350A. |
 |

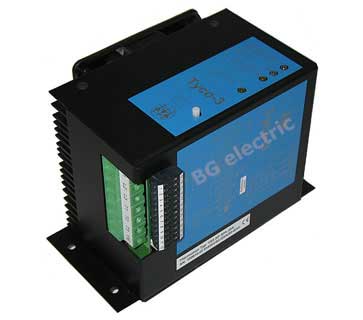

5. Single-phase regulator Tyco with a maximum current of 50A. |
 |
6. Three-phase ESGT regulator with a maximum current of 120A phase. |
 |
7. Single-phase regulator ES-1 with a maximum current of 50A. |
 |
8. Three-phase ESGT regulator with a maximum phase current of 350A. |
 |
9. Three-phase ESGT regulator with maximum phase current 1250A. |
 |
10. TST single-phase regulator with a maximum current of 15A. |
 |
11. Three-phase ESGT regulator with a maximum phase current of 350A. |
 |
12. Single-phase ESGT regulator with a maximum current of 40A. |
 |
13. Three-phase ESGT regulator with a maximum current of 420A phase. |
 |
14. Three-phase regulator Tyco with a maximum current of 15A phase. |
 |
15. Three-phase ESGT regulator with a maximum current of 120A phase. |
 |
16. Three-phase ESGT regulator with a maximum phase current of 120A and integrated fuses. |
 |
17. Three-phase ESGT regulator with a maximum current of 60A phase. |
 |
18. Three-phase ESGT regulator with a maximum current of 160A phase. |
 |
19. Single-phase ESGT regulator with a maximum current of 35A. |
 |

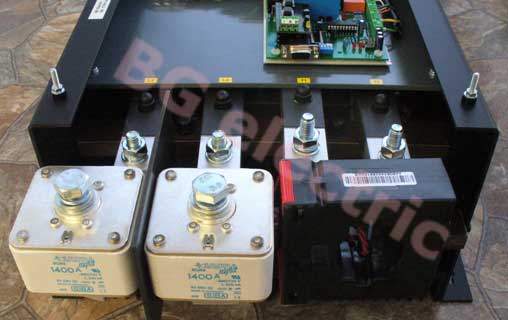

20. Single-phase ESGT regulator with a maximum current of 1400A and built-in fuses. Connection. Photo without protective panel. |
 |
21. Single-phase ESGT regulator with a maximum current of 1400A and built-in fuses. Control unit. Photo without protective panel. |
 |

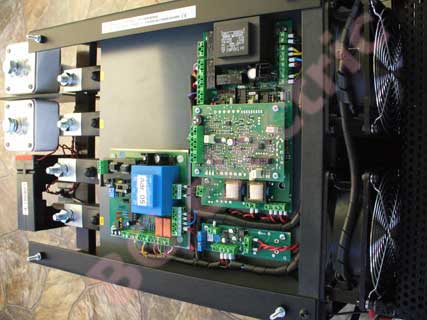

22. Three-phase ESGT regulator with a maximum current of 120A phase. Photo without protective panel. |
 |
23. "The heart of the controller" thyristor switching unit with functional control unit. |
 |
24. Single-phase ESGT regulator with a maximum current of 1400A and built-in fuses. The photo without the protective panel is rotated by 90°. |
 |
25. Three-phase ESGT regulator with maximum phase current 560A, top view. |
 |

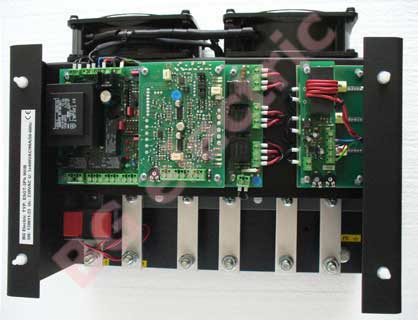

26. Three-phase ESGT regulator with a maximum current of 160A phase. Photo without protective panel. |
 |
27. Three-phase ESGT regulator with a maximum current of 160A phase. Photo from the fan side. |
 |
28. The three-phase ESGT regulator with a maximum phase current of 1000 A is installed in an electrical cabinet, protection class IP54. |
 |
29. The three-phase ESGT regulator with a maximum phase current of 1000 A is installed in an electrical cabinet, protection class IP54. |
 |
30. Single-phase regulators Tyco-1PH 05 with a maximum current of 5A for laboratory installation. |
 |

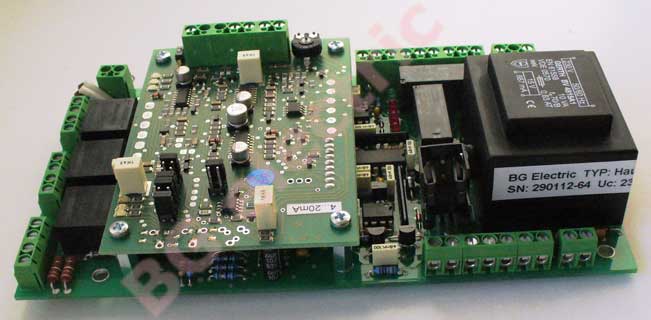

31. Single-phase ESGT regulators. Overvoltage protection board. |
 |

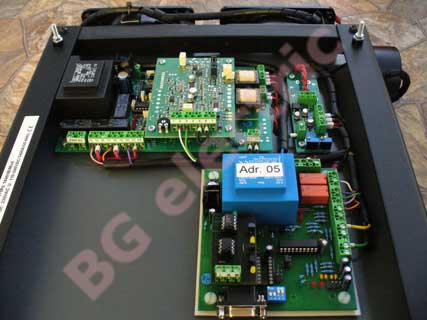

32. Three-phase ESGT regulator with a maximum current of 720 A phase and Profibus communication. Weight 40 kg. |
