Hydrostatic fill level sensors

ACS-CONTROL-SYSTEM

Fill level measurement technology from ACS-CONTROL-SYSTEM offers sensors for continuous measurement and point level detection in liquids and bulk solids. Due to the comprehensive selection of measuring principles and device types, we can offer a solution for every task. Fill levels or level measurement can be done with displacement sensors. For precise level control measurement, confocal sensors or laser triangulation sensors are typically used. For long ranges, such as silo fill level, laser rangefinders are used to measure material levels at a longer distance.

Our quote will always be lower than the manufacturer's price. Please send us the full part number of a device to get a quick response.

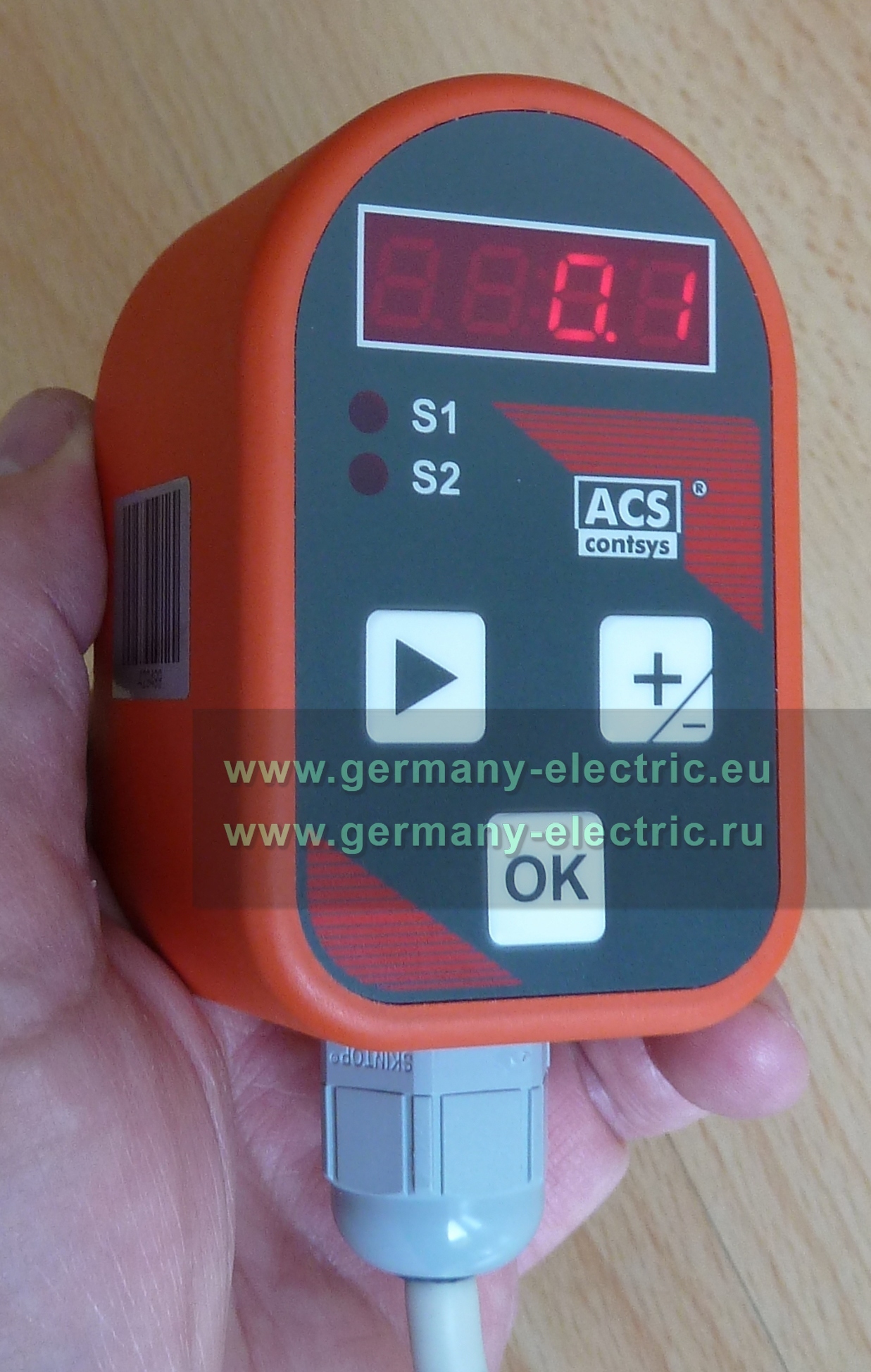

Hydrocont S50

Hydrocont S50

Made in Germany

Description

The devices of the series Hydrocont S50 with integrated digital evaluation electronic are compact sensors for measuring and monitoring of fill levels.

The excellent characteristics like highest strength against pressure and pressure blows, high resistance against chemicals and corrosion, very good insensitiveness against temperature shocks and EM interference, highest accuracy and long term stability and also low influence of temperature makes it possible to use the sensor in all pressureless containers for liquid medium like water, waste water, solvents, oil, sludge, grease, cleaning agents, etc.

The level measurement system Hydrocont S50 is built in the wall of the medium container. The medium contacts directly the ceramic membrane of the sensor without using a pressure mediator liquid and causes there a deflection of the membrane because of the hydrostatic pressure of the medium.

At the maximum deflection the membrane contacts a robust ceramic carrier and because of this, the membrane come through over pressure of e.g. 80-times of nominal load at a sensor with a pressure range of 0-50 mbar without damage. The fill level proportional pressure signal of the ceramic membrane is recorded from a processor with high resolution, adjusted according to the settings and converted into a high resolution output signal of 4-20mA or 0-10V. By using 3 keys and an LED display the sensor measurement range, the display, the PNP-switching outputs and the damping can be adjusted or the behaviour in the case of failure and the release of the fast adjustment can be set.

Function

The level measurement system Hydrocont S50 is built in the wall of the medium container.
The medium contacts directly the ceramic membrane of the sensor without using a pressure mediator liquid and causes there a deflection of the membrane because of the hydrostatic pressure of the medium.
At the maximum deflection the membrane contacts a robust ceramic carrier and because of this, the membrane come through over pressure of e.g. 80-times of nominal load at a sensor with a pressure range of 0-50 mbar without damage.
The fill level proportional pressure signal of the ceramic membrane is recorded from a processor with high resolution, adjusted according to the settings and converted into a high resolution output signal of 4-20mA or 0-10V.

By using 3 keys and an LED display the sensor measurement range, the display, the PNP-switching outputs and the damping can be adjusted or the behaviour in the case of failure and the release of the fast adjustment can be set.
The switching state of the two PNP-switching output is signalled by one LED for every output.

Ausgang Varianten A/B/C/D 4 bis 20 mA, 2-Draht, Profibus PA
Ausgang Varianten E/F/G/H 0 bis 10 V, 3-Draht
Variante C/D 10,5 V bis 45 V DC
Variante A/B/E/F/G/H 14,5 V bis 45 V DC
Restwelligkeit ≤ 2 Vss
Schaltausgänge (S1 / S2) 2x PNP-schaltend auf +VS
Ausgangsstrom > 250 mA, strombegrenzt, kurzschlussfest
Verzögerungszeit Ausgang bei Dämpfung 1 T90 typ. 260 ms, max. 310 ms
Einstellbereich Dämpfung 0,3 bis 30 Sekunden / 100 Stufen
Temperaturabweichung ≤ 0,1% / 10 K der Nennmessspanne
Kennlinienabweichung ≤ 0,1% / 0,2% der Nennmessspanne
Kalibrier-Abweichung ≤ 0,05% der Nennmessspanne
Langzeitdrift ≤ 0,1% / Jahr der Nennmessspanne
Speisespannungseinfluss ≤ 0,02% / 10 V der Nennmessspanne
Auflösung besser 1 µA bzw. 0,5 mV (16 Bit = 65536 Stufen)
Membran Keramik Standard 96% or Hochrein 99,9%
Prozessanschluss Stahl 1.4404 / andere auf Anfrage
Temperaturtrennstück Stahl 1.4404 / andere auf Anfrage
Dichtungen Viton® / EPDM / Neopren / Perfluorelastomer
Anschlussgehäuse Stahl 1.4301 / PUM – Delrin / PBT
Tragkabel PE/FEP
Messstoffbedingungen -40°C bis +125°C, Tragkabel -20°C bis +70°C
Umgebungs-/Lagertemperatur -40°C bis +85°C, Tragkabel -20°C bis +70°C
Schutzart IP65/IP67

Examples of supplied versions: expand / close

Hydrocont S50 K08B0AK110 Hydrocont S50 KHADYAS130
Hydrocont S50 KH8B0AK110 Hydrocont S50 S08B0AK110
Hydrocont S50 SHADYAS130 Hydrocont S50 SH8B0AK110
Hydrocont S50 T08B0AK110 Hydrocont S50 THADYAS130
Hydrocont S50 TH8B0AK110 Hydrocont S50 W08B0AK110
Hydrocont S50 WHADYAS130 Hydrocont S50 WH8B0AK110
Hydrocont S50 R08B0AK110 Hydrocont S50 RHADYAS130
Hydrocont S50 RH8B0AK110 Hydrocont S50 F08B0AK110
Hydrocont S50 FHADYAS130 Hydrocont S50 FH8B0AK110
Hydrocont S50 H08B0AK110 Hydrocont S50 HHADYAS130
Hydrocont S50 HH8B0AK110 Hydrocont S50 SHABYDA11C
Hydrocont S50 KHABYDA110 Hydrocont EXS50 K08B0AK110
Hydrocont EXS50 KHADYAS130 Hydrocont EXS50 KH8B0AK110
Hydrocont EXS50 S08B0AK110 Hydrocont EXS50 SHADYAS130
Hydrocont EXS50 SH8B0AK110 Hydrocont EXS50 T08B0AK110
Hydrocont EXS50 THADYAS130 Hydrocont EXS50 TH8B0AK110
Hydrocont EXS50 W08B0AK110 Hydrocont EXS50 WHADYAS130
Hydrocont EXS50 WH8B0AK110 Hydrocont EXS50 R08B0AK110
Hydrocont EXS50 RHADYAS130 Hydrocont EXS50 RH8B0AK110
Hydrocont EXS50 F08B0AK110 Hydrocont EXS50 FHADYAS130
Hydrocont EXS50 FH8B0AK110 Hydrocont EXS50 H08B0AK110
Hydrocont EXS50 HHADYAS130 Hydrocont EXS50 HH8B0AK110
Hydrocont EXS50 SHABYDA11C Hydrocont EXS50 KHABYDA110

Hydrocont D50 has been discontinued. We will gladly offer a replacement for any old sensor if you send us its complete part number or a photo of its nameplate.


Hydrocont HN4

Hydrocont HN4

Made in Germany

Description

The devices of the series Hydrocont HN4 with integrated digital evaluation electronic are compact sensors for measuring and monitoring of fill levels.

The excellent characteristics like highest strength against pressure and pressure blows, high resistance against chemicals and corrosion, very good insensitiveness against temperature shocks and EM interference, highest accuracy and long term stability and also low influence of temperature makes it possible to use the sensor in all pressureless containers for liquid medium like water, waste water, solvents, oil, sludge, grease, cleaning agents, etc.

Because of the special construction of the device Hydrocont HN4, this sensor is especially suitable for the use in areas with high air humidity and condensed water formation, where conventional devices can not be used or can only be used by applying an expensive leaded pressure compensation capillary.

Function

The level measurement system Hydrocont HN4 is built in the wall of the medium container.

The medium contacts directly the ceramic membrane of the sensor without using a pressure mediator liquid and causes there a deflection of the membrane because of the hydrostatic pressure of the medium.

At the maximum deflection the membrane contacts a robust ceramic carrier and because of this, the membrane come through over pressure of up to 80-times of nominal load without damage.

The fill level proportional pressure signal of the ceramic membrane is recorded from a processor with high resolution, adjusted according to the settings and converted into a high resolution output signal of 4-20mA or 0-10V. Due to the integrated linearization function with up to 25 linearization points it is possible to realize a linearization of the measuring signal, e.g. for the volume calculation in conical or laying cylindrical container.

By using 3 keys and an LED display the sensor measurement range, the display, the PNP-switching outputs and the damping can be adjusted or the behaviour in the case of failure and the release of the fast adjustment can be set.

The switching state of the two PNP-switching output is signalled by one LED for every output.

Ausgang Varianten A/B/C/D 4 bis 20 mA, 2-Draht
Ausgang Varianten E/F/G/H 0 bis 10 V, 3-Draht
Variante C/D 12,5 V bis 45 V DC
Variante A/B/E/F/G/H 16,5 V bis 45 V DC
Restwelligkeit ≤ 2 Vss
Schaltausgänge (S1 / S2) 2x PNP-schaltend auf +VS
Ausgangsstrom > 250 mA, strombegrenzt, kurzschlussfest
Verzögerungszeit Ausgang bei Dämpfung 1 T90 typ. 260 ms, max. 310 ms
Einstellbereich Dämpfung 0,3 bis 30 Sekunden / 100 Stufen
Temperaturabweichung ≤ 0,2% / 10 K der Nennmessspanne
Kennlinienabweichung ≤ 0,1% / 0,2% der Nennmessspanne
Kalibrier-Abweichung ≤ 0,05% der Nennmessspanne
Langzeitdrift ≤ 0,1% / Jahr der Nennmessspanne
Speisespannungseinfluss ≤ 0,02% / 10 V der Nennmessspanne
Auflösung besser 1 µA bzw. 0,5 mV (16 Bit = 65536 Stufen)
Membran Keramik Standard 96%, Keramik Hochrein 99,9%
Prozessanschluss Stahl 1.4404 / andere auf Anfrage
Temperaturtrennstück Stahl 1.4404 / andere auf Anfrage
Dichtungen Viton / EPDM / Neopren / Perfluorelastomer
Anschlussgehäuse Stahl 1.4301
Tragkabel PE/FEP
Messstoffbedingungen -40°C bis +125°C, bei Tragkabel -20°C bis +70°C
Umgebungs-/Lagertemperatur -40°C bis +85°C; bei Tragkabel -20°C bis +70°C
Schutzart IP65/IP67

Examples of supplied versions: expand / close

Hydrocont HN4R CS71VC01M00R1SA Hydrocont HN4R CS73VC01M00R1SA
Hydrocont HN4R CS74VC01M00R1SA Hydrocont HN4R CS76VC01M00R1SA
Hydrocont HN4R CS81VC01M00R1SA Hydrocont HN4R CS83VC01M00R1SA
Hydrocont HN4R CS84VC01M00R1SA Hydrocont HN4R CS86VC01M00R1SA
Hydrocont HN4T CS71VC01M00R1SA Hydrocont HN4T CS73VC01M00R1SA
Hydrocont HN4T CS74VC01M00R1SA Hydrocont HN4T CS76VC01M00R1SA
Hydrocont HN4T CS81VC01M00R1SA Hydrocont HN4T CS83VC01M00R1SA
Hydrocont HN4T CS84VC01M00R1SA Hydrocont HN4T CS86VC01M00R1SA
Hydrocont HN4R CS71VC01K00R1SA Hydrocont HN4R CS73VC01K00R1SA
Hydrocont HN4R CS74VC01K00R1SA Hydrocont HN4R CS76VC01K00R1SA
Hydrocont HN4R CS81VC01K00R1SA Hydrocont HN4R CS83VC01K00R1SA
Hydrocont HN4R CS84VC01K00R1SA Hydrocont HN4R CS86VC01K00R1SA
Hydrocont HN4T CS71VC01K00R1SA Hydrocont HN4T CS73VC01K00R1SA
Hydrocont HN4T CS74VC01K00R1SA Hydrocont HN4T CS76VC01K00R1SA
Hydrocont HN4T CS81VC01K00R1SA Hydrocont HN4T CS83VC01K00R1SA
Hydrocont HN4T CS84VC01K00R1SA Hydrocont HN4T CS86VC01K00R1SA
Hydrocont HN4R CS71VC01R00R1SA Hydrocont HN4R CS73VC01R00R1SA
Hydrocont HN4R CS74VC01R00R1SA Hydrocont HN4R CS76VC01R00R1SA
Hydrocont HN4R CS81VC01R00R1SA Hydrocont HN4R CS83VC01R00R1SA
Hydrocont HN4R CS84VC01R00R1SA Hydrocont HN4R CS86VC01R00R1SA
Hydrocont HN4T CS71VC01R00R1SA Hydrocont HN4T CS73VC01R00R1SA
Hydrocont HN4T CS74VC01R00R1SA Hydrocont HN4T CS76VC01R00R1SA
Hydrocont HN4T CS81VC01R00R1SA Hydrocont HN4T CS83VC01R00R1SA
Hydrocont HN4T CS84VC01R00R1SA Hydrocont HN4T CS86VC01R00R1SA

Hydrocont HP4

Hydrocont HP4

Made in Germany

Description

The device Hydrocont HP4 is an electronic hydrostatic filling level transmitter for monitoring, control and continuous measurement of filling levels and temperatures.Due to its high accuracy and the digital adjustability by RS485 Modbus®-RTU the Hydrocont HP4 can be suited to a wide variety of applications. The robust design and the high quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.

A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking. A LABS- resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or a factory certifications for drink water suitability. Customer specific special versions can be realized short-term on request, e.g. special designs or other process materials.

Nom. pressure PN relative 0...+0,1 bar up to 0...+10 bar
Characteristic deviation ≤ ±0,05% FSO; ≤ ±0,1% FSO; ≤ ±0,2% FSO
Temperature deviation Tk Zero ≤ ±0,015% FSO/K
Time behavior T90 ≤ 2ms (td = 0s)
Sensor type Pt1000 Class A
Characteristic deviation ≤ ±0,1K + 0,002 x [dt (25°C)]
Time behavior T90 ≤ 4s
Interface RS485, bidirectional, Modbus-RTU, 9600 Baud
Time behavior ton ≤ 250ms (td = 0s)
Supply voltage Us (polarity protected) 6 V ... 35 V DC
Coarse protection 75 V / 10kA – wave 8/20µs all lines to PE
Fine protection 36V all lines to -L
Environmental temperature -20°C ... +70°C
Protection class IP68 (EN/IEC 60529)
Materials (Process wetted) Ceramic Al2O3, CrNi-Steel, FPM, EPDM, PE, PUR

Examples of supplied versions: expand / close

Hydrocont HP4 SCS01V001V00RKA Hydrocont HP4 SCS03V001V00RKA
Hydrocont HP4 SCS01D001V00RKA Hydrocont HP4 SCS03D001V00RKA
Hydrocont HP4 SCS01V005V00RKA Hydrocont HP4 SCS03V005V00RKA
Hydrocont HP4 SCS01D005V00RKA Hydrocont HP4 SCS03D005V00RKA
Hydrocont HP4 SCS01V010V00RKA Hydrocont HP4 SCS03V010V00RKA
Hydrocont HP4 SCS01D010V00RKA Hydrocont HP4 SCS03D010V00RKA
Hydrocont HP4 SCS01V012V00RKA Hydrocont HP4 SCS03V012V00RKA
Hydrocont HP4 SCS01D012V00RKA Hydrocont HP4 SCS03D012V00RKA
Hydrocont HP4 SCS01V001V10RKA Hydrocont HP4 SCS03V001V10RKA
Hydrocont HP4 SCS01D001V10RKA Hydrocont HP4 SCS03D001V10RKA
Hydrocont HP4 SCS01V005V10RKA Hydrocont HP4 SCS03V005V10RKA
Hydrocont HP4 SCS01D005V10RKA Hydrocont HP4 SCS03D005V10RKA
Hydrocont HP4 SCS01V010V10RKA Hydrocont HP4 SCS03V010V10RKA
Hydrocont HP4 SCS01D010V10RKA Hydrocont HP4 SCS03D010V10RKA
Hydrocont HP4 SCS01V012V10RKA Hydrocont HP4 SCS03V012V10RKA
Hydrocont HP4 SCS01D012V10RKA Hydrocont HP4 SCS03D012V10RKA
Hydrocont HP4 SCS01V001V30RKA Hydrocont HP4 SCS03V001V30RKA
Hydrocont HP4 SCS01D001V30RKA Hydrocont HP4 SCS03D001V30RKA
Hydrocont HP4 SCS01V005V30RKA Hydrocont HP4 SCS03V005V30RKA
Hydrocont HP4 SCS01D005V30RKA Hydrocont HP4 SCS03D005V30RKA
Hydrocont HP4 SCS01V010V30RKA Hydrocont HP4 SCS03V010V30RKA
Hydrocont HP4 SCS01D010V30RKA Hydrocont HP4 SCS03D010V30RKA
Hydrocont HP4 SCS01V012V30RKA Hydrocont HP4 SCS03V012V30RKA
Hydrocont HP4 SCS01D012V30RKA Hydrocont HP4 SCS03D012V30RKA

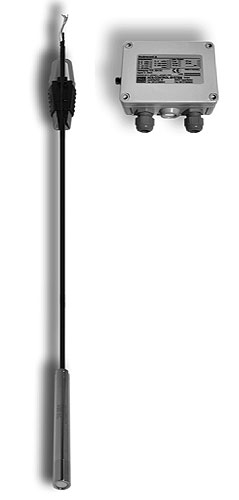

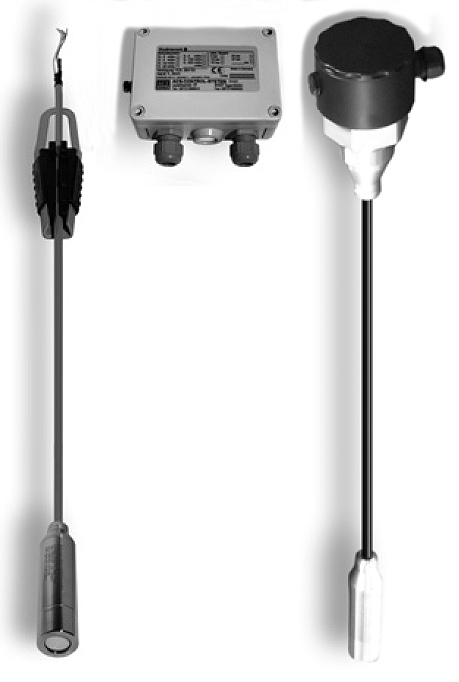

Hydrocont B

Hydrocont B

Made in Germany

Description

The device Hydrocont B with integrated analogue evaluation electronic is a compact sensor for continuous measurement of fill levels in liquid media. This includes e.g. the registration of levels in reservoirs, clarification basins, deep wells etc., but also the fill level measurement in closed containers. For applications, where food or drink water suitability is necessary, a corresponding put in variant can be ordered.

The excellent characteristics like highest strength against pressure and pressure blows, high resistance against chemicals and corrosion, very good insensitiveness against temperature shocks and EM interference, highest accuracy and long term stability and also low influence of temperature makes it possible to use the sensor in all containers for liquid medium like water, waste water, solvents, oil, sludge, grease, cleaning agents, etc. In addition to the level measurement the temperature of the medium can be measured by a Pt100 resistor, that is integrated in the sensor.

Function

The sensor of the fill level measurement system Hydrocont B is sunken down into the medium by the carrying cable and a suitable fastening, e.g. cable clamp fixing, screw plug or connection housing with process connection. The sensor can be alternatively directly mounted into the wall of the medium container by using a corresponding process connection.

The medium contacts directly the ceramic membrane of the sensor without using a pressure mediator liquid and causes there a deflection of the membrane because of the hydrostatic pressure of the medium.

At the maximum deflection the membrane contacts a robust ceramic carrier and because of this, the membrane come through over pressure of e.g. 40-times of nominal load at a sensor with a pressure range of 0-100 mbar without damage. The fill level proportional pressure signal of the ceramic membrane is measured by the integrated analogue electronic and converted into a output current signal of 4-20mA or into a pulse frequency modulated current signal (PFM) of 90-520 Hz.

The measurement signal range is fix adjusted by factory and cannot be adjusted by the customer. Because of this there are many different standard measurement ranges available. Additionally to this, the factory provided adjustment can be carried out by customer specification.

The output signal can be provided with an optional damping, e.g. to compensate wave movements due to mixing machines. To include the damping in the sensor, make a special note in the order.

Optionally a temperature dependent resistor Pt-100 in 3-wire-technic can be integrated in the sensor. By using this temperature measurement resistor a temperature measurement of the fill medium with removing the lead resistance can be realized in parallel. When using a wall housing a Pt-100 transmitter that is adjusted by customer specification can be integrated in this housing.

The sensor of the fill level measurement system Hydrocont B can furthermore equipped with an integrated over voltage protection, that protects the measuring system from destruction by e.g. atmospheric influences.

Standard-Variante 11,5 V bis 45 V DC
Ex-Variante 11,5 V bis 30 V DC
Restwelligkeit ≤ 2 Vss
Verzögerungszeit Ausgang T90 up to 100 mcs
Zulässige Füllguttemperatur -20°C bis +70°C
Max. Signalspannung 30V (Scheitelwert; gegen Erde)
Nennableitstoßstrom 2 500A (Welle 8/20µS)
Temperaturabweichung ≤ 0,1% / 10 K der Nennmessspanne
Kennlinienabweichung ≤ 0,1% / 0,2% der Nennmessspanne
Kalibrier-Abweichung ≤ 0,05% der Nennmessspanne
Langzeitdrift ≤ 0,1% / Jahr der Nennmessspanne
Speisespannungseinfluss ≤ 0,02% / 10V der Nennmessspanne
Auflösung Unendlich, da analoge Messelektronik
Membran Keramik Standard 96% or Keramik Hochrein 99,9%
Abhängesensor Stahl 1.4404
Verschlussschraube Stahl 1.4404
Dichtungen FPM (Viton) / EPDM / Neopren / Kalrez
Anschlussgehäuse Polyacetal POM (Delrin), Stahl 1.4404
Tragkabel PE/FEP
Wandaufbaugehäuse PC / PS
Abhängesensor IP68
Verschlussschraube / Anschlussgehäuse IP67
Wandaufbaugehäuse IP65

Examples of supplied versions: expand / close

Hydrocont BW0A00H011A Hydrocont B00A00H011A
Hydrocont BWSA00H011A Hydrocont B0SA00H011A
Hydrocont BW0T00H011A Hydrocont B00T00H011A
Hydrocont BWST00H011A Hydrocont B0ST00H011A
Hydrocont BW0AP0H011A Hydrocont B00AP0H011A
Hydrocont BWSAP0H011A Hydrocont B0SAP0H011A
Hydrocont BW0TP0H011A Hydrocont B00T0PH011A
Hydrocont BWSTP0H011A Hydrocont B0ST0PH011A
Hydrocont Ex1BW0A00H011A Hydrocont Ex1B00A00H011A
Hydrocont Ex1BWSA00H011A Hydrocont Ex1B0SA00H011A
Hydrocont Ex1BW0T00H011A Hydrocont Ex1B00T00H011A
Hydrocont Ex1BWST00H011A Hydrocont Ex1B0ST00H011A
Hydrocont Ex1BW0AP0H011A Hydrocont Ex1B00AP0H011A
Hydrocont Ex1BWSAP0H011A Hydrocont Ex1B0SAP0H011A
Hydrocont Ex1BW0TP0H011A Hydrocont Ex1B00T0PH011A
Hydrocont Ex1BWSTP0H011A Hydrocont Ex1B0ST0PH011A
Hydrocont Ex0BW0A00H011A Hydrocont Ex0B00A00H011A
Hydrocont Ex0BWSA00H011A Hydrocont Ex0B0SA00H011A
Hydrocont Ex0BW0T00H011A Hydrocont Ex0B00T00H011A
Hydrocont Ex0BWST00H011A Hydrocont Ex0B0ST00H011A
Hydrocont Ex0BW0AP0H011A Hydrocont Ex0B00AP0H011A
Hydrocont Ex0BWSAP0H011A Hydrocont Ex0B0SAP0H011A
Hydrocont Ex0BW0TP0H011A Hydrocont Ex0B00T0PH011A
Hydrocont Ex0BWSTP0H011A Hydrocont Ex0B0ST0PH011A

Hydrocont M

Hydrocont M

Made in Germany

Description

The fill level sensor Hydrocont M with integrated analogue evaluation electronic is a compact transmitter for continuous measuring of fill levels and temperatures in liquid media. This includes e.g. the measurement of levels in reservoirs, clarification basins, deep wells etc., but also the fill level measurement in closed containers.

For applications, where food or drink water suitability is necessary, a corresponding variant can be ordered.

Advantages

  • highest strength against pressure and pressure blows
  • high resistance against chemicals and corrosion
  • very good insensitiveness against temperature shocks and EM interference
  • highest accuracy and long term stability
  • also low influence of temperature makes

It is possible to use the fill level sensor Hydrocont M in various applications with liquid media like: water, waste water, solvents, oil, sludge, grease, cleaning agents, etc.

Besides the level measurement it is possible to get the temperature of the medium by an integrated Pt100 resistor in parallel with this sensor.

Function

The fill level sensor Hydrocont M is put into the medium by the carrying cable by using a suitable fixing e.g. cable clamp fixing, screw plug or connection housing.
The liquid medium contacts directly without using a pressure transferring liquid the ceramic membrane. There the liquid causes a deflection of the membrane because of the hydrostatic pressure of the medium. At the maximum deflection the membrane contacts a robust ceramic carrier. Because of this, the membrane come through over pressure of e.g. 25-times of nominal load at a sensor with a pressure range of 0…100 mbar without damage.
The filling level proportional hydrostatic pressure signal of the ceramic membrane is measured by the integrated analogue electronic and converted in a output current signal of 4 to 20mA.
The measurement signal range is adjusted by factory in many standard measurement ranges. A factory provided adjustment by customer specification is also possible.
Optionally a temperature dependent resistor Pt100 in 3-wire-technic can be integrated in the sensor. By this temperature measurement resistor a temperature measurement of the filling medium with removing the lead resistance can be realized in parallel to the filling level measurement. When using a wall mounting connection housing a Pt100 transmitter that is adjusted by customer specification can be integrated.
Integrated over voltage protection components prevents the filling level sensor from destruction by atmospheric influences like e.g. thunderstrike.

Ausgang 4 bis 20 mA, 2-Draht
Ausgangssignal Strom 4…20mA 11 V bis 45 V DC
Ausgangssignal Strom 0…10V 14 V bis 30 V DC
Ex-Variante 12,5 V bis 25,2 V DC
Restwelligkeit ≤ 2 Vss
Verzögerungszeit Ausgang T90
Zulässige Füllguttemperatur -20°C bis +70°C
Max. Signalspannung 30V (Scheitelwert; gegen Erde)
Nennableitstoßstrom 2 500A (Welle 8/20µS)
Temperaturabweichung ≤ 0,15% / 10 K der Nennmessspanne
Kennlinienabweichung ≤ 0,1% / 0,25% der Nennmessspanne
Kalibrier-Abweichung ≤ 0,05% der Nennmessspanne
Langzeitdrift ≤ 0,15% / Jahr der Nennmessspanne
Speisespannungseinfluss ≤ 0,02% / 10V der Nennmessspanne
Auflösung Unendlich, da analoge Messelektronik
Membran Keramik Standard AL 96%
Abhängesensor Stahl 1.4404
Verschlussschraube Stahl 1.4404
Dichtungen FPM (Viton) / EPDM / Neopren
Anschlussgehäuse Polyacetal POM (Delrin), Stahl 1.4404
Tragkabel PE / PUR
Abhängesensor IP68
Verschlussschraube / Anschlussgehäuse IP67
Wandaufbaugehäuse IP65

Examples of supplied versions: expand / close

Hydrocont M W0S020P011A Hydrocont Ex0M W0S020P011A
Hydrocont Ex1M W0S020P011A Hydrocont M 00S020P011A
Hydrocont Ex0M 00S020P011A Hydrocont Ex1M 00S020P011A
Hydrocont M WSS020P011A Hydrocont Ex0M WSS020P011A
Hydrocont Ex1M WSS020P011A Hydrocont M 0SS020P011A
Hydrocont Ex0M 0SS020P011A Hydrocont Ex1M 0SS020P011A
Hydrocont M WUS020P011A Hydrocont Ex0M WUS020P011A
Hydrocont Ex1M WUS020P011A Hydrocont M 0US020P011A
Hydrocont Ex0M 0US020P011A Hydrocont Ex1M 0US020P011A
Hydrocont M WWS020P011A Hydrocont Ex0M WWS020P011A
Hydrocont Ex1M WWS020P011A Hydrocont M 0WS020P011A
Hydrocont Ex0M 0WS020P011A Hydrocont Ex1M 0WS020P011A
Hydrocont M WTS020P011A Hydrocont Ex0M WTS020P011A
Hydrocont Ex1M WTS020P011A Hydrocont M 0TS020P011A
Hydrocont Ex0M 0TS020P011A Hydrocont Ex1M 0TS020P011A
Hydrocont M WGS020P011A Hydrocont Ex0M WGS020P011A
Hydrocont Ex1M WGS020P011A Hydrocont M 0GS020P011A
Hydrocont Ex0M 0GS020P011A Hydrocont Ex1M 0GS020P011A
Hydrocont M W8S020P011A Hydrocont Ex0M W8S020P011A
Hydrocont Ex1M W8S020P011A Hydrocont M 08S020P011A
Hydrocont Ex0M 08S020P011A Hydrocont Ex1M 08S020P011A
Hydrocont M W9S020P011A Hydrocont Ex0M W9S020P011A
Hydrocont Ex1M W9S020P011A Hydrocont M 09S020P011A
Hydrocont Ex0M 09S020P011A Hydrocont Ex1M 09S020P011A
Hydrocont M W0T020P011A Hydrocont Ex0M W0T020P011A
Hydrocont Ex1M W0T020P011A Hydrocont M 00T020P011A
Hydrocont Ex0M 00T 020P011A Hydrocont Ex1M 00T020P011A
Hydrocont M WST020P011A Hydrocont Ex0M WST020P011A
Hydrocont Ex1M WST020P011A Hydrocont M 0ST020P011A
Hydrocont Ex0M 0ST020P011A Hydrocont Ex1M 0ST020P011A
Hydrocont M WUT020P011A Hydrocont Ex0M WUT020P011A
Hydrocont Ex1M WUT020P011A Hydrocont M 0UT020P011A
Hydrocont Ex0M 0UT020P011A Hydrocont Ex1M 0UT020P011A
Hydrocont M WWT020P011A Hydrocont Ex0M WWT020P011A
Hydrocont Ex1M WWT020P011A Hydrocont M 0WT020P011A
Hydrocont Ex0M 0WT020P011A Hydrocont Ex1M 0WT020P011A
Hydrocont M WTT020P011A Hydrocont Ex0M WTT020P011A
Hydrocont Ex1M WTT020P011A Hydrocont M 0TT020P011A
Hydrocont Ex0M 0TT020P011A Hydrocont Ex1M 0TT020P011A
Hydrocont M WGT020P011A Hydrocont Ex0M WGT020P011A
Hydrocont Ex1M WGT020P011A Hydrocont M 0GT020P011A
Hydrocont Ex0M 0GT020P011A Hydrocont Ex1M 0GT020P011A
Hydrocont M W8T020P011A Hydrocont Ex0M W8T020P011A
Hydrocont Ex1M W8T020P011A Hydrocont M 08T020P011A
Hydrocont Ex0M 08T020P011A Hydrocont Ex1M 08T020P011A
Hydrocont M W9T020P011A Hydrocont Ex0M W9T020P011A
Hydrocont Ex1M W9T020P011A Hydrocont M 09T020P011A
Hydrocont Ex0M 09T020P011A Hydrocont Ex1M 09T020P011A
Hydrocont M W0R020P011A Hydrocont Ex0M W0R020P011A
Hydrocont Ex1M W0R020P011A Hydrocont M 00R020P011A
Hydrocont Ex0M 00R020P011A Hydrocont Ex1M 00R020P011A
Hydrocont M WSR020P011A Hydrocont Ex0M WSR020P011A
Hydrocont Ex1M WSR020P011A Hydrocont M 0SR020P011A
Hydrocont Ex0M 0SR020P011A Hydrocont Ex1M 0SR020P011A
Hydrocont M WUR020P011A Hydrocont Ex0M WUR020P011A
Hydrocont Ex1M WUR020P011A Hydrocont M 0UR020P011A
Hydrocont Ex0M 0UR020P011A Hydrocont Ex1M 0UR020P011A
Hydrocont M WWR020P011A Hydrocont Ex0M WWR020P011A
Hydrocont Ex1M WWR020P011A Hydrocont M 0WR020P011A
Hydrocont Ex0M 0WR020P011A Hydrocont Ex1M 0WR020P011A
Hydrocont M WTR020P011A Hydrocont Ex0M WTR020P011A
Hydrocont Ex1M WTR020P011A Hydrocont M 0TR020P011A
Hydrocont Ex0M 0TR020P011A Hydrocont Ex1M 0TR020P011A
Hydrocont M WGR020P011A Hydrocont Ex0M WGR020P011A
Hydrocont Ex1M WGR020P011A Hydrocont M 0GR020P011A
Hydrocont Ex0M 0GR020P011A Hydrocont Ex1M 0GR020P011A
Hydrocont M W8R020P011A Hydrocont Ex0M W8R020P011A
Hydrocont Ex1M W8R020P011A Hydrocont M 08R020P011A
Hydrocont Ex0M 08R020P011A Hydrocont Ex1M 08R020P011A
Hydrocont M W9R020P011A Hydrocont Ex0M W9R020P011A
Hydrocont Ex1M W9R020P011A Hydrocont M 09R020P011A
Hydrocont Ex0M 09R020P011A Hydrocont Ex1M 09R020P011A

Sonicont USG2Sonicont USF2

Sonicont USG2
Sonicont USF2

Made in Germany

Description

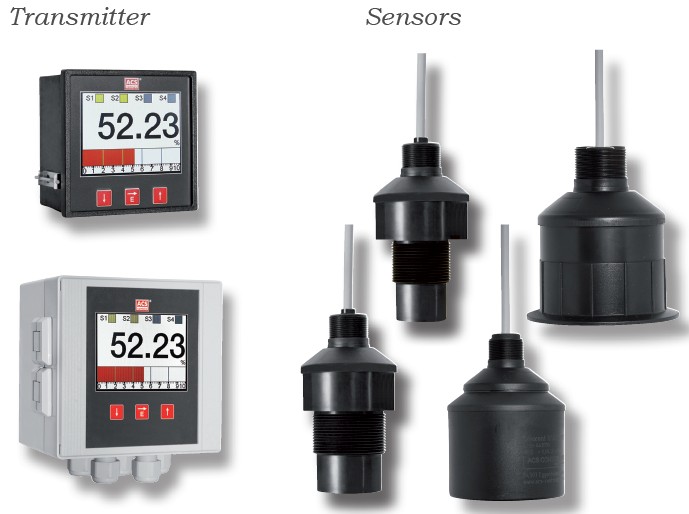

With the Sonicont USF2 and USG2 an ultrasonic level transmitter remote version for non-contact level measurement of fluids, pastes and coarse bulk materials before. By long life, easy installation and less maintenance, the ultrasonic measuring system is a proven and cost-effective solution.

Combined with up to 4 freely adjustable switching points and suitable for measuring ranges up to 8m in liquids and up to 3.5 m in bulk materials (on request up to 25m in liquids and up to 12m in solids), this sensor can be used for various measuring tasks for volume linear display in all container types – and with an accuracy of 0.2% and ≤ 2 mm. In addition, the analog output 0 (4) … 20 mA and 0 .. 10V is switchable. The modern transmitter has extensive diagnostic functions for system analysis and still allows easy setup and operation by clear menu guidance.

Besides level measurements the Sonicont USG2 and USF2 is able for measurement of flow rates and currents. The mathematical formulas are already stored in the device. The sensor Sonicont USG2 can be installed up to 300m from the transmitter Sonicont USF2 and has IP65/IP68 protection. The 2 „TFT color display of the Sonicont USF2 provides an excellent representation of the measured values and easy readability. Intelligent data management enables the Sonicont USF2 to record measured values through the Bluetooth® interface and a built-in data logger function.

Function

For measurements in liquids and solids non-contact level measurement with ultrasound is a proven and cost-effective method. The lack of contact with the medium ensures a long service life and thus a permanent and reliable measurement.

Versorgungsspannung Versorgt durch Messumformer Sonicont USF2
Distanz Signal Analoges Spannungs-/Pulssignal
Temperatur Signal Analoges Spannungssignal
USG2 020 ≤ 2m
USG2 050 ≤ 5m
USG2 080 ≤ 8m
USG2 150 ≤ 15m
USG2 250 ≤ 25m
Prozesstemperatur -40°C…+85°C
Prozessdruck -0,3 bar … 2 bar
Sensor PVDF
Prozessanschluss PVDF / PVDF / PBT Valox (bei Messbereich 250)
Sensorrückseite (Verguss) PE
Anschlusskabel TPE-U
Umgebungstemperatur -40°C…+85°C
Schutzart IP65/IP68
Klimaklasse 4K4H (EN/IEC 60721-3-4)
Stoßfestigkeit 15g [11ms] (EN/IEC 60068-2-27)
Schwingungsfestigkeit 4g [10…2000Hz] (EN/IEC 60068-2-6)
EM – Verträglichkeit Betriebsmittel Klasse B / Industriebereich (EN/IEC 61326)
Gewicht Sensor 0,5 ... 0,9 kg)

Examples of supplied versions: expand / close

Sonicont USG2 02000G1500P0B10 Sonicont USG2 05000G1500P0B10
Sonicont USG2 08000G1500P0B10 Sonicont USG2 15000G1500P0B10
Sonicont USG2 25000G1500P0B10 Sonicont USG2 02010G1500P0B10
Sonicont USG2 05010G1500P0B10 Sonicont USG2 08010G1500P0B10
Sonicont USG2 15010G1500P0B10 Sonicont USG2 25010G1500P0B10
Sonicont USG2 02000G2000P0B10 Sonicont USG2 05000G2000P0B10
Sonicont USG2 08000G2000P0B10 Sonicont USG2 15000G2000P0B10
Sonicont USG2 25000G2000P0B10 Sonicont USG2 02010G2000P0B10
Sonicont USG2 05010G2000P0B10 Sonicont USG2 08010G2000P0B10
Sonicont USG2 15010G2000P0B10 Sonicont USG2 25010G2000P0B10
Sonicont USG2 02000G3200P0B10 Sonicont USG2 05000G3200P0B10
Sonicont USG2 08000G3200P0B10 Sonicont USG2 15000G3200P0B10
Sonicont USG2 25000G3200P0B10 Sonicont USG2 02010G3200P0B10
Sonicont USG2 05010G3200P0B10 Sonicont USG2 08010G3200P0B10
Sonicont USG2 15010G3200P0B10 Sonicont USG2 25010G3200P0B10
Sonicont USG2 02000G1500P0S10 Sonicont USG2 05000G1500P0S10
Sonicont USG2 08000G1500P0S10 Sonicont USG2 15000G1500P0S10
Sonicont USG2 25000G1500P0S10 Sonicont USG2 02010G1500P0S10
Sonicont USG2 05010G1500P0S10 Sonicont USG2 08010G1500P0S10
Sonicont USG2 15010G1500P0S10 Sonicont USG2 25010G1500P0S10
Sonicont USG2 02000G2000P0S10 Sonicont USG2 05000G2000P0S10
Sonicont USG2 08000G2000P0S10 Sonicont USG2 15000G2000P0S10
Sonicont USG2 25000G2000P0S10 Sonicont USG2 02010G2000P0S10
Sonicont USG2 05010G2000P0S10 Sonicont USG2 08010G2000P0S10
Sonicont USG2 15010G2000P0S10 Sonicont USG2 25010G2000P0S10
Sonicont USG2 02000G3200P0S10 Sonicont USG2 05000G3200P0S10
Sonicont USG2 08000G3200P0S10 Sonicont USG2 15000G3200P0S10
Sonicont USG2 25000G3200P0S10 Sonicont USG2 02010G3200P0S10
Sonicont USG2 05010G3200P0S10 Sonicont USG2 08010G3200P0S10
Sonicont USG2 15010G3200P0S10 Sonicont USG2 25010G3200P0S10
Sonicont USG2 02000G1500P0B20 Sonicont USG2 05000G1500P0B20
Sonicont USG2 08000G1500P0B20 Sonicont USG2 15000G1500P0B20
Sonicont USG2 25000G1500P0B20 Sonicont USG2 02020G1500P0B20
Sonicont USG2 05020G1500P0B20 Sonicont USG2 08020G1500P0B20
Sonicont USG2 15020G1500P0B20 Sonicont USG2 25020G1500P0B20
Sonicont USG2 02000G2000P0B20 Sonicont USG2 05000G2000P0B20
Sonicont USG2 08000G2000P0B20 Sonicont USG2 15000G2000P0B20
Sonicont USG2 25000G2000P0B20 Sonicont USG2 02020G2000P0B20
Sonicont USG2 05020G2000P0B20 Sonicont USG2 08020G2000P0B20
Sonicont USG2 15020G2000P0B20 Sonicont USG2 25020G2000P0B20
Sonicont USG2 02000G3200P0B20 Sonicont USG2 05000G3200P0B20
Sonicont USG2 08000G3200P0B20 Sonicont USG2 15000G3200P0B20
Sonicont USG2 25000G3200P0B20 Sonicont USG2 02020G3200P0B20
Sonicont USG2 05020G3200P0B20 Sonicont USG2 08020G3200P0B20
Sonicont USG2 15020G3200P0B20 Sonicont USG2 25020G3200P0B20
Sonicont USG2 02000G1500P0S20 Sonicont USG2 05000G1500P0S20
Sonicont USG2 08000G1500P0S20 Sonicont USG2 15000G1500P0S20
Sonicont USG2 25000G1500P0S20 Sonicont USG2 02020G1500P0S20
Sonicont USG2 05020G1500P0S20 Sonicont USG2 08020G1500P0S20
Sonicont USG2 15020G1500P0S20 Sonicont USG2 25020G1500P0S20
Sonicont USG2 02000G2000P0S20 Sonicont USG2 05000G2000P0S20
Sonicont USG2 08000G2000P0S20 Sonicont USG2 15000G2000P0S20
Sonicont USG2 25000G2000P0S20 Sonicont USG2 02020G2000P0S20
Sonicont USG2 05020G2000P0S20 Sonicont USG2 08020G2000P0S20
Sonicont USG2 15020G2000P0S20 Sonicont USG2 25020G2000P0S20
Sonicont USG2 02000G3200P0S20 Sonicont USG2 05000G3200P0S20
Sonicont USG2 08000G3200P0S20 Sonicont USG2 15000G3200P0S20
Sonicont USG2 25000G3200P0S20 Sonicont USG2 02020G3200P0S20
Sonicont USG2 05020G3200P0S20 Sonicont USG2 08020G3200P0S20
Sonicont USG2 15020G3200P0S20 Sonicont USG2 25020G3200P0S20
Sonicont USF2 0FA00S Sonicont USF2 XFA00S
Sonicont USF2 0MA00S Sonicont USF2 XMA00S
Sonicont USF2 0PA00S Sonicont USF2 XPA00S
Sonicont USF2 0FB00S Sonicont USF2 XFB00S
Sonicont USF2 0MB00S Sonicont USF2 XMB00S
Sonicont USF2 0PB00S Sonicont USF2 XPB00S
Sonicont USF2 0FD00S Sonicont USF2 XFD00S
Sonicont USF2 0MD00S Sonicont USF2 XMD00S
Sonicont USF2 0PD00S Sonicont USF2 XPD00S
Sonicont USF2 0FS00S Sonicont USF2 XFS00S
Sonicont USF2 0MS00S Sonicont USF2 XMS00S
Sonicont USF2 0PS00S Sonicont USF2 XPS00S
Sonicont USF2 0FT00S Sonicont USF2 XFT00S
Sonicont USF2 0MT00S Sonicont USF2 XMT00S
Sonicont USF2 0PT00S Sonicont USF2 XPT00S
Sonicont USF2 0FU00S Sonicont USF2 XFU00S
Sonicont USF2 0MU00S Sonicont USF2 XMU00S
Sonicont USF2 0PU00S Sonicont USF2 XPU00S
Sonicont USF2 0FA10S Sonicont USF2 XFA10S
Sonicont USF2 0MA10S Sonicont USF2 XMA10S
Sonicont USF2 0PA10S Sonicont USF2 XPA10S
Sonicont USF2 0FB10S Sonicont USF2 XFB10S
Sonicont USF2 0MB10S Sonicont USF2 XMB10S
Sonicont USF2 0PB10S Sonicont USF2 XPB10S
Sonicont USF2 0FD10S Sonicont USF2 XFD10S
Sonicont USF2 0MD10S Sonicont USF2 XMD10S
Sonicont USF2 0PD10S Sonicont USF2 XPD10S
Sonicont USF2 0FS10S Sonicont USF2 XFS10S
Sonicont USF2 0MS10S Sonicont USF2 XMS10S
Sonicont USF2 0PS10S Sonicont USF2 XPS10S
Sonicont USF2 0FT10S Sonicont USF2 XFT10S
Sonicont USF2 0MT10S Sonicont USF2 XMT10S
Sonicont USF2 0PT10S Sonicont USF2 XPT10S
Sonicont USF2 0FU10S Sonicont USF2 XFU10S
Sonicont USF2 0MU10S Sonicont USF2 XMU10S
Sonicont USF2 0PU10S Sonicont USF2 XPU10S

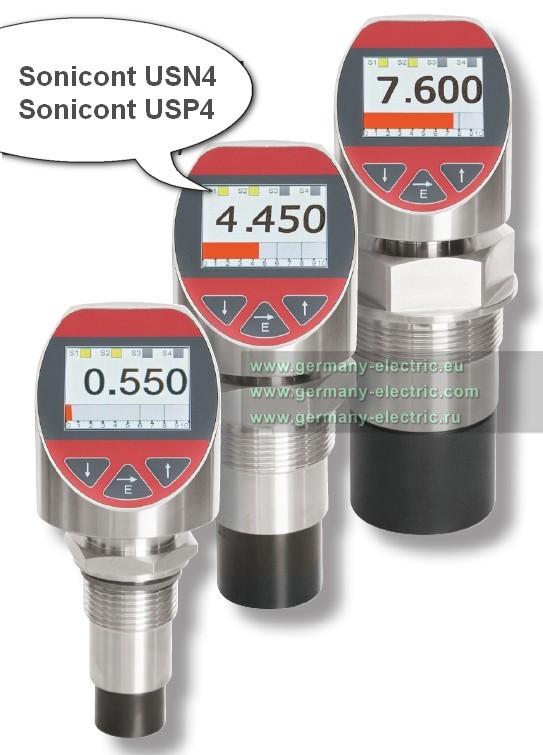

Sonicont USN4Sonicont USP4

Sonicont USN4
Sonicont USP4

Made in Germany

Description

The ultrasonic sensor Sonicont USN4 is an electronic level transmitter / level switch for monitoring, control as well as continuous measurement of filling levels in liquids, pastes and coarse bulk materials. Additional application fields are volume or flow measurement. The software was optimized and extended by a new algorithm. The Sonictrack is a better algorithm for the detection of ultrasonic signals. Thus interference signals e.g. agitators etc. can be recognized even better and thus a safe operation can be ensured.

Advantages

  • measuring ranges of 2m / 5m / 8m
  • process temperatures from –40°C to +85°C
  • process materials PVDF / CrNi-steel / EPDM
  • availability of extensive equipment
  • functionality predefined vessel types for fast commissioning
  • predefined linearization curves for volume and flow measurement
  • integrated error signal suppression for adaption the installation situation
  • integrated compensation of the process temperature
  • limit value function for two-point control
  • pump control function
  • impulse output function for quantity counter
  • error indication function for error monitoring

Application

  • for level and volume measurement and flow measurement at open channels
  • measuring weirs for water and waste water sector
  • process industry
  • environmental technology
  • storage tanks, storage bunkers, silos

The ultrasonic sensor Sonicont USN4 is suitable for demanding measuring requirements.
Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications.
The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether low temperatures when used outdoors, high shock and vibration or aggressive media.
A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.

A LABS-free resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or factory certifications for drink water resp. food suitability. Customer specific special versions can be realized on request, e.g. software adaption (menu navigation, special functions, etc.), changed terminal assignment resp. connector orientation, design adaption of the user surface, special designs for the process connection.

Function

For measurements in liquids and bulk solids, non-contact level measurement with ultrasound is a proven and cost-effective method. The lack of contact with the medium ensures a long service life and thus a permanently reliable measurement.

(0)4…20mA 9…30 V DC
0…10V 14…30 V DC
Stromaufnahme ≤ 50mA bis ≤ 100mA
Bereitschaftszeit ≤ 1s
Strom 0…20mA 0…20,5mA, max. 22mA
Strom 4…20mA 3,8…20,5mA, min. 3,6mA, max. 22mA
Spannung 0…10V 0…10,5V, max. 11V
Funktion PNP-schaltend auf +L
Ausgangsstrom 0 bis ≤ 200mA strombegrenzt, kurzschlussfest
Kennlinienabweichung ≤ ±2mm oder ±0,2% des eingestellten Messbereichs
Temperaturabweichung ≤ ±0,006% FS / K
Sensor PVDF
Prozessanschluss Stahl 1.4404/316L or Stahl 1.4571/316Ti
Dichtungen EPDM – Ethylen-Propylen-Dienmonomer FPM – Fluorelastomer
Anschlussgehäuse CrNi-Stahl
Bedienoberfläche PES
Elektrisches Anschlusselement Gerätestecker PUR
Druckausgleichselement Acrylopolymer
Umgebungstemperatur -20°C bis +70°C
Prozesstemperaturen -40°C bis +85°C
Prozessdruckbereiche -0,3bar bis +2bar
Schutzart IP65/IP67 (EN/IEC 60529)

Examples of supplied versions: expand / close

Sonicont USN4S PS53VC02M0000C Sonicont USN4S PS73VC02M0000C
Sonicont USN4S PSD3VC02M0000C Sonicont USN4S PS53VC05M0000C
Sonicont USN4S PS73VC05M0000C Sonicont USN4S PSD3VC05M0000C
Sonicont USN4S PS53VC08M0000C Sonicont USN4S PS73VC08M0000C
Sonicont USN4S PSD3VC08M0000C Sonicont USN4S PS53VC02K0000C
Sonicont USN4S PS73VC02K0000C Sonicont USN4S PSD3VC02K0000C
Sonicont USN4S PS53VC05K0000C Sonicont USN4S PS73VC05K0000C
Sonicont USN4S PSD3VC05K0000C Sonicont USN4S PS53VC08K0000C
Sonicont USN4S PS73VC08K0000C Sonicont USN4S PSD3VC08K0000C
Sonicont USN4S PS53VC02R0000C Sonicont USN4S PS73VC02R0000C
Sonicont USN4S PSD3VC02R0000C Sonicont USN4S PS53VC05R0000C
Sonicont USN4S PS73VC05R0000C Sonicont USN4S PSD3VC05R0000C
Sonicont USN4S PS53VC08R0000C Sonicont USN4S PS73VC08R0000C
Sonicont USN4S PSD3VC08R0000C Sonicont USN4S PS53VC02M1000C
Sonicont USN4S PS73VC02M1000C Sonicont USN4S PSD3VC02M1000C
Sonicont USN4S PS53VC05M1000C Sonicont USN4S PS73VC05M1000C
Sonicont USN4S PSD3VC05M1000C Sonicont USN4S PS53VC08M1000C
Sonicont USN4S PS73VC08M1000C Sonicont USN4S PSD3VC08M1000C
Sonicont USN4S PS53VC02K1000C Sonicont USN4S PS73VC02K1000C
Sonicont USN4S PSD3VC02K1000C Sonicont USN4S PS53VC05K1000C
Sonicont USN4S PS73VC05K1000C Sonicont USN4S PSD3VC05K1000C
Sonicont USN4S PS53VC08K1000C Sonicont USN4S PS73VC08K1000C
Sonicont USN4S PSD3VC08K1000C Sonicont USN4S PS53VC02R1000C
Sonicont USN4S PS73VC02R1000C Sonicont USN4S PSD3VC02R1000C
Sonicont USN4S PS53VC05R1000C Sonicont USN4S PS73VC05R1000C
Sonicont USN4S PSD3VC05R1000C Sonicont USN4S PS53VC08R1000C
Sonicont USN4S PS73VC08R1000C Sonicont USN4S PSD3VC08R1000C
Sonicont USP4 SPSU0G002A5000Kx Sonicont USP4 SPSU0G005A5000K0
Sonicont USP4 SPSU0G008A5000K0 Sonicont USP4 SPSU0G002A5000H0
Sonicont USP4 SPSU0G005A5000H0 Sonicont USP4 SPSU0G008A5000H0
Sonicont USP4 SPSU0G002A500000 Sonicont USP4 SPSU0G005A500000
Sonicont USP4 SPSU0G008A500000 Sonicont USP4 SPSU0G002A5000S0
Sonicont USP4 SPSU0G005A5000S0 Sonicont USP4 SPSU0G008A5000S0
Sonicont USP4 SPSU0G002A5000KA Sonicont USP4 SPSU0G005A5000KA
Sonicont USP4 SPSU0G008A5000KA Sonicont USP4 SPSU0G002A5000HA
Sonicont USP4 SPSU0G005A5000HA Sonicont USP4 SPSU0G008A5000HA
Sonicont USP4 SPSU0G002A50000A Sonicont USP4 SPSU0G005A50000A
Sonicont USP4 SPSU0G008A50000A Sonicont USP4 SPSU0G002A5000SA
Sonicont USP4 SPSU0G005A5000SA Sonicont USP4 SPSU0G008A5000SA
Sonicont USP4 SPSU0G002A5000KB Sonicont USP4 SPSU0G005A5000KB
Sonicont USP4 SPSU0G008A5000KB Sonicont USP4 SPSU0G002A5000HB
Sonicont USP4 SPSU0G005A5000HB Sonicont USP4 SPSU0G008A5000HB
Sonicont USP4 SPSU0G002A50000B Sonicont USP4 SPSU0G005A50000B
Sonicont USP4 SPSU0G008A50000B Sonicont USP4 SPSU0G002A5000SB
Sonicont USP4 SPSU0G005A5000SB Sonicont USP4 SPSU0G008A5000SB

Radarcont RU4SR

Radarcont RU4SR

Made in Germany

Description

The radar sensor RADARCONT RU4SR is an electronic radar distance sensor for continuous measurement of levels in liquid media. The RADARCONT RU4SR uses a pulsed FMCW (Frequency Modulated Continuous Wave) radar and detects the distance to stationary objects without contact.

The radar sensor periodically emits a radar signal with a linear ascending and descending frequency. The rate of change of frequency over time is constant. Objects in the detection range reflect the emitted signal. The distance to the object is determined by the delay shift and the deviating frequency of the reflected signal.
The radar sensor RADARCONT RU4SR is suitable for applications in almost all industrial areas, optimal for use in tanks up to 10 m.
The narrow opening angle reduces interference from foreign objects or fixtures in particular.

It is recommended for applications in which optical or ultrasonic sensors are unsuitable due to interfering factors such as temperature, gas or vapor stratification, positive or negative pressure or vacuum, dust, wind or incidence of light.

Depending on the type of application, radar technology allows:

– Measurement of liquids, even with gas stratification (e.g. ammonia) or foam formation
– Measurement of bulk materials (from a DK value of 4)
– Measurement through the container wall, e.g. IPC container or through protective window, e.g. PTFE or PP

When level measurements with ultrasound reach their limits, our RADARCONT is the right sensor. Our 122 GHz radar sensor has a very good signal focus and is insensitive to contamination and temperature fluctuations.

Sensortyp FMCW-Radar, gepulst
Frequenzbereich 122 – 123GHz
Messbereich ≤ 0,3 bis ≥ 10m (FSI)
Auflösung ≤ 1mm
Öffnungswinkel [04-9]: 10° / [04-8]: 8° / [04-5]: 8°
Pulsrate ≥ 10Hz / ≤ 100ms
Ausgangssignal RS485 Modbus-RTU, IO-Link, Strom 4-20mA, Schalter PP
Betriebsspannung 6/9 bis 35V DC
Wiederholgenauigkeit ≤ ±2mm
Prozessanschluss Gewinde ISO 228-1: G 1“, G ¾“, G ½“
Umgebungstemperatur -40°C bis +85°C (-40°F bis 185°F)
Schutzart IP69K/IP67 (EN/IEC 60529)

Examples of supplied versions: expand / close

Radarcont RU4 SRS9VS Radarcont RU4 SRS8VS
Radarcont RU4 SRS5VS Radarcont RU4 SRS9LS
Radarcont RU4 SRS8LS Radarcont RU4 SRS5LS
