Inrush Current Limiter CAMTEC

CAMTEC

CAMTEC engineers and manufactures Switch Mode Power Supplies SMPS and assemblies for the Automation Sector, Machine Building and Electronics Industry. The product range comprises AC/DC Power and DC/DC Converter for DIN-Rail, Chassis Mount, Open Frame and Rack Mount Power. Camtec fabricates Programmable DIN-Rail Power Supplies for the Test Automation, similar to a Laboratory Power Supply.

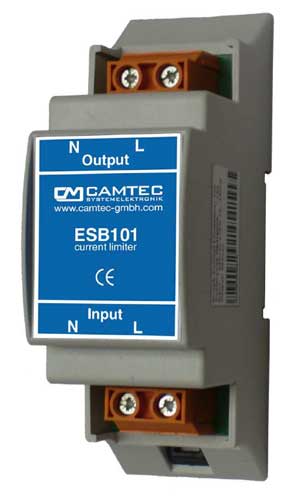

ESB101

ESB101

Made in Germany

Inrush current limiters ESB101 available for inductive and For ensuring reliability and service life of electrical equipment requires a constant load. The device is available in several versions. Minimum order is 10-15 pieces. The ESB101 current limiter is an ideal solution to the problem of saving the cost of LED lighting technology. It precisely limits the switching current. Circuit breakers are automatically connected to each power source. A lower inrush current allows the use of cables with a smaller cross-section. The cost of installing LED lighting is reduced by about 70% compared with conventional installation. Special version for LED lighting - ESB101.LED.230Vac

Model ESB101.05UPS ESB101.16 ESB101.23 ESB101.23S ESB101.33
Limiting Peak Current 5A 16A 23A 23A 33A
Limiting RMS Current 3,5A 11,3A 16,3A 16,3A 23,3A
Smallest MCB usable A2A B4A B6A B8A B13A
AC Voltage 184...265 184...265 184...265 184...265 184...265
Price per unit 57 Euro 35 Euro 53 Euro 53 Euro 55 Euro
Minimum order 15 pcs 15 pcs 15 pcs 15 pcs 15 pcs

Model ESB101.LED.230Vac ESB101.LED.115Vac ESB101.23S.115Vac
Limiting Peak Current 48A 43A 23A
Limiting RMS Current 33,9A 30,4A 16,3A
Smallest MCB usable B13A B13A B6A
AC Voltage 184...265 90...130V 90...130
Price per unit 35 Euro 66 Euro 69 Euro
Minimum order 15 pcs 15 pcs 15 pcs

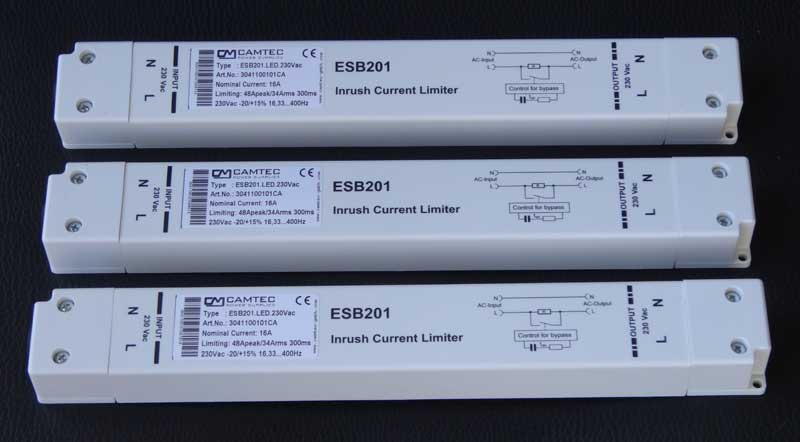

ESB201.LED.230Vac

ESB201.LED.230Vac

Мин. заказ 10 шт

Made in Germany

Inrush current limiters ESB201.LED.230Vac in a flat rectangular housing for wall or ceiling mounting are designed for LED lighting with different power levels and are used to limit inrush current and, accordingly, to increase the reliability and service life of electrical equipment. Minimum order of 10 pieces.

Modell ESB201.LED.230Vac ESB201.LED.115Vac
Limiting Peak Current 48A 43A
Limiting RMS Currentt 33,9A30,4A
Circuit Breaker MCB B13A to B16A B13A to B16A
Input Voltage 184... 265Vac 16 1/3... 440Hz 90...130Vac 16 1/3... 440Hz
Continous Current 16A 16A

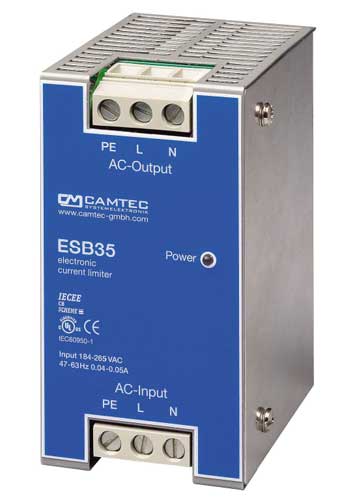

ESB00351

ESB00351

Made in Germany

Inrush current limiters ESB00351 are designed for inductive and capacitive loads with different capacities and are used in automation systems and LED lighting to limit inrush current and, accordingly, to increase the reliability and service life of electrical equipment.

Model ESB00351.T
Limiting Peak Current 35A
Limiting RMS Current24,8A
Circuit Breaker MCB B13A to B30A
AC Voltage 184... 265Vac
AC Continuous Current 30A

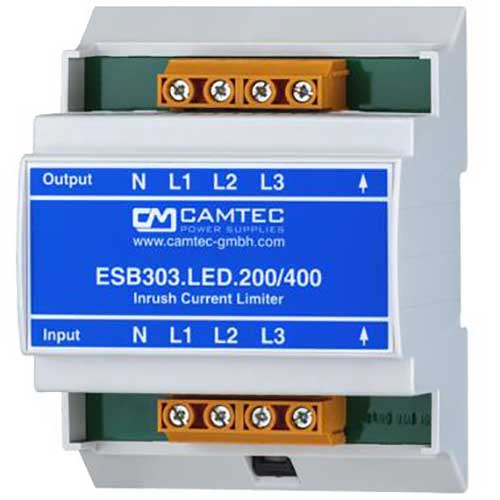

ESB303.LED.200/400three channel

ESB303.LED.200/400
three channel

Made in Germany

Three-channel inrush current limiters ESB303.LED.200 / 400 are designed as a 3-channel limiter for single-phase 200-240V networks or as a 3-phase limiter for 3-phase inductive and capacitive loads with different capacities. ESB303 is a 3 limiter acting in parallel, which allows you to connect 3 different AC networks with currents up to 16A (each line is limited separately). ESB303 can operate as a three-phase limiter in a 3x400 VAC network. They are used in automation systems and LED lighting to limit inrush current and, accordingly, to increase the reliability and service life of electrical equipment.

Modell ESB303.LED.200/400
Limiting Peak Current 3x 48A
Limiting RMS Currentt 3x 33,9A
Circuit Breaker MCB 3x B13A to B16A
 AC Voltage 1-3x 1Ph 200...240Vac+N / 2-3Ph 400Vac+N 16 1/3... 440Hz
AC Continuous Current 3x 16A

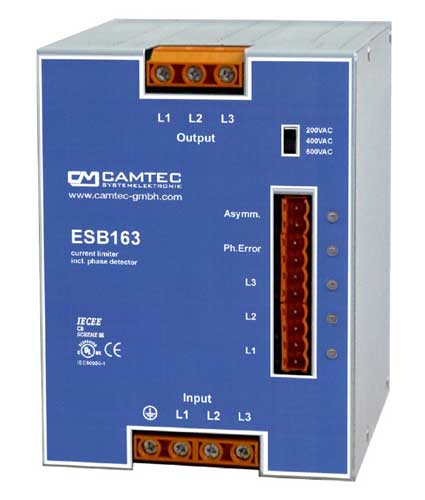

ESB00163three-phase

ESB00163
three-phase

Made in Germany

Inrush current limiters ESB00163 are designed for three-phase inductive and capacitive loads with different capacities and are used in automation systems and LED lighting to limit inrush current and, accordingly, to increase the reliability and service life of electrical equipment.

Model ESB00163A.T ESB00163B.T
Limiting Peak Current 3x 22,6A3x 22,6A
Limiting RMS Current 3x 16A 3x 16A
AC Voltage 2-3x 170... 575Vac 50/60Hz 2-3x 170... 460Vac 50/60Hz
Circuit Beaker MCB 3x B6A to B16A 3x B6A to B16A
AC Continuous Curren 3x 16A 3x 16A

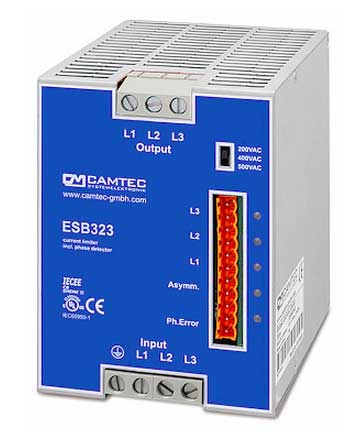

ESB00323three-phase

ESB00323
three-phase

Made in Germany

Inrush current limiters ESB00323 are designed for three-phase inductive and capacitive loads with different capacities and are used in automation systems and LED lighting to limit inrush current and, accordingly, to increase the reliability and service life of electrical equipment.

Model ESB00323A.T ESB00323B.T
Limiting Peak Current 3x 68,6A 3x 69,6A
Limiting RMS Current 3x 48A 3x 48A
AC Voltage 2-3x 170... 575Vac 50/60Hz 2-3x 170... 460Vac 50/60Hz
Circuit Breaker MCB 3x B16A to 32A 3x B16A to 32A
AC Continuous Curren 3x 32A 3x 32A
