Controllers JUMO

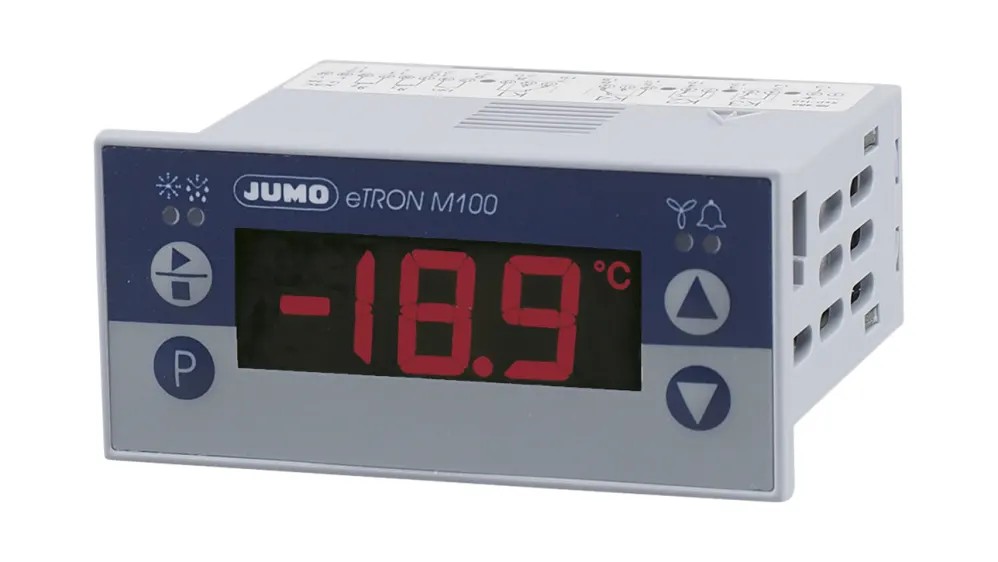

The JUMO eTRON M100 is an electronic cooling controller for use in cold-storage rooms, display refrigerators, or refrigerating counters to be connected to RTD temperature probes. The first measurement input acquires the temperature of the cold-storage room. The second measurement input acquires the temperature of the vaporizer.

• Voltage supply: AC/DC 12 to 24 V +15/-15 %, 48 to 63 Hz
• Format: 76 mm × 36 mm × 71.7 mm
• Special features: Defrosting function with "electrical" or "hot gas" capability can be programmed; real-time clock; interface; operating hours counter; data logger; setup program including transmission and visualization of the measured values stored in the data logger; HACCP-compliant monitoring
• Alarms: Alarm via relay or buzzer
• Protection type: At the front IP65; at the rear IP20
• Mounting: Panel mounting
• Approvals: cULus
• Outputs: 1 changeover contact 16 A/250 V and 2 normally open contacts 8 A/250 V; optional: 1 changeover contact 16 A/250 V for alarm output
• Measuring inputs: 2 analog inputs for: Pt100; Pt1000; KTY1x-6 or KTY2x-6 in two-wire circuit (user configurable)
• Connections: Screw terminals
• Display: Three-digit backlit LCD display with 13 mm digit height and special characters for °C, °F, h, min, s; switching position indicator for cooling, defrost heating, fan, and alarm

An electronic 2-channel microstat for universal use for connection to RTD temperature probes. The 2 measurement inputs acquire temperatures that are available as the actual value and that can be assigned to the relays as the user sees fit.

• Voltage supply: AC/DC 12 to 24 V +15/-15 %, 48 to 63 Hz
• Protection type: At the front IP65; at the rear IP21
• Mounting: Panel mounting
• Alarms: Alarm via relay or buzzer
• Connections Screw terminals
• Measuring inputs: 2 analog inputs for: Pt100; Pt1000; KTY1x-6 or KTY2x-6 in two-wire circuit (user configurable)
• Special features: Interface; operating hours counter; data logger; setup program including transmission and visualization of the measured values stored in the data logger
• Format: 77 mm × 36 mm × 71.7 mm
• Display: Three-digit backlit LCD display with 13-mm digit height and special characters for °C, °F, h, min, s; switching position indicator for the relays
• Outputs: 2 changeover contacts 16 A/250 V and 2 normally open contacts 8 A/250 V; optional: 1 changeover contact 16 A/250 V for alarm output

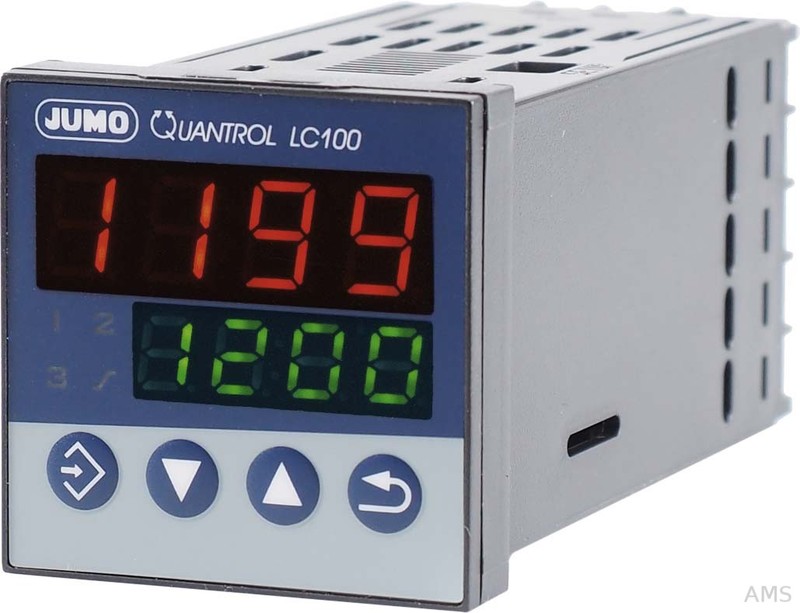

The Quantrol series is available in three DIN formats. It is used for two-state and three-state control applications as well as for the control of regulating valves or thyristor power controllers via a continuous output. Configuration is carried out on the device front or using the setup program.

• Inputs: 1 × universal thermocouples, RTD temperature probes, 0 to 10 V, 0(4) to 20 mA; 1 × digital input
• Outputs: 1 × relay (3 A/230 V normally open contact); 4 × optional: analog output (max 1x), relay, logic output
• Display: 2 × seven-segment LED
• Formats: 48 mm × 48 mm; 48 mm × 96 mm; 96 mm × 96 mm
• Other functions: Sensor monitoring, limit value monitoring function, setpoint changeover, ramp and timer function, firing curve

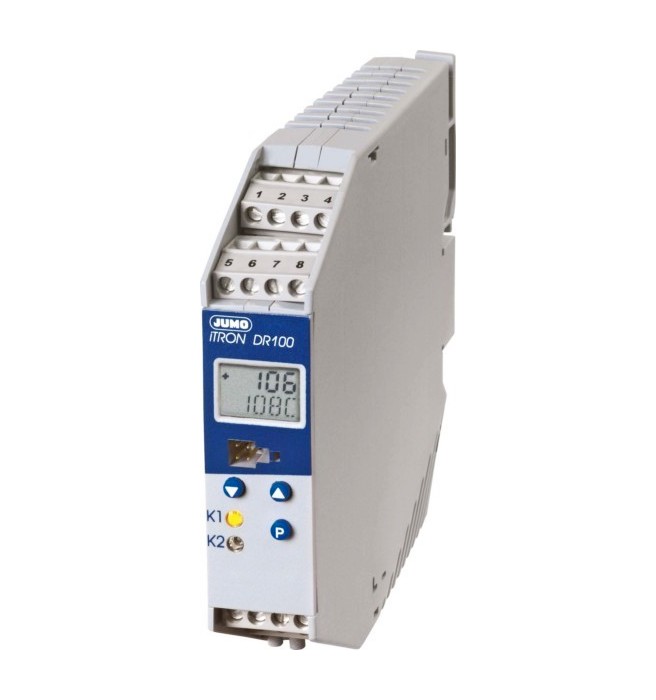

The JUMO iTRON DR 100 is a universal, user programmable microprocessor controller suitable for a large number of technical control applications. As an option, the controller is available with 1 relay (changeover contact) or 2 relays (normally open contacts).

• Inputs: 1 universal measurement input for Pt100 or Pt1000 in two-wire or three-wire circuit/thermocouples, 1 binary input
• Outputs: 1 binary output, 1-2 relay outputs: 1 changeover contact or 2 normally open contacts
• Operation: 3 keys and two-line alphanumerical display (LCD)
• Functions: Limit value monitoring function, ramp function, timer function, autotuning, setup program for configuring and archiving via PC
• Sampling rate: 210 ms
• Housing: Mounting on DIN rail, 35 mm × 7.5 mm
• Approvals: UL, metrological certificate
• Design width 22.5 mm
• Controller: Two-state/three-state controller

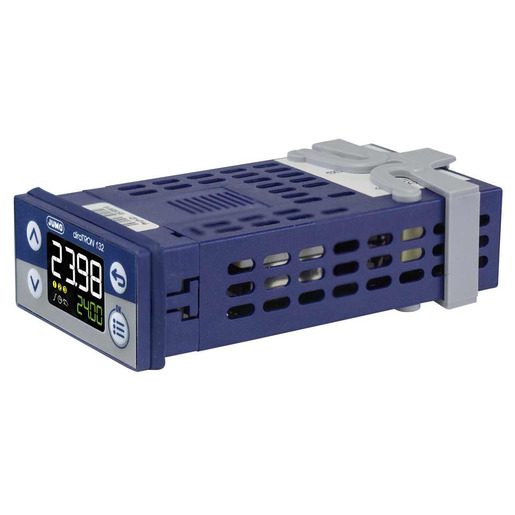

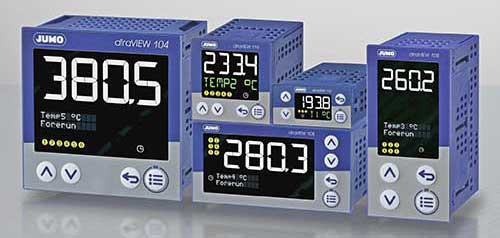

Devices that can be used universally in 5 DIN formats to control process variables. The basic type includes autotuning, a ramp function, a program controller, manual mode, limit value monitoring functions, digital control signals, extensive timer functions, and a service counter.

• Inputs: Inputs 1 × universal thermocouple, RTD temperature probe, 0(2) to 10 V, 0(4) to 20 mA; 2 × digital input
• Outputs: 1 × logic output, up to 2 relays (3 A/230 V normally open contact); up to 4 optionally: relay, logic, PhotoMOS, analog output
• Display: 2 × 18-segment LCD, pixel matrix LCD
• Formats: 132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm
• Interfaces: RS485 (Modbus-RTU), micro USB (configuration)

The controller series comprises 4 user programmable devices in various DIN formats to control temperatures, pressures, and other process variables. The devices control and manage the temperature of liquid and gaseous media according to DIN EN 14597.

• Controller structure: P; I; PD; PI; PID (two sets of control parameters)
• Special features: Modular structure with plug-in cards that can be selected individually and retrofitted; easy-to-use PC setup program including startup software; min. sampling rate 50 ms; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions; Modbus master function; program with 8 sections
• Alarms: 4 limit value monitoring functions, with 8 alarm functions each
• Approvals: Metrological certificate; cULus; DIN EN 14597
• Mounting: Plastic housing for panel mounting
• Measuring inputs: Up to 2 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; heater current 0 to 50 mA AC; customer-specific linearization possible
• Outputs: 2 relays 3 A / 230 V (normally open contact); 2 logic outputs 0/12 V (optionally 0/18 V)
• Interfaces/protocols: RS485 (Modbus); PROFIBUS DP; setup interface
• Program controller: 1 program with up to 8 sections; 4 control tracks
• Digital inputs: Up to 4 digital inputs for potential-free contacts
• Connections: Screw terminals
• Format: 48 mm × 48 mm, 48 mm × 96 mm, 96 mm × 48 mm, 96 mm × 96 mm
• Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz; AC/DC 20 to 30 V, 48 to 63 Hz
• Protection type: At the front IP65; at the rear IP20
• Controller type: Two-state controller; three-state controller; modulating controller; continuous controller
• Display: 2 four-digit, seven-segment displays (red, green) for process values, parameters, timers; icons for indicating switch positions, ramp mode, manual mode, and active setpoint values; 1 two-digit 16-segment display (green) for the display of various units

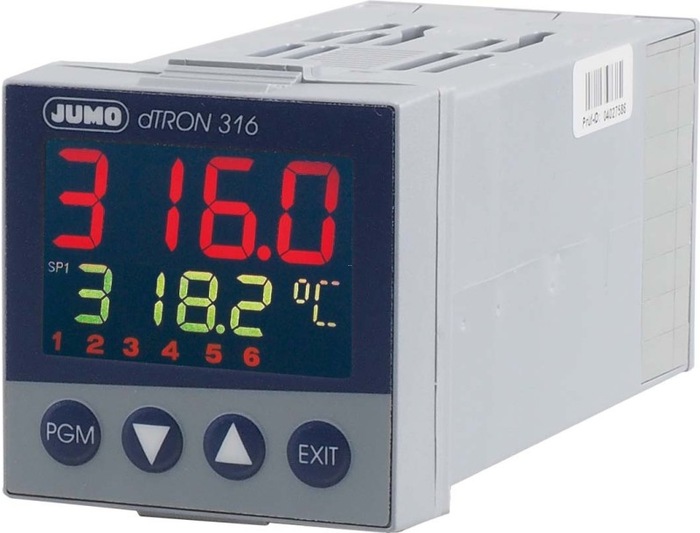

The JUMO dTRON 3xx plast controller series consists of 3 user programmable devices to control temperatures and other process variables for special applications in the plastics industry. Application areas include extruders, injection molding machines, tempering equipment, and hot channel systems.

• Controller structure: P; I; PD; PI; PID (two sets of control parameters)
• Special features: Special version for the plastics industry with control loop monitoring, output level monitoring, hot channel startup ramp, heater current monitoring, and boost function; modular structure with plug-in cards that can be selected individually and retrofitted; easy-to-use PC setup program including startup software; min. sampling rate 50 ms; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions; Modbus master function
• Alarms: 4 limit value monitoring functions, with 8 alarm functions each
• Approvals: cULus
• Mounting: Plastic housing for panel mounting
• Measuring inputs: Up to 2 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; heater current 0 to 50 mA AC; customer-specific linearization possible
• Outputs: 2 relays 3 A / 230 V (normally open contact); 2 logic outputs 0/12 V (optionally 0/18 V)
• Interfaces/protocols: RS485 (Modbus); PROFIBUS DP; setup interface
• Program controller: One program with up to 8 sections; 4 control tracks
• Digital inputs: Up to 4 digital inputs for potential-free contacts
• Connections: Screw terminals
• Format: 48 mm × 48 mm, 48 mm × 96 mm, 96 mm × 96 mm
• Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz; AC/DC 20 to 30 V, 48 to 63 Hz
• Protection type: At the front IP65; at the rear IP20
• Controller type: Two-state controller; three-state controller; modulating controller; continuous controller
• Display: 2 four-digit, seven-segment displays (red, green) for process values, parameters, timers; icons for indicating switch positions, ramp mode, manual mode, and active setpoint values; 1 two-digit 16-segment display (green) for the display of various units

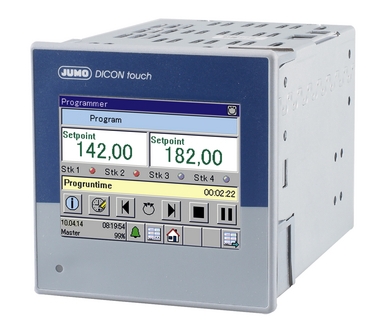

Devices that can be used universally in 5 DIN formats to control process variables. The basic type includes autotuning, a ramp function, a program controller, manual mode, limit value monitoring functions, digital control signals, extensive timer functions, and a service counter.

• Measuring inputs: Up to 4 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; customer-specific linearization possible
• Digital inputs: 7 digital inputs for potential-free contacts
• Outputs: Max. 12 internal: relays (changeover contact/normally open contact); logic output 0/12 V or 0/24 V; semiconductor output 1 A; analog output 0/4 to 20 mA or 0/2 to 10 V; switching outputs can be expanded with 2 external modular assemblies; voltage supply for two-wire transmitter via 24 V logic output
• Display: 3.5 inch TFT color screen (320 × 420 pixels, 256 colors) with touchscreen operation; plain text display available in English, German, French, and other languages; process-specific texts and screens can be individually configured; bar graph display
• Interfaces/protocols: 1 × RS485 (Modbus); 1 × Ethernet, PROFIBUS DP, PROFINET, or RS422/485 (Modbus); USB host; USB device
• Controller type: Two-state controller; three-state controller; modulating controller; continuous controller; continuous controller with integrated position controller
• Controller structure: P; I; PD; PI; PID (4 sets of control parameters per channel)
• Alarms: 16 limit value monitoring functions with 8 selectable alarm functions with timer and confirmation function each
• Number of control channels: 2 independent and user configurable control channels
• Program controller: 10 programs each with 50 sections; 8 control tracks
• Format: 96 mm × 96 mm × 131 mm
• Voltage supply: AC/DC 20 to 30 V, 48 to 63 Hz or AC 110 to 240 V +10/-15 %, 48 to 63 Hz
• Protection type: At the front IP66; at the rear IP20
• Special features: Modular structure with plug-in cards that can be retrofitted individually; intuitive operation via touchscreen; easy-to-use PC setup program including startup software; recording function with evaluation software; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions, as well as additional binary signal processing; programmable function fields and individually configurable process screen for plant visualization with interactive display and input fields; teleservice and email notification; controller output level and control loop monitoring; integrated web server; Modbus master function; five-digit analog value display; individual assignment of rights to various users (levels and control commands); Ethernet interface; weekly time switch; visualization of process values via the JUMO Device App

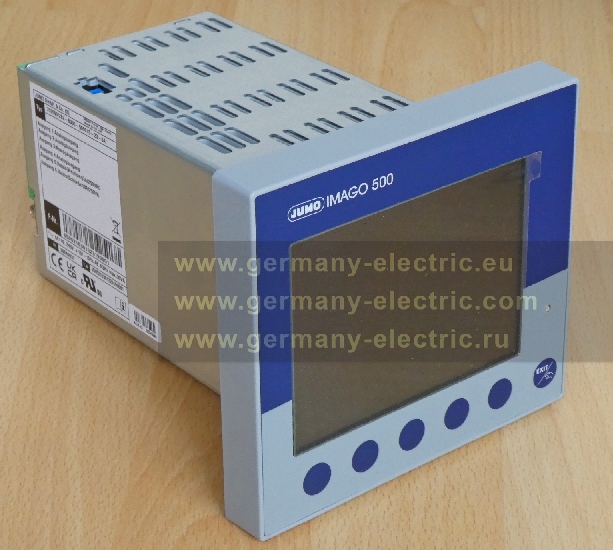

The JUMO IMAGO 500 is a process and program controller with up to 8 controller channels or 4 program channels. The user interface masks can be adapted according to individual preferences. With 2 screen masks, the user can place text, process values, background images, and icons as they see fit.

• Measuring inputs: Up to 8 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; heater current, C-level control; customer-specific linearization possible
• Digital inputs: 6 digital inputs for potential-free contacts
• Outputs: Max. 6 slots for the following plug-in cards: 2 relays (normally open contact); 1 relay (changeover contact); 2 logic outputs 0/5 V; 1 logic output 0/22 V; 1 solid state relay; 1 analog output; 1 voltage supply for two-wire transmitter via 22 V logic output
• Additional contacts: Up to 2 external relay modules with 8 changeover contacts or 8 logic outputs 0/12 V
• Interfaces/protocols: 1 × RS422/485 (Modbus); 1 × PROFIBUS DP or RS422/485 (Modbus); setup interface
• Number of control channels: Up to 8 independent and user configurable control channels
• Controller structure: P; I; PD; PI; PID (2 sets of control parameters per channel)
• Controller type: Two-state controller; three-state controller; modulating controller; continuous controller; continuous controller with integrated position controller
• Program controller: 50 programs each with up to 100 sections; max. total of 1000 sections, 16 control tracks
• Alarms: 16 limit value monitoring functions, each with 8 selectable alarm functions with timer and confirmation functions
• Display: 5-inch TFT color screen (320 × 420 pixels, 27 colors); plain text display available in English, German, French, and other languages; process-specific texts and screens individually configured; bar graph display
• Protection type: At the front IP65; at the rear IP20
• Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz; AC/DC 20 to 30 V, 48 to 63 Hz
• Format: 144 mm × 130 mm × 170 mm, installation dimensions 92 mm × 92 mm
• Special features: Modular structure with plug-in cards that can be retrofitted individually; easy-to-use PC setup program including startup software; recording function with evaluation software; min. sampling rate 50 ms; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions; programmable function keys and individually configured process screen for plant visualization; teleservice and email notification (via external modem)
