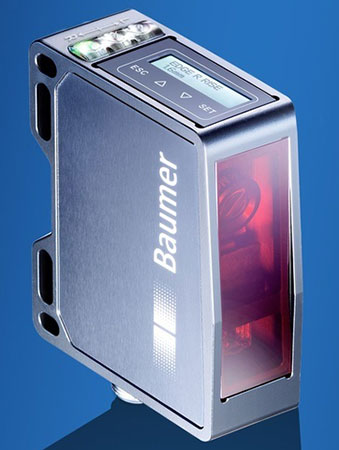

Unlike common profile sensors, the smart profile sensors PosCon offer complex functions like gap, edge or height measurement, preconfigured in an easy-to-operate, compact sensor. Thanks to their intelligent evaluation within the sensor, their standardized operating concept and robust housing, PosCon profile sensors are the ideal solution for measuring and inspection tasks.

The qTarget design of the PosCon profile sensors is referencing the optical axis to the mounting holes. This enables system integration already in the CAD stage. No later mechanical adjustments or alignments in the application are necessary.

Ready for immediate use thanks to fast setup

  • Optimum design thanks to optically aligned axis (qTarget)
  • Fast sensor alignment thanks to visible laser line and LED indicators
  • Mounting at any angle within ±30°
  • Sensor operation does not require reflector

Easy adaptation in any application

  • Predefined measuring functions for selected applications
  • No external software required
  • Measured value output in millimeters thanks to calibrated sensor
  • Simple parameterization and operation for precisely fitting measurement solutions via Webinterface

IIoT ready

  • Ethernet interface with OPC UA and Modbus TCP
  • Easy integration into network structures

Ethernet Interface with Modbus TCP and OPC UA

  • IIoT-Ready using Ethernet interface with OPC UA and Modbus TCP
  • Easy integration into existing network structures
  • Smart parameterization and monitoring via integrated web interface
  • Transmission of additional data

Accurate measuring results even under demanding conditions

  • Accurate measurements even on high-gloss, black or very uneven surfaces
  • High measuring rates for fast-moving objects
  • Immune to ambient light impacts

Measurement is independent of object positions. An appropriate object can move within the measuring field without having any impact on the measurement. This absence of sensitivity makes a significant contribution to the reliable functioning of the sensor in the application.

Product name Downloads Product group Resolution Measuring distance Interface
OXC7-X0250.II1250.TI
Request quote
Datasheet
Manual
Light-section sensors
round objects
PosCon OXC7
10 ... 40 µm 150...250 mm 4...20 mA
0...10V
RS485
OXE7.E15T-L82C.SIMD.7AI
Request quote
Datasheet
Manual
Light-section sensors
edges, width, gap
for very precise measurements
20 µm 100...150 mm 4...20 mA
0...10V
RS485
OXE7.E15T-L82E.SIMD.7AI
Request quote
Datasheet
Manual
Light-section sensors
edges, width, gap
for very precise measurements
20 µm 100...150 mm 4...20 mA
0...10V
RS485
OXE7.E25T-LB3C.SIMD.7AI
Request quote
Datasheet
Manual
Light-section sensors
edges, width, gap
for very dark objects
30...50 µm 150...250 mm 4...20 mA
0...10V
RS485
OXE7.E25T-LB3E.SIMD.7AI
Request quote
Datasheet
Manual
Light-section sensors
edges, width, gap
PosCon OXE7
30...50 µm 150...250 mm 4...20 mA
0...10V
RS485
OXH7-Z0150.HI0720.EK
Request quote
Datasheet
Manual
Light-section sensors
height measurement
PosCon OXH7
2...4 µm 100...150 mm Ethernet TCP/IP
OXH7-Z0150.HI0720.VI
Request quote
Datasheet
Manual
Light-section sensors
height measurement
PosCon OXH7
2...4 µm 100...150 mm 4...20 mA
0...10V
RS485
OXH7-Z0500.HI0660.VI
Request quote
Datasheet
Manual
Light-section sensors
height measurement
PosCon OXH7
4...25 µm 100...500 mm 4...20 mA
0...10V
RS485

Applications of the PosCon:

Profilsensor PosCon OXE7 – Breitenmessung

Width measurement of tapes independent of radial run-out.

Höhenmessung von Gummibändern

Reliable, fast measurements on absorbent materials like rubber belts.

Profilsensor PosCon OXC7 – Mittelpunktbestimmung

Easy measurement of round objects.
