Thyristor Power Controller TYA

Looking for the price? [x]
Copy & paste part number:
JUMO

JUMO power controllers are fitted with LC displays as standard, for easy and quick parameterization on the device. Our thyristor power controllers are supplied by means of the interface and therefore require no external voltage supply. Additionally, they feature dual energy management which – using equal distribution of the energy in the mains voltage – reduces energy costs.

JUMO

Single-phase thyristor power controller JUMO TYA 20170.9061

Single-phase thyristor power controller
JUMO TYA 201
70.9061

Thyristor power controllers are used where larger resistive and inductive loads have to be switched (e.g. in industrial furnace construction and plastics processing). It consists of 2 antiparallel switched thyristors, the insulated heat sink, and the control electronics.

  • Subordinate: control loop U, U2 (standard), I, I2, P (optional)
  • Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
  • Load voltage: 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
  • Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
  • Approval: cULus
  • Special features: Current limiting, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
  • Control voltage: Control voltage = load voltage
  • Operating modes: Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start
  • Ambient temperature: -20 to +70°C
  • System interfaces: Modbus, PROFIBUS DP, system bus JUMO mTRON T, EtherCAT, PROFINET
  • Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

709061/8-01-020-100-230-00/252 709061/8-02-020-100-230-00/252
709061/8-01-020-010-230-00/252 709061/8-01-020-001-230-00/252
709061/8-01-020-100-400-00/252 709061/8-01-020-010-400-00/252
709061/8-01-020-001-400-00/252 709061/8-01-032-010-230-00/252
709061/8-01-032-100-400-00/252 709061/8-01-032-010-400-00/252
709061/8-01-032-100-460-00/252 709061/8-01-050-100-230-00/252
709061/8-01-050-001-230-00/252 709061/8-01-050-100-400-00/252
709061/8-01-100-010-230-00/252 709061/8-01-100-100-400-00/252
709061/8-01-100-001-400-00/252 709061/8-01-150-100-230-00/252
709061/8-01-150-100-400-00/252

Software:

  • GSD-Generator JUMO 144.01.xx/1.xx, 00432892
  • Setup JUMO TYA-201/202/203 709061/62/63, 00544869
  • EtherCAT Slave Information (ESI), 00703297
  • JUMO TYA PROFINET Description file, 00709880

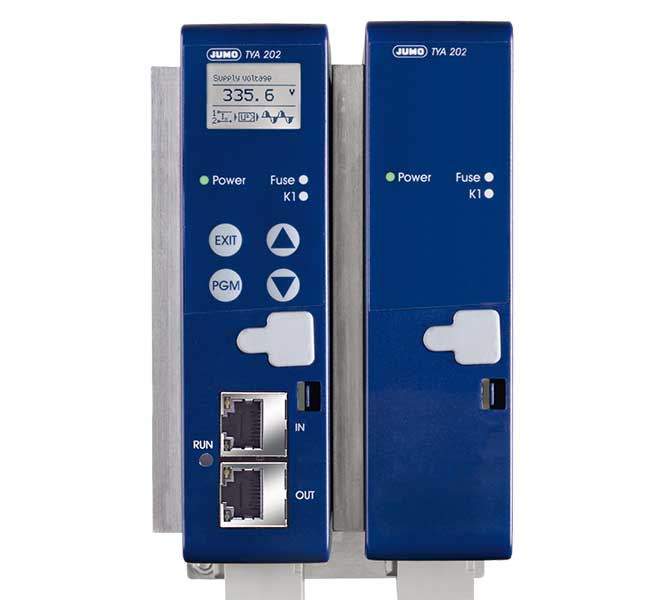

Three-phase thyristor power controller JUMO TYA 20270.9062

Three-phase thyristor power controller
JUMO TYA 202
70.9062

Three-phase thyristor power controller in three-phase economy circuit (two of three phase). The JUMO TYA 202 represents the systematic further development of the JUMO power controller technology. It switches resistive inductive loads using a three-phase economy circuit in star-delta three-phase operation. It is used where larger resistive and inductive loads have to be switched.

  • Subordinate: control loop U, U2 (standard), I, I2, P (optional)
  • Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
  • Load voltage: 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
  • Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
  • Approval: cULus
  • Special features: Economy circuit, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
  • Control voltage: Control voltage = load voltage
  • Operating modes: Burst-firing operation, SSR logical operation, fast logical operation, alpha start, soft start
  • Ambient temperature: -20 to +70°C
  • System interfaces: Modbus, PROFIBUS DP, system bus JUMO mTRON T, PROFINET, EtherCAT
  • Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

709062/8-01-020-100-400-00/252 709062/8-01-032-100-400-00/252
709062/8-01-050-100-400-00/252 709062/8-01-100-100-400-00/252
709062/8-01-100-010-400-00/252 709062/8-01-150-010-400-00/252
709062/8-01-200-100-400-00/252 709062/8-01-200-010-400-00/252
709062/8-01-250-100-400-00/252

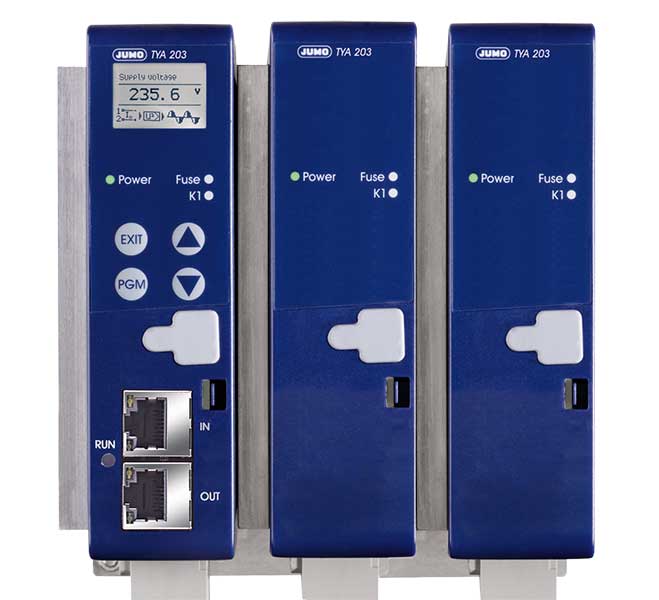

Three-phase thyristor power controller JUMO TYA 20370.9063

Three-phase thyristor power controller
JUMO TYA 203
70.9063

Three-phase thyristor power controller in three-phase economy circuit. The JUMO TYA 202 represents the systematic further development of the JUMO power controller technology. It switches resistive inductive loads using a three-phase economy circuit in star-delta three-phase operation. It is used where larger resistive and inductive loads have to be switched.

  • Subordinate: control loop U, U2 (standard), I, I2, P (optional)
  • Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
  • Load voltage: 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
  • Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
  • Approval: cULus
  • Special features: Economy circuit, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
  • Control voltage: Control voltage = load voltage
  • Operating modes: Burst-firing operation, SSR logical operation, fast logical operation, alpha start, soft start
  • Ambient temperature: -20 to +70°C
  • System interfaces: Modbus, PROFIBUS DP, system bus JUMO mTRON T, PROFINET, EtherCAT
  • Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

709063/8-01-100-010-400-00/252 709063/8-01-050-010-400-00/252
709063/8-01-020-100-400-00/252 709063/8-01-032-100-400-00/252
709063/8-01-050-100-400-00/252 709063/8-01-100-100-400-00/252
709063/8-01-100-010-400-00/252 709063/8-01-150-010-400-00/252
709063/8-01-200-100-400-00/252 709063/8-01-200-010-400-00/252
709063/8-01-250-100-400-00/252 -

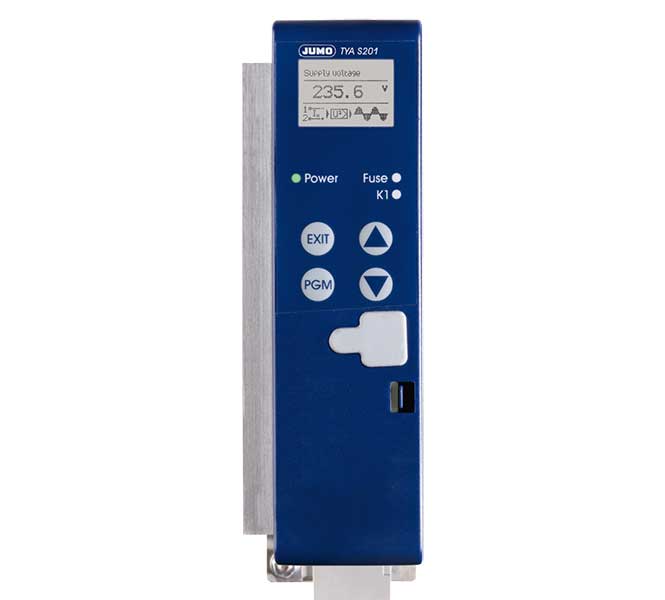

Single-phase thyristor power controller JUMO TYA S20170.9065

Single-phase thyristor power controller
JUMO TYA S201
70.9065

Single-phase thyristor power controller for burst-firing operation. The JUMO TYA S201 represents a cost-optimized version of the JUMO TYA 201 and is also used to control larger resistive and inductive loads. This is carried out using pulse group control. Areas of application include industrial furnace construction and plastics processing.

  • Load type: Resistive load, resistive inductive load; in the case of transformer loads, the nominal induction of 1.2 tesla must not be exceeded (value is 1.45 T in the case of mains overvoltage).
  • Load voltage: 230 V, 400 V, 460 V, 500 V
  • Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
  • Approval: cULus
  • Special features: Soft start function, network load optimization through dual energy management, load monitoring for detection of partial load failure or load short circuit "Teach-In", integrated diagnosis system, device configuration without auxiliary voltage, LCD display with info line
  • Control voltage: Control voltage = load voltage
  • Operating modes: Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start
  • Ambient temperature: -20 to +70°C
  • System interfaces: RS422/485, PROFINET
  • Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

709065/8-01-020-100-400-00/252 709065/8-01-032-100-400-00/252
709065/8-01-050-100-400-00/252 709065/8-01-100-100-400-00/252
709065/8-01-100-010-400-00/252 709065/8-01-150-010-400-00/252
709065/8-01-200-100-400-00/252 709065/8-01-200-010-400-00/252
709065/8-01-250-100-400-00/252 -

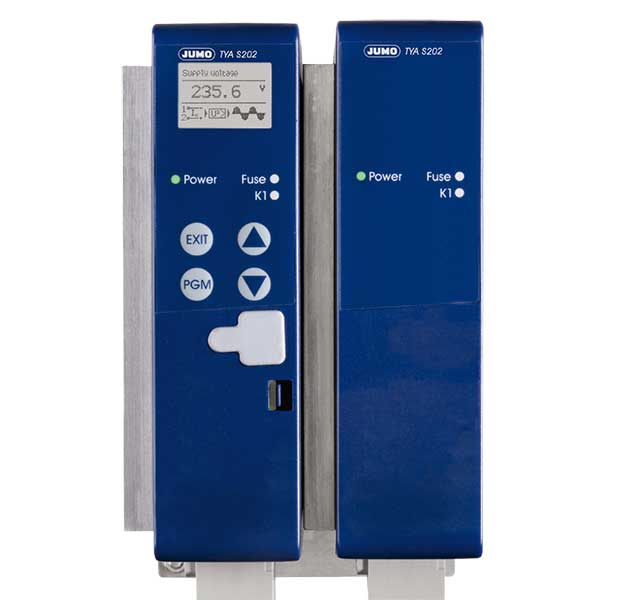

Three-phase thyristor power controller JUMO TYA S20270.9066

Three-phase thyristor power controller
JUMO TYA S202
70.9066

Three-phase thyristor power controller in three-phase economy circuit (two of three phase). The JUMO TYA S202 represents a cost-optimized version of the JUMO TYA 202 and is also used to control larger resistive and inductive loads. This is carried out using pulse group control. Areas of application include industrial furnace construction and plastics processing.

  • Subordinate: control loop U, U2 (standard), I, I2, P (optional)
  • Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
  • Load voltage: 400 V, 460 V, 500 V
  • Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
  • Approval: cULus
  • Special features: Economy circuit, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
  • Control voltage: Control voltage = load voltage
  • Operating modes: Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start
  • Ambient temperature: -20 to +70°C
  • System interfaces: RS422/485, PROFINET
  • Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

709066/8-01-020-00-400-00 709066/8-01-032-00-400-00
709066/8-01-020-00-400-54 709066/8-01-032-00-400-54
709066/8-01-020-01-400-00 709066/8-01-032-01-400-00
709066/8-01-020-01-400-54 709066/8-01-032-01-400-54
709066/8-01-050-00-400-00 709066/8-01-100-00-400-00
709066/8-01-050-01-400-00 709066/8-01-100-01-400-00
709066/8-01-050-00-400-54 709066/8-01-100-00-400-54
709066/8-01-050-01-400-54 709066/8-01-100-01-400-54
709066/8-01-100-01-400-00 709066/8-01-150-01-400-00
709066/8-01-200-00-400-00 709066/8-01-200-00-400-00
709066/8-01-250-00-400-00 709066/8-01-250-01-400-00
