Inclination sensor GNAMG

Inclination sensor GNAMG

Request quote
Made in Germany
UL сертификат

лого CANopen
лого ProfiBus

Our quote will always be lower than the manufacturer's price. Please send us the full part number of a device to get a quick response.

Inclination sensors GNAMG: 1- or 2-dimensional. Interface CANopen or Profibus. Connection M12 and cable. Protection up to IP67. High repeatability. High sensitivity. Measuring range of the GNAMG (1-dimensional) is 0...360°. Measuring range of the GNAMG (2-dimensional) is ±15° / ±30° / ±60°. Accuracy: ±0.1° to 0.2°

Incremental encoder GNAMG
GNAMG.0153P32 GNAMG.0153P33 GNAMG.0153PA2 GNAMG.0155P32 GNAMG.0155PA2 GNAMG.0213P32 GNAMG.0213PA2
GNAMG.0215P32 GNAMG.0215PA2 GNAMG.0223P32 GNAMG.0223PA2 GNAMG.0225P32 GNAMG.0225PA2 GNAMG.0233P32
GNAMG.0233PA2 GNAMG.0235P32 GNAMG.0235PA2 - - - -

Inclination sensors GIM500R

Inclination sensors GIM500R

Request quote

Inclination sensors GIM500R: 1- or 2-dimensional. Size 52 mm. MEMS capacitive measuring principle. EN13849 compliant firmware. E1 compliant design. Interface CANopen, SAE J1939, Analog (4...20 mA / 0.5...4.5 V / 0...5 V / 0...10 V). Connection M12 and cable. Protection up to IP 69K. High repeatability. High sensitivity. Measuring range of the GIM500R (1-dimensional) is 0...90°, 0...120°, 0...180°, 0...270°, 0...360°. Measuring range of the GIM500R (2-dimensional) is ±10° / ±30° / ±45° / ±60° / ±90°.

Manufactured part numbers: open, use the search ctrl + F
GIM500R-M136.$C9.A GIM500R-M210.FC4.A GIM500R-M260.BC6.A GIM500R-M136.AC6.A
GIM500R-M230.FV1.A GIM500R-M260.FV1.A GIM500R-M106.FV1.A GIM500R-M136.FV1.A
GIM500R-M260.FC4.A GIM500R-M136.FC4.A GIM500R-M136.BC6.A GIM500R-M118.FC4.A
GIM500R-M260.KC6.A GIM500R-M260.$C6.A GIM500R-M136.KC4.A GIM500R-M230.AC6.A
GIM500R-M109.FV1.A GIM500R-MV90.AC6.A GIM500R-M112.FC4.A GIM500R-M290.AC9.A
GIM500R-M136.AC6.A GIM500R-M136.KC6.A GIM500R-M230.FC4.A GIM500R-M290.FV1.A
GIM500R-M109.FC4.A GIM500R-M136.FV5.A GIM500R-M290.FV5.A GIM500R-M136.KV5.A
GIM500R-M290.BC6.A GIM500R-M290.FC4.A GIM500R-M109.KC4.A GIM500R-M109.FV5.A
GIM500R-M103.FC4.A GIM500R-M106.FC4.A GIM500R-M103.FV1.A GIM500R-M136.BC9.A
GIM500R-M230.KC4.A GIM500R-M118.KC4.A GIM500R-M118.FV1.A GIM500R-M290.AC6.A
GIM500R-M290.AC6.A GIM500R-M290.KV1.A GIM500R-M112.FV1.A

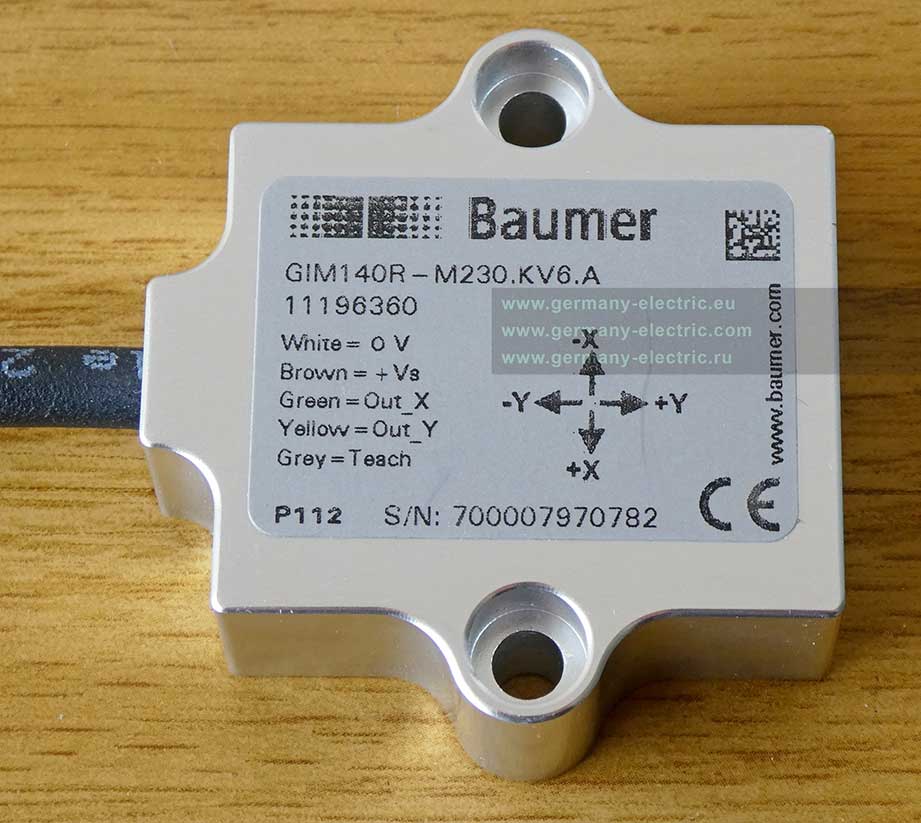

Inclination sensors GIM140R

Inclination sensors GIM140R

Request quote

Inclination sensors GIM140R: 1- or 2-dimensional. Size 52 mm. MEMS capacitive measuring principle. EN13849 compliant firmware. E1 compliant design. Interface CANopen, SAE J1939, Analog (4...20 mA / 0.5...4.5 V / 0...5 V / 0...10 V). Connection M12 and cable. Protection up to IP 69K. High repeatability. High sensitivity. Measuring range of the GIM140R (1-dimensional) is 0...30°, 0...60°, 0...90°, 0...120°, 0...180°, 0...270°, 0...360°. Measuring range of the GIM140R (2-dimensional) is ±10° / ±30° / ±45° / ±60°.

Manufactured part numbers:
GIM140-M1360.KV3.A GIM140-M1120.KV6.A/4822
GIM140-M1060.KC0.A GIM140-M230.KV6.A
