Temperature gauges Bourdon

Bourdon

Bourdon-Haenni is one of the world leading brands for mechanical process instrumentation and belongs with its international business locations to the Baumer Group. Historically, this competence and passion is based on the Bourdon tube invented in 1843 by Eugène Bourdon, which is the central component for precise mechanical pressure measurement technology, today and in the future. The comprehensive product portfolio is manufactured with high vertical integration and state-of-the-art process methods in the company own production sites in France, Switzerland, Germany and India.

Bourdon

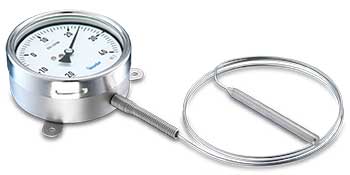

Temperature gauges are a good choice for local temperature reading close to the process. They are reliable, need no external power supply and allow constant process monitoring. Bourdon mechanical temperature measurement solutions include bi-metal thermometers with various connections, stem diameters and lengths for local reading and particularly versatile gas filled thermometers for local and remote reading when combined with capillaries of up to 30 m in length.

Bourdon dial thermometers guarantee accurate reading for temperature as low as -200°C and up to 800°C. Thermometers with bimetal technology are available with a vertical, horizontal or every angle stem and a maximum length of 1000 mm. Our high quality dial thermometers - class 1 according to EN 13190 - are designed and manufactured with your application in mind. Whether HVAC, Oil and Gas, food and beverage, water treatment, nuclear power stations, chemical and petrochemical plants, at Bourdon we have the right solution for you.

Manufactured Thermometers open / close, use the search ctrl + F
TB080-212.152.11T 80 mm 0 ... 60 °C 100 mm Brass IP50
TB080-212.152.12T 80 mm 0 ... 100 °C 100 mm Brass IP50
TB080-212.152.13T 80 mm 0 ... 160 °C 100 mm Brass IP50
TB080-212.156.52T 80 mm -20 ... 40 °C 250 mm Brass IP50
TB080-212.157.20T 80 mm 0 ... 120 °C 400 mm Brass IP50
TB080-212.152.20T 80 mm 0 ... 120 °C 100 mm Brass IP50
TB080-212.152.52T 80 mm -20 ... 40 °C 100 mm Brass IP50
TB080-212.154.11T 80 mm 0 ... 60 °C 160 mm Brass IP50
TB080-212.154.12T 80 mm 0 ... 100 °C 160 mm Brass IP50
TB080-212.154.20T 80 mm 0 ... 120 °C 160 mm Brass IP50
TB080-212.154.52T 80 mm -20 ... 40 °C 160 mm Brass IP50
TB100-212.152.10T 100 mm 0 ... 40 °C 100 mm Brass IP50
TB100-212.152.11T 100 mm 0 ... 60 °C 100 mm Brass IP50
TB100-212.152.12T 100 mm 0 ... 100 °C 100 mm Brass IP50
TB100-212.152.13T 100 mm 0 ... 160 °C 100 mm Brass IP50
TB100-212.152.14T 100 mm 0 ... 250 °C 100 mm Brass IP50
TB100-212.152.20T 100 mm 0 ... 120 °C 100 mm Brass IP50
TB100-212.152.27T 100 mm 0 ... 80 °C 100 mm Brass IP50
TB100-212.152.51T 100 mm -30 ... 70 °C 100 mm Brass IP50
TB100-212.152.52T 100 mm -20 ... 40 °C 100 mm Brass IP50
TB100-212.152.53T 100 mm -10 ... 30 °C 100 mm Brass IP50
TB100-212.152.54T 100 mm -20 ... 60 °C 100 mm Brass IP50
TB100-212.154.10T 100 mm 0 ... 40 °C 160 mm Brass IP50
TB100-212.154.11T 100 mm 0 ... 60 °C 160 mm Brass IP50
TB100-212.154.12T 100 mm 0 ... 100 °C 160 mm Brass IP50
TB100-212.154.13T 100 mm 0 ... 160 °C 160 mm Brass IP50
TB100-212.154.14T 100 mm 0 ... 250 °C 160 mm Brass IP50
TB100-212.154.20T 100 mm 0 ... 120 °C 160 mm Brass IP50
TB100-212.154.51T 100 mm -30 ... 70 °C 160 mm Brass IP50
TB100-212.154.52T 100 mm -20 ... 40 °C 160 mm Brass IP50
TB100-212.154.53T 100 mm -10 ... 30 °C 160 mm Brass IP50
TB100-212.154.54T 100 mm -20 ... 60 °C 160 mm Brass IP50
TB100-212.156.11T 100 mm 0 ... 60 °C 250 mm Brass IP50
TB100-212.156.12T 100 mm 0 ... 100 °C 250 mm Brass IP50
TB100-212.156.13T 100 mm 0 ... 160 °C 250 mm Brass IP50
TB100-212.156.14T 100 mm 0 ... 250 °C 250 mm Brass IP50
TB100-212.156.20T 100 mm 0 ... 120 °C 250 mm Brass IP50
TB100-212.156.51T 100 mm -30 ... 70 °C 250 mm Brass IP50
TB100-212.156.52T 100 mm -20 ... 40 °C 250 mm Brass IP50
TB100-212.157.11T 100 mm 0 ... 60 °C 400 mm Brass IP50
TB100-212.157.12T 100 mm 0 ... 100 °C 400 mm Brass IP50
TB100-212.157.14T 100 mm 0 ... 250 °C 400 mm Brass IP50
TB100-212.157.20T 100 mm 0 ... 120 °C 400 mm Brass IP50
TB100-212.157.52T 100 mm -20 ... 40 °C 400 mm Brass IP50
TB100-212.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP50
TBH080-212.151.11T 80 mm 0 ... 60 °C 48 mm Brass IP50
TBH080-212.151.12T 80 mm 0 ... 100 °C 48 mm Brass IP50
TBH080-212.151.20T 80 mm 0 ... 120 °C 48 mm Brass IP50
TBH080-212.151.52T 80 mm -20 ... 40 °C 48 mm Brass IP50
TBH080-212.152.11T 80 mm 0 ... 60 °C 68 mm Brass IP50
TBH080-212.152.12T 80 mm 0 ... 100 °C 68 mm Brass IP50
TBH080-212.152.20T 80 mm 0 ... 120 °C 68 mm Brass IP50
TBH080-212.152.52T 80 mm -20 ... 40 °C 68 mm Brass IP50
TBH080-212.153.11T 80 mm 0 ... 60 °C 88 mm Brass IP50
TBH080-212.153.12T 80 mm 0 ... 100 °C 88 mm Brass IP50
TBH080-212.153.20T 80 mm 0 ... 120 °C 88 mm Brass IP50
TBH080-212.153.52T 80 mm -20 ... 40 °C 88 mm Brass IP50
TBH100-212.151.11T 100 mm 0 ... 60 °C 48 mm Brass IP50
TBH100-212.151.12T 100 mm 0 ... 100 °C 48 mm Brass IP50
TBH100-212.151.20T 100 mm 0 ... 120 °C 48 mm Brass IP50
TBH100-212.151.52T 100 mm -20 ... 40 °C 48 mm Brass IP50
TBH100-212.152.11T 100 mm 0 ... 60 °C 68 mm Brass IP50
TBH100-212.152.12T 100 mm 0 ... 100 °C 68 mm Brass IP50
TBH100-212.152.20T 100 mm 0 ... 120 °C 68 mm Brass IP50
TBH100-212.152.52T 100 mm -20 ... 40 °C 68 mm Brass IP50
TBH100-212.153.11T 100 mm 0 ... 60 °C 88 mm Brass IP50
TBH100-212.153.12T 100 mm 0 ... 100 °C 88 mm Brass IP50
TBH100-212.153.20T 100 mm 0 ... 120 °C 88 mm Brass IP50
TBH100-212.153.52T 100 mm -20 ... 40 °C 88 mm Brass IP50
TBHA080-212.161.11T 80 mm 0 ... 60 °C 55 mm Stainless steel IP50
TBHA080-212.161.12T 80 mm 0 ... 100 °C 55 mm Stainless steel IP50
TBHA080-212.161.20T 80 mm 0 ... 120 °C 55 mm Stainless steel IP50
TBHA080-212.162.11T 80 mm 0 ... 60 °C 75 mm Stainless steel IP50
TBHA080-212.162.12T 80 mm 0 ... 100 °C 75 mm Stainless steel IP50
TBHA100-212.161.11T 100 mm 0 ... 60 °C 55 mm Stainless steel IP50
TBHA100-212.161.12T 100 mm 0 ... 100 °C 55 mm Stainless steel IP50
TBHA100-212.161.20T 100 mm 0 ... 120 °C 55 mm Stainless steel IP50
TBHA100-212.162.11T 100 mm 0 ... 60 °C 75 mm Stainless steel IP50
TBHA100-212.162.12T 100 mm 0 ... 100 °C 75 mm Stainless steel IP50
TBHA100-212.162.20T 100 mm 0 ... 120 °C 75 mm Stainless steel IP50
TBHA100-212.162.27T 100 mm 0 ... 80 °C 75 mm Stainless steel IP50
TBI100-212.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP67
TBI100-212.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP67
TBHA080-212.162.20T 80 mm 0 ... 120 °C 75 mm Stainless steel IP50
TBHA080-212.162.27T 80 mm 0 ... 80 °C 75 mm Stainless steel IP50
TBHA080-212.161.27T 80 mm 0 ... 80 °C 55 mm Stainless steel IP50
TBHA100-212.161.27T 100 mm 0 ... 80 °C 55 mm Stainless steel IP50
TBL100-232.151.70T 100 mm -30 ... 50 °C 165 mm Brass IP50
TBL100-232.151.54T 100 mm -20 ... 60 °C 165 mm Brass IP50
TBL100-232.151.27T 100 mm 0 ... 80 °C 165 mm Brass IP50
TBL100-232.151.12T 100 mm 0 ... 100 °C 165 mm Brass IP50
TB080-212.152.10T 80 mm 0 ... 40 °C 100 mm Brass IP50
TB080-212.152.14T 80 mm 0 ... 250 °C 100 mm Brass IP50
TB080-212.154.53T 80 mm -10 ... 30 °C 160 mm Brass IP50
TB080-212.154.54T 80 mm -20 ... 60 °C 160 mm Brass IP50
TB080-212.156.11T 80 mm 0 ... 60 °C 250 mm Brass IP50
TB080-212.156.12T 80 mm 0 ... 100 °C 250 mm Brass IP50
TB080-212.156.13T 80 mm 0 ... 160 °C 250 mm Brass IP50
TB080-212.156.14T 80 mm 0 ... 250 °C 250 mm Brass IP50
TB080-212.156.20T 80 mm 0 ... 120 °C 250 mm Brass IP50
TB080-212.156.22T 80 mm 0 ... 200 °C 250 mm Brass IP50
TB080-212.156.27T 80 mm 0 ... 80 °C 250 mm Brass IP50
TB080-212.156.54T 80 mm -20 ... 60 °C 250 mm Brass IP50
TB080-212.157.11T 80 mm 0 ... 60 °C 400 mm Brass IP50
TB080-212.157.12T 80 mm 0 ... 100 °C 400 mm Brass IP50
TB080-212.157.13T 80 mm 0 ... 160 °C 400 mm Brass IP50
TB080-212.157.14T 80 mm 0 ... 250 °C 400 mm Brass IP50
TB080-212.157.22T 80 mm 0 ... 200 °C 400 mm Brass IP50
TB080-212.157.27T 80 mm 0 ... 80 °C 400 mm Brass IP50
TB080-212.157.52T 80 mm -20 ... 40 °C 400 mm Brass IP50
TB080-212.157.54T 80 mm -20 ... 60 °C 400 mm Brass IP50
TB080-212.162.10T 80 mm 0 ... 40 °C 100 mm Stainless steel IP50
TB080-212.162.11T 80 mm 0 ... 60 °C 100 mm Stainless steel IP50
TB080-212.162.12T 80 mm 0 ... 100 °C 100 mm Stainless steel IP50
TB080-212.162.13T 80 mm 0 ... 160 °C 100 mm Stainless steel IP50
TB080-212.162.27T 80 mm 0 ... 80 °C 100 mm Stainless steel IP50
TB080-212.152.22T 80 mm 0 ... 200 °C 100 mm Brass IP50
TB080-212.152.27T 80 mm 0 ... 80 °C 100 mm Brass IP50
TB080-212.152.53T 80 mm -10 ... 30 °C 100 mm Brass IP50
TB080-212.152.54T 80 mm -20 ... 60 °C 100 mm Brass IP50
TB080-212.154.10T 80 mm 0 ... 40 °C 160 mm Brass IP50
TB080-212.154.13T 80 mm 0 ... 160 °C 160 mm Brass IP50
TB080-212.154.14T 80 mm 0 ... 250 °C 160 mm Brass IP50
TB080-212.154.22T 80 mm 0 ... 200 °C 160 mm Brass IP50
TB080-212.154.27T 80 mm 0 ... 80 °C 160 mm Brass IP50
TB080-212.162.14T 80 mm 0 ... 250 °C 100 mm Stainless steel IP50
TB080-212.162.15T 80 mm 0 ... 400 °C 100 mm Stainless steel IP50
TB080-212.162.20T 80 mm 0 ... 120 °C 100 mm Stainless steel IP50
TB080-212.162.22T 80 mm 0 ... 200 °C 100 mm Stainless steel IP50
TB080-212.162.30T 80 mm 100 ... 500 °C 100 mm Stainless steel IP50
TB080-212.162.51T 80 mm -30 ... 70 °C 100 mm Stainless steel IP50
TB080-212.162.52T 80 mm -20 ... 40 °C 100 mm Stainless steel IP50
TB080-212.162.53T 80 mm -10 ... 30 °C 100 mm Stainless steel IP50
TB080-212.162.54T 80 mm -20 ... 60 °C 100 mm Stainless steel IP50
TB080-212.162.61T 80 mm -30 ... 30 °C 100 mm Stainless steel IP50
TB080-212.164.10T 80 mm 0 ... 40 °C 160 mm Stainless steel IP50
TB080-212.164.11T 80 mm 0 ... 60 °C 160 mm Stainless steel IP50
TB080-212.164.12T 80 mm 0 ... 100 °C 160 mm Stainless steel IP50
TB080-212.164.13T 80 mm 0 ... 160 °C 160 mm Stainless steel IP50
TB080-212.164.14T 80 mm 0 ... 250 °C 160 mm Stainless steel IP50
TB080-212.164.15T 80 mm 0 ... 400 °C 160 mm Stainless steel IP50
TB080-212.164.20T 80 mm 0 ... 120 °C 160 mm Stainless steel IP50
TB080-212.164.22T 80 mm 0 ... 200 °C 160 mm Stainless steel IP50
TB080-212.164.27T 80 mm 0 ... 80 °C 160 mm Stainless steel IP50
TB080-212.164.30T 80 mm 100 ... 500 °C 160 mm Stainless steel IP50
TB080-212.164.51T 80 mm -30 ... 70 °C 160 mm Stainless steel IP50
TB080-212.164.52T 80 mm -20 ... 40 °C 160 mm Stainless steel IP50
TB080-212.164.53T 80 mm -10 ... 30 °C 160 mm Stainless steel IP50
TB080-212.164.54T 80 mm -20 ... 60 °C 160 mm Stainless steel IP50
TB080-212.164.61T 80 mm -30 ... 30 °C 160 mm Stainless steel IP50
TB080-212.166.11T 80 mm 0 ... 60 °C 250 mm Stainless steel IP50
TB080-212.166.12T 80 mm 0 ... 100 °C 250 mm Stainless steel IP50
TB080-212.166.13T 80 mm 0 ... 160 °C 250 mm Stainless steel IP50
TB080-212.166.14T 80 mm 0 ... 250 °C 250 mm Stainless steel IP50
TB080-212.166.15T 80 mm 0 ... 400 °C 250 mm Stainless steel IP50
TB080-212.166.20T 80 mm 0 ... 120 °C 250 mm Stainless steel IP50
TB080-212.166.22T 80 mm 0 ... 200 °C 250 mm Stainless steel IP50
TB080-212.166.27T 80 mm 0 ... 80 °C 250 mm Stainless steel IP50
TB080-212.166.30T 80 mm 100 ... 500 °C 250 mm Stainless steel IP50
TB080-212.166.51T 80 mm -30 ... 70 °C 250 mm Stainless steel IP50
TB080-212.166.52T 80 mm -20 ... 40 °C 250 mm Stainless steel IP50
TB080-212.166.54T 80 mm -20 ... 60 °C 250 mm Stainless steel IP50
TB080-212.166.61T 80 mm -30 ... 30 °C 250 mm Stainless steel IP50
TB080-212.167.11T 80 mm 0 ... 60 °C 400 mm Stainless steel IP50
TB080-212.167.12T 80 mm 0 ... 100 °C 400 mm Stainless steel IP50
TB080-212.167.13T 80 mm 0 ... 160 °C 400 mm Stainless steel IP50
TB080-212.167.14T 80 mm 0 ... 250 °C 400 mm Stainless steel IP50
TB080-212.167.15T 80 mm 0 ... 400 °C 400 mm Stainless steel IP50
TB080-212.167.20T 80 mm 0 ... 120 °C 400 mm Stainless steel IP50
TB080-212.167.22T 80 mm 0 ... 200 °C 400 mm Stainless steel IP50
TB080-212.167.27T 80 mm 0 ... 80 °C 400 mm Stainless steel IP50
TB080-212.167.30T 80 mm 100 ... 500 °C 400 mm Stainless steel IP50
TB080-212.167.51T 80 mm -30 ... 70 °C 400 mm Stainless steel IP50
TB080-212.167.52T 80 mm -20 ... 40 °C 400 mm Stainless steel IP50
TB080-212.167.54T 80 mm -20 ... 60 °C 400 mm Stainless steel IP50
TB080-212.167.61T 80 mm -30 ... 30 °C 400 mm Stainless steel IP50
TB100-212.152.22T 100 mm 0 ... 200 °C 100 mm Brass IP50
TB100-212.152.61T 100 mm -30 ... 30 °C 100 mm Brass IP50
TB100-212.154.22T 100 mm 0 ... 200 °C 160 mm Brass IP50
TB100-212.154.27T 100 mm 0 ... 80 °C 160 mm Brass IP50
TB100-212.154.61T 100 mm -30 ... 30 °C 160 mm Brass IP50
TB100-212.156.22T 100 mm 0 ... 200 °C 250 mm Brass IP50
TB100-212.156.27T 100 mm 0 ... 80 °C 250 mm Brass IP50
TB100-212.156.54T 100 mm -20 ... 60 °C 250 mm Brass IP50
TB100-212.156.61T 100 mm -30 ... 30 °C 250 mm Brass IP50
TB100-212.157.13T 100 mm 0 ... 160 °C 400 mm Brass IP50
TB100-212.157.22T 100 mm 0 ... 200 °C 400 mm Brass IP50
TB100-212.157.27T 100 mm 0 ... 80 °C 400 mm Brass IP50
TB100-212.157.51T 100 mm -30 ... 70 °C 400 mm Brass IP50
TB100-212.157.54T 100 mm -20 ... 60 °C 400 mm Brass IP50
TB100-212.157.61T 100 mm -30 ... 30 °C 400 mm Brass IP50
TB100-212.162.10T 100 mm 0 ... 40 °C 100 mm Stainless steel IP50
TB100-212.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP50
TB100-212.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP50
TB100-212.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP50
TB100-212.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP50
TB100-212.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP50
TB100-212.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP50
TB100-212.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP50
TB100-212.162.30T 100 mm 100 ... 500 °C 100 mm Stainless steel IP50
TB100-212.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP50
TB100-212.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP50
TB100-212.162.53T 100 mm -10 ... 30 °C 100 mm Stainless steel IP50
TB100-212.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP50
TB100-212.162.61T 100 mm -30 ... 30 °C 100 mm Stainless steel IP50
TB100-212.164.10T 100 mm 0 ... 40 °C 160 mm Stainless steel IP50
TB100-212.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP50
TB100-212.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP50
TB100-212.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP50
TB100-212.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP50
TB100-212.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP50
TB100-212.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP50
TB100-212.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP50
TB100-212.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP50
TB100-212.164.30T 100 mm 100 ... 500 °C 160 mm Stainless steel IP50
TB100-212.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP50
TB100-212.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP50
TB100-212.164.53T 100 mm -10 ... 30 °C 160 mm Stainless steel IP50
TB100-212.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP50
TB100-212.164.61T 100 mm -30 ... 30 °C 160 mm Stainless steel IP50
TB100-212.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP50
TB100-212.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP50
TB100-212.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP50
TB100-212.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP50
TB100-212.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP50
TB100-212.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP50
TB100-212.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP50
TB100-212.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP50
TB100-212.166.30T 100 mm 100 ... 500 °C 250 mm Stainless steel IP50
TB100-212.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP50
TB100-212.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP50
TB100-212.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP50
TB100-212.166.61T 100 mm -30 ... 30 °C 250 mm Stainless steel IP50
TB100-212.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP50
TB100-212.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP50
TB100-212.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP50
TB100-212.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP50
TB100-212.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP50
TB100-212.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP50
TB100-212.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP50
TB100-212.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP50
TB100-212.167.30T 100 mm 100 ... 500 °C 400 mm Stainless steel IP50
TB100-212.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP50
TB100-212.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP50
TB100-212.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP50
TB100-212.167.61T 100 mm -30 ... 30 °C 400 mm Stainless steel IP50
TBH080-212.151.14T 80 mm 0 ... 250 °C 48 mm Brass IP50
TBH080-212.151.27T 80 mm 0 ... 80 °C 48 mm Brass IP50
TBH080-212.151.54T 80 mm -20 ... 60 °C 48 mm Brass IP50
TBH080-212.152.10T 80 mm 0 ... 40 °C 68 mm Brass IP50
TBH080-212.152.14T 80 mm 0 ... 250 °C 68 mm Brass IP50
TBH080-212.152.27T 80 mm 0 ... 80 °C 68 mm Brass IP50
TBH080-212.152.53T 80 mm -10 ... 30 °C 68 mm Brass IP50
TBH080-212.152.54T 80 mm -20 ... 60 °C 68 mm Brass IP50
TBH080-212.153.10T 80 mm 0 ... 40 °C 88 mm Brass IP50
TBH080-212.153.14T 80 mm 0 ... 250 °C 88 mm Brass IP50
TBH080-212.153.27T 80 mm 0 ... 80 °C 88 mm Brass IP50
TBH080-212.153.53T 80 mm -10 ... 30 °C 88 mm Brass IP50
TBH080-212.153.54T 80 mm -20 ... 60 °C 88 mm Brass IP50
TBH100-212.151.14T 100 mm 0 ... 250 °C 48 mm Brass IP50
TBH100-212.151.27T 100 mm 0 ... 80 °C 48 mm Brass IP50
TBH100-212.151.54T 100 mm -20 ... 60 °C 48 mm Brass IP50
TBH100-212.152.10T 100 mm 0 ... 40 °C 68 mm Brass IP50
TBH100-212.152.14T 100 mm 0 ... 250 °C 68 mm Brass IP50
TBH100-212.152.27T 100 mm 0 ... 80 °C 68 mm Brass IP50
TBH100-212.152.53T 100 mm -10 ... 30 °C 68 mm Brass IP50
TBH100-212.152.54T 100 mm -20 ... 60 °C 68 mm Brass IP50
TBH100-212.153.10T 100 mm 0 ... 40 °C 88 mm Brass IP50
TBH100-212.153.14T 100 mm 0 ... 250 °C 88 mm Brass IP50
TBH100-212.153.27T 100 mm 0 ... 80 °C 88 mm Brass IP50
TBH100-212.153.53T 100 mm -10 ... 30 °C 88 mm Brass IP50
TBH100-212.153.54T 100 mm -20 ... 60 °C 88 mm Brass IP50
TBHA080-212.161.13T 80 mm 0 ... 160 °C 55 mm Stainless steel IP50
TBHA080-212.161.52T 80 mm -20 ... 40 °C 55 mm Stainless steel IP50
TBHA080-212.163.11T 80 mm 0 ... 60 °C 95 mm Stainless steel IP50
TBHA080-212.163.12T 80 mm 0 ... 100 °C 95 mm Stainless steel IP50
TBHA080-212.163.13T 80 mm 0 ... 160 °C 95 mm Stainless steel IP50
TBHA080-212.163.20T 80 mm 0 ... 120 °C 95 mm Stainless steel IP50
TBHA080-212.163.27T 80 mm 0 ... 80 °C 95 mm Stainless steel IP50
TBHA080-212.163.52T 80 mm -20 ... 40 °C 95 mm Stainless steel IP50
TBHA080-212.164.11T 80 mm 0 ... 60 °C 115 mm Stainless steel IP50
TBHA080-212.164.12T 80 mm 0 ... 100 °C 115 mm Stainless steel IP50
TBHA080-212.164.13T 80 mm 0 ... 160 °C 115 mm Stainless steel IP50
TBHA080-212.164.20T 80 mm 0 ... 120 °C 115 mm Stainless steel IP50
TBHA080-212.164.52T 80 mm -20 ... 40 °C 115 mm Stainless steel IP50
TBHA100-212.163.11T 100 mm 0 ... 60 °C 95 mm Stainless steel IP50
TBHA100-212.163.12T 100 mm 0 ... 100 °C 95 mm Stainless steel IP50
TBHA100-212.163.20T 100 mm 0 ... 120 °C 95 mm Stainless steel IP50
TBHA100-212.163.27T 100 mm 0 ... 80 °C 95 mm Stainless steel IP50
TBHA100-212.164.11T 100 mm 0 ... 60 °C 115 mm Stainless steel IP50
TBHA100-212.164.12T 100 mm 0 ... 100 °C 115 mm Stainless steel IP50
TBHA100-212.164.20T 100 mm 0 ... 120 °C 115 mm Stainless steel IP50
TBI100-211.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP67
TBI100-211.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP67
TBI100-211.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP67
TBI100-211.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP67
TBI100-211.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP67
TBI100-211.162.16T 100 mm 0 ... 600 °C 100 mm Stainless steel IP67
TBI100-211.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP67
TBI100-211.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP67
TBI100-211.162.25T 100 mm 0 ... 500 °C 100 mm Stainless steel IP67
TBI100-211.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP67
TBI100-211.162.84T 100 mm -20 ... 100 °C 100 mm Stainless steel IP67
TBI100-211.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP67
TBI100-211.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP67
TBI100-211.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP67
TBI100-211.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP67
TBI100-211.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP67
TBI100-211.164.16T 100 mm 0 ... 600 °C 160 mm Stainless steel IP67
TBI100-211.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP67
TBI100-211.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP67
TBI100-211.164.25T 100 mm 0 ... 500 °C 160 mm Stainless steel IP67
TBI100-211.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP67
TBI100-211.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP67
TBI100-211.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP67
TBI100-211.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP67
TBI100-211.164.55T 100 mm -30 ... 170 °C 160 mm Stainless steel IP67
TBI100-211.164.68T 100 mm -70 ... 50 °C 160 mm Stainless steel IP67
TBI100-211.164.84T 100 mm -20 ... 100 °C 160 mm Stainless steel IP67
TBI100-211.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP67
TBI100-211.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP67
TBI100-211.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP67
TBI100-211.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP67
TBI100-211.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP67
TBI100-211.166.16T 100 mm 0 ... 600 °C 250 mm Stainless steel IP67
TBI100-211.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP67
TBI100-211.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP67
TBI100-211.166.25T 100 mm 0 ... 500 °C 250 mm Stainless steel IP67
TBI100-211.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP67
TBI100-211.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP67
TBI100-211.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP67
TBI100-211.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP67
TBI100-211.166.55T 100 mm -30 ... 170 °C 250 mm Stainless steel IP67
TBI100-211.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP67
TBI100-211.167.25T 100 mm 0 ... 500 °C 400 mm Stainless steel IP67
TBI100-211.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP67
TBI100-211.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP67
TBI100-211.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP67
TBI100-211.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP67
TBI100-211.167.55T 100 mm -30 ... 170 °C 400 mm Stainless steel IP67
TBI100-211.167.68T 100 mm -70 ... 50 °C 400 mm Stainless steel IP67
TBI100-211.167.84T 100 mm -20 ... 100 °C 400 mm Stainless steel IP67
TBI100-212.162.10T 100 mm 0 ... 40 °C 100 mm Stainless steel IP67
TBI100-212.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP67
TBI100-212.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP67
TBI100-212.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP67
TBI100-212.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP67
TBI100-212.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP67
TBI100-212.162.16T 100 mm 0 ... 600 °C 100 mm Stainless steel IP67
TBI100-212.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP67
TBI100-212.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP67
TBI100-212.162.25T 100 mm 0 ... 500 °C 100 mm Stainless steel IP67
TBI100-212.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP67
TBI100-212.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP67
TBI100-212.162.53T 100 mm -10 ... 30 °C 100 mm Stainless steel IP67
TBI100-212.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP67
TBI100-212.162.55T 100 mm -30 ... 170 °C 100 mm Stainless steel IP67
TBI100-212.162.68T 100 mm -70 ... 50 °C 100 mm Stainless steel IP67
TBI100-212.162.84T 100 mm -20 ... 100 °C 100 mm Stainless steel IP67
TBI100-212.164.10T 100 mm 0 ... 40 °C 160 mm Stainless steel IP67
TBI100-212.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP67
TBI100-212.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP67
TBHA080-212.162.13T 80 mm 0 ... 160 °C 75 mm Stainless steel IP50
TBHA080-212.162.52T 80 mm -20 ... 40 °C 75 mm Stainless steel IP50
TBI100-211.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP67
TBI100-211.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP67
TBI100-211.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP67
TBI100-211.162.55T 100 mm -30 ... 170 °C 100 mm Stainless steel IP67
TBI100-211.162.68T 100 mm -70 ... 50 °C 100 mm Stainless steel IP67
TBI100-211.166.68T 100 mm -70 ... 50 °C 250 mm Stainless steel IP67
TBI100-211.166.84T 100 mm -20 ... 100 °C 250 mm Stainless steel IP67
TBI100-211.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP67
TBI100-211.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP67
TBI100-211.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP67
TBI100-211.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP67
TBI100-211.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP67
TBI100-211.167.16T 100 mm 0 ... 600 °C 400 mm Stainless steel IP67
TBI100-211.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP67
TBI100-212.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP67
TBI100-212.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP67
TBI100-212.164.16T 100 mm 0 ... 600 °C 160 mm Stainless steel IP67
TBI100-212.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP67
TBI100-212.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP67
TBI100-212.164.25T 100 mm 0 ... 500 °C 160 mm Stainless steel IP67
TBI100-212.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP67
TBI100-212.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP67
TBI100-212.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP67
TBI100-212.167.25T 100 mm 0 ... 500 °C 400 mm Stainless steel IP67
TBI100-212.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP67
TBI100-212.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP67
TBI100-212.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP67
TBI100-214.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP67
TBI100-214.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP67
TBI100-214.164.25T 100 mm 0 ... 500 °C 160 mm Stainless steel IP67
TBI100-214.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP67
TBI100-214.167.16T 100 mm 0 ... 600 °C 400 mm Stainless steel IP67
TBI100-214.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP67
TBI100-212.164.53T 100 mm -10 ... 30 °C 160 mm Stainless steel IP67
TBI100-212.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP67
TBI100-212.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP67
TBI100-212.167.55T 100 mm -30 ... 170 °C 400 mm Stainless steel IP67
TBI100-214.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP67
TBI100-214.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP67
TBI100-214.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP67
TBI100-214.167.25T 100 mm 0 ... 500 °C 400 mm Stainless steel IP67
TBI100-214.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP67
TBI100-214.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP67
TBI100-212.167.68T 100 mm -70 ... 50 °C 400 mm Stainless steel IP67
TBI100-212.164.55T 100 mm -30 ... 170 °C 160 mm Stainless steel IP67
TBI100-212.167.84T 100 mm -20 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP67
TBI100-214.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP67
TBI100-212.164.68T 100 mm -70 ... 50 °C 160 mm Stainless steel IP67
TBI100-214.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP67
TBI100-214.164.55T 100 mm -30 ... 170 °C 160 mm Stainless steel IP67
TBI100-214.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP67
TBI100-212.164.84T 100 mm -20 ... 100 °C 160 mm Stainless steel IP67
TBI100-214.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP67
TBI100-214.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP67
TBI100-214.164.68T 100 mm -70 ... 50 °C 160 mm Stainless steel IP67
TBI100-212.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP67
TBI100-214.167.55T 100 mm -30 ... 170 °C 400 mm Stainless steel IP67
TBI100-214.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP67
TBI100-214.164.84T 100 mm -20 ... 100 °C 160 mm Stainless steel IP67
TBI100-212.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP67
TBI100-214.167.68T 100 mm -70 ... 50 °C 400 mm Stainless steel IP67
TBI100-214.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP67
TBI100-214.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP67
TBI100-212.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP67
TBI100-214.167.84T 100 mm -20 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP67
TBI100-214.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP67
TBI100-212.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP67
TBI100-214.162.16T 100 mm 0 ... 600 °C 100 mm Stainless steel IP67
TBI100-214.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP67
TBI100-212.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP67
TBHA080-212.164.27T 80 mm 0 ... 80 °C 115 mm Stainless steel IP50
TBI100-214.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP67
TBI100-214.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP67
TBHA100-212.161.52T 100 mm -20 ... 40 °C 55 mm Stainless steel IP50
TBI100-212.166.16T 100 mm 0 ... 600 °C 250 mm Stainless steel IP67
TBHA100-212.161.13T 100 mm 0 ... 160 °C 55 mm Stainless steel IP50
TBI100-214.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP67
TBI100-214.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP67
TBI100-212.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP67
TBI100-214.166.16T 100 mm 0 ... 600 °C 250 mm Stainless steel IP67
TBI100-214.162.25T 100 mm 0 ... 500 °C 100 mm Stainless steel IP67
TBI100-212.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP67
TBHA100-212.162.52T 100 mm -20 ... 40 °C 75 mm Stainless steel IP50
TBI100-214.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP67
TBHA100-212.162.13T 100 mm 0 ... 160 °C 75 mm Stainless steel IP50
TBI100-214.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP67
TBI100-212.166.25T 100 mm 0 ... 500 °C 250 mm Stainless steel IP67
TBI100-214.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP67
TBHA100-212.163.52T 100 mm -20 ... 40 °C 95 mm Stainless steel IP50
TBI100-214.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP67
TBI100-212.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP67
TBHA100-212.163.13T 100 mm 0 ... 160 °C 95 mm Stainless steel IP50
TBI100-214.166.25T 100 mm 0 ... 500 °C 250 mm Stainless steel IP67
TBI100-214.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP67
TBI100-212.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP67
TBI100-214.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP67
TBHA100-212.164.52T 100 mm -20 ... 40 °C 115 mm Stainless steel IP50
TBI100-214.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP67
TBHA100-212.164.13T 100 mm 0 ... 160 °C 115 mm Stainless steel IP50
TBI100-212.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP67
TBI100-214.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP67
TBI100-214.162.55T 100 mm -30 ... 170 °C 100 mm Stainless steel IP67
TBHA100-212.164.27T 100 mm 0 ... 80 °C 115 mm Stainless steel IP50
TBI100-212.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP67
TBI100-214.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP67
TBI100-214.162.68T 100 mm -70 ... 50 °C 100 mm Stainless steel IP67
TBI100-214.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP67
TBI100-212.166.55T 100 mm -30 ... 170 °C 250 mm Stainless steel IP67
TBI100-214.162.84T 100 mm -20 ... 100 °C 100 mm Stainless steel IP67
TBI100-214.166.55T 100 mm -30 ... 170 °C 250 mm Stainless steel IP67
TBI100-212.166.68T 100 mm -70 ... 50 °C 250 mm Stainless steel IP67
TBI100-214.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP67
TBI100-214.166.68T 100 mm -70 ... 50 °C 250 mm Stainless steel IP67
TBI100-214.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP67
TBI100-212.166.84T 100 mm -20 ... 100 °C 250 mm Stainless steel IP67
TBI100-214.166.84T 100 mm -20 ... 100 °C 250 mm Stainless steel IP67
TBI100-214.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP67
TBI100-212.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP67
TBI100-214.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP67
TBI100-214.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP67
TBI100-212.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP67
TBI100-212.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP67
TBI100-214.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP67
TBI100-214.164.16T 100 mm 0 ... 600 °C 160 mm Stainless steel IP67
TBI100-212.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP67
TBI100-214.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP67
TBI100-212.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP67
TBI100-212.167.16T 100 mm 0 ... 600 °C 400 mm Stainless steel IP67
TBI100-212.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP67
TBI100-212.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP67
TB080-212.152.11T 80 mm 0 ... 60 °C 100 mm Brass IP50
TB080-212.152.12T 80 mm 0 ... 100 °C 100 mm Brass IP50
TB080-212.152.13T 80 mm 0 ... 160 °C 100 mm Brass IP50
TB080-212.156.52T 80 mm -20 ... 40 °C 250 mm Brass IP50
TB080-212.157.20T 80 mm 0 ... 120 °C 400 mm Brass IP50
TB080-212.152.20T 80 mm 0 ... 120 °C 100 mm Brass IP50
TB080-212.152.52T 80 mm -20 ... 40 °C 100 mm Brass IP50
TB080-212.154.11T 80 mm 0 ... 60 °C 160 mm Brass IP50
TB080-212.154.12T 80 mm 0 ... 100 °C 160 mm Brass IP50
TB080-212.154.20T 80 mm 0 ... 120 °C 160 mm Brass IP50
TB080-212.154.52T 80 mm -20 ... 40 °C 160 mm Brass IP50
TB100-212.152.10T 100 mm 0 ... 40 °C 100 mm Brass IP50
TB100-212.152.11T 100 mm 0 ... 60 °C 100 mm Brass IP50
TB100-212.152.12T 100 mm 0 ... 100 °C 100 mm Brass IP50
TB100-212.152.13T 100 mm 0 ... 160 °C 100 mm Brass IP50
TB100-212.152.14T 100 mm 0 ... 250 °C 100 mm Brass IP50
TB100-212.152.20T 100 mm 0 ... 120 °C 100 mm Brass IP50
TB100-212.152.27T 100 mm 0 ... 80 °C 100 mm Brass IP50
TB100-212.152.51T 100 mm -30 ... 70 °C 100 mm Brass IP50
TB100-212.152.52T 100 mm -20 ... 40 °C 100 mm Brass IP50
TB100-212.152.53T 100 mm -10 ... 30 °C 100 mm Brass IP50
TB100-212.152.54T 100 mm -20 ... 60 °C 100 mm Brass IP50
TB100-212.154.10T 100 mm 0 ... 40 °C 160 mm Brass IP50
TB100-212.154.11T 100 mm 0 ... 60 °C 160 mm Brass IP50
TB100-212.154.12T 100 mm 0 ... 100 °C 160 mm Brass IP50
TB100-212.154.13T 100 mm 0 ... 160 °C 160 mm Brass IP50
TB100-212.154.14T 100 mm 0 ... 250 °C 160 mm Brass IP50
TB100-212.154.20T 100 mm 0 ... 120 °C 160 mm Brass IP50
TB100-212.154.51T 100 mm -30 ... 70 °C 160 mm Brass IP50
TB100-212.154.52T 100 mm -20 ... 40 °C 160 mm Brass IP50
TB100-212.154.53T 100 mm -10 ... 30 °C 160 mm Brass IP50
TB100-212.154.54T 100 mm -20 ... 60 °C 160 mm Brass IP50
TB100-212.156.11T 100 mm 0 ... 60 °C 250 mm Brass IP50
TB100-212.156.12T 100 mm 0 ... 100 °C 250 mm Brass IP50
TB100-212.156.13T 100 mm 0 ... 160 °C 250 mm Brass IP50
TB100-212.156.14T 100 mm 0 ... 250 °C 250 mm Brass IP50
TB100-212.156.20T 100 mm 0 ... 120 °C 250 mm Brass IP50
TB100-212.156.51T 100 mm -30 ... 70 °C 250 mm Brass IP50
TB100-212.156.52T 100 mm -20 ... 40 °C 250 mm Brass IP50
TB100-212.157.11T 100 mm 0 ... 60 °C 400 mm Brass IP50
TB100-212.157.12T 100 mm 0 ... 100 °C 400 mm Brass IP50
TB100-212.157.14T 100 mm 0 ... 250 °C 400 mm Brass IP50
TB100-212.157.20T 100 mm 0 ... 120 °C 400 mm Brass IP50
TB100-212.157.52T 100 mm -20 ... 40 °C 400 mm Brass IP50
TB100-212.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP50
TBH080-212.151.11T 80 mm 0 ... 60 °C 48 mm Brass IP50
TBH080-212.151.12T 80 mm 0 ... 100 °C 48 mm Brass IP50
TBH080-212.151.20T 80 mm 0 ... 120 °C 48 mm Brass IP50
TBH080-212.151.52T 80 mm -20 ... 40 °C 48 mm Brass IP50
TBH080-212.152.11T 80 mm 0 ... 60 °C 68 mm Brass IP50
TBH080-212.152.12T 80 mm 0 ... 100 °C 68 mm Brass IP50
TBH080-212.152.20T 80 mm 0 ... 120 °C 68 mm Brass IP50
TBH080-212.152.52T 80 mm -20 ... 40 °C 68 mm Brass IP50
TBH080-212.153.11T 80 mm 0 ... 60 °C 88 mm Brass IP50
TBH080-212.153.12T 80 mm 0 ... 100 °C 88 mm Brass IP50
TBH080-212.153.20T 80 mm 0 ... 120 °C 88 mm Brass IP50
TBH080-212.153.52T 80 mm -20 ... 40 °C 88 mm Brass IP50
TBH100-212.151.11T 100 mm 0 ... 60 °C 48 mm Brass IP50
TBH100-212.151.12T 100 mm 0 ... 100 °C 48 mm Brass IP50
TBH100-212.151.20T 100 mm 0 ... 120 °C 48 mm Brass IP50
TBH100-212.151.52T 100 mm -20 ... 40 °C 48 mm Brass IP50
TBH100-212.152.11T 100 mm 0 ... 60 °C 68 mm Brass IP50
TBH100-212.152.12T 100 mm 0 ... 100 °C 68 mm Brass IP50
TBH100-212.152.20T 100 mm 0 ... 120 °C 68 mm Brass IP50
TBH100-212.152.52T 100 mm -20 ... 40 °C 68 mm Brass IP50
TBH100-212.153.11T 100 mm 0 ... 60 °C 88 mm Brass IP50
TBH100-212.153.12T 100 mm 0 ... 100 °C 88 mm Brass IP50
TBH100-212.153.20T 100 mm 0 ... 120 °C 88 mm Brass IP50
TBH100-212.153.52T 100 mm -20 ... 40 °C 88 mm Brass IP50
TBHA080-212.161.11T 80 mm 0 ... 60 °C 55 mm Stainless steel IP50
TBHA080-212.161.12T 80 mm 0 ... 100 °C 55 mm Stainless steel IP50
TBHA080-212.161.20T 80 mm 0 ... 120 °C 55 mm Stainless steel IP50
TBHA080-212.162.11T 80 mm 0 ... 60 °C 75 mm Stainless steel IP50
TBHA080-212.162.12T 80 mm 0 ... 100 °C 75 mm Stainless steel IP50
TBHA100-212.161.11T 100 mm 0 ... 60 °C 55 mm Stainless steel IP50
TBHA100-212.161.12T 100 mm 0 ... 100 °C 55 mm Stainless steel IP50
TBHA100-212.161.20T 100 mm 0 ... 120 °C 55 mm Stainless steel IP50
TBHA100-212.162.11T 100 mm 0 ... 60 °C 75 mm Stainless steel IP50
TBHA100-212.162.12T 100 mm 0 ... 100 °C 75 mm Stainless steel IP50
TBHA100-212.162.20T 100 mm 0 ... 120 °C 75 mm Stainless steel IP50
TBHA100-212.162.27T 100 mm 0 ... 80 °C 75 mm Stainless steel IP50
TBI100-212.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP67
TBI100-212.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP67
TBHA080-212.162.20T 80 mm 0 ... 120 °C 75 mm Stainless steel IP50
TBHA080-212.162.27T 80 mm 0 ... 80 °C 75 mm Stainless steel IP50
TBHA080-212.161.27T 80 mm 0 ... 80 °C 55 mm Stainless steel IP50
TBHA100-212.161.27T 100 mm 0 ... 80 °C 55 mm Stainless steel IP50
TBL100-232.151.70T 100 mm -30 ... 50 °C 165 mm Brass IP50
TBL100-232.151.54T 100 mm -20 ... 60 °C 165 mm Brass IP50
TBL100-232.151.27T 100 mm 0 ... 80 °C 165 mm Brass IP50
TBL100-232.151.12T 100 mm 0 ... 100 °C 165 mm Brass IP50
TB080-212.152.10T 80 mm 0 ... 40 °C 100 mm Brass IP50
TB080-212.152.14T 80 mm 0 ... 250 °C 100 mm Brass IP50
TB080-212.154.53T 80 mm -10 ... 30 °C 160 mm Brass IP50
TB080-212.154.54T 80 mm -20 ... 60 °C 160 mm Brass IP50
TB080-212.156.11T 80 mm 0 ... 60 °C 250 mm Brass IP50
TB080-212.156.12T 80 mm 0 ... 100 °C 250 mm Brass IP50
TB080-212.156.13T 80 mm 0 ... 160 °C 250 mm Brass IP50
TB080-212.156.14T 80 mm 0 ... 250 °C 250 mm Brass IP50
TB080-212.156.20T 80 mm 0 ... 120 °C 250 mm Brass IP50
TB080-212.156.22T 80 mm 0 ... 200 °C 250 mm Brass IP50
TB080-212.156.27T 80 mm 0 ... 80 °C 250 mm Brass IP50
TB080-212.156.54T 80 mm -20 ... 60 °C 250 mm Brass IP50
TB080-212.157.11T 80 mm 0 ... 60 °C 400 mm Brass IP50
TB080-212.157.12T 80 mm 0 ... 100 °C 400 mm Brass IP50
TB080-212.157.13T 80 mm 0 ... 160 °C 400 mm Brass IP50
TB080-212.157.14T 80 mm 0 ... 250 °C 400 mm Brass IP50
TB080-212.157.22T 80 mm 0 ... 200 °C 400 mm Brass IP50
TB080-212.157.27T 80 mm 0 ... 80 °C 400 mm Brass IP50
TB080-212.157.52T 80 mm -20 ... 40 °C 400 mm Brass IP50
TB080-212.157.54T 80 mm -20 ... 60 °C 400 mm Brass IP50
TB080-212.162.10T 80 mm 0 ... 40 °C 100 mm Stainless steel IP50
TB080-212.162.11T 80 mm 0 ... 60 °C 100 mm Stainless steel IP50
TB080-212.162.12T 80 mm 0 ... 100 °C 100 mm Stainless steel IP50
TB080-212.162.13T 80 mm 0 ... 160 °C 100 mm Stainless steel IP50
TB080-212.162.27T 80 mm 0 ... 80 °C 100 mm Stainless steel IP50
TB080-212.152.22T 80 mm 0 ... 200 °C 100 mm Brass IP50
TB080-212.152.27T 80 mm 0 ... 80 °C 100 mm Brass IP50
TB080-212.152.53T 80 mm -10 ... 30 °C 100 mm Brass IP50
TB080-212.152.54T 80 mm -20 ... 60 °C 100 mm Brass IP50
TB080-212.154.10T 80 mm 0 ... 40 °C 160 mm Brass IP50
TB080-212.154.13T 80 mm 0 ... 160 °C 160 mm Brass IP50
TB080-212.154.14T 80 mm 0 ... 250 °C 160 mm Brass IP50
TB080-212.154.22T 80 mm 0 ... 200 °C 160 mm Brass IP50
TB080-212.154.27T 80 mm 0 ... 80 °C 160 mm Brass IP50
TB080-212.162.14T 80 mm 0 ... 250 °C 100 mm Stainless steel IP50
TB080-212.162.15T 80 mm 0 ... 400 °C 100 mm Stainless steel IP50
TB080-212.162.20T 80 mm 0 ... 120 °C 100 mm Stainless steel IP50
TB080-212.162.22T 80 mm 0 ... 200 °C 100 mm Stainless steel IP50
TB080-212.162.30T 80 mm 100 ... 500 °C 100 mm Stainless steel IP50
TB080-212.162.51T 80 mm -30 ... 70 °C 100 mm Stainless steel IP50
TB080-212.162.52T 80 mm -20 ... 40 °C 100 mm Stainless steel IP50
TB080-212.162.53T 80 mm -10 ... 30 °C 100 mm Stainless steel IP50
TB080-212.162.54T 80 mm -20 ... 60 °C 100 mm Stainless steel IP50
TB080-212.162.61T 80 mm -30 ... 30 °C 100 mm Stainless steel IP50
TB080-212.164.10T 80 mm 0 ... 40 °C 160 mm Stainless steel IP50
TB080-212.164.11T 80 mm 0 ... 60 °C 160 mm Stainless steel IP50
TB080-212.164.12T 80 mm 0 ... 100 °C 160 mm Stainless steel IP50
TB080-212.164.13T 80 mm 0 ... 160 °C 160 mm Stainless steel IP50
TB080-212.164.14T 80 mm 0 ... 250 °C 160 mm Stainless steel IP50
TB080-212.164.15T 80 mm 0 ... 400 °C 160 mm Stainless steel IP50
TB080-212.164.20T 80 mm 0 ... 120 °C 160 mm Stainless steel IP50
TB080-212.164.22T 80 mm 0 ... 200 °C 160 mm Stainless steel IP50
TB080-212.164.27T 80 mm 0 ... 80 °C 160 mm Stainless steel IP50
TB080-212.164.30T 80 mm 100 ... 500 °C 160 mm Stainless steel IP50
TB080-212.164.51T 80 mm -30 ... 70 °C 160 mm Stainless steel IP50
TB080-212.164.52T 80 mm -20 ... 40 °C 160 mm Stainless steel IP50
TB080-212.164.53T 80 mm -10 ... 30 °C 160 mm Stainless steel IP50
TB080-212.164.54T 80 mm -20 ... 60 °C 160 mm Stainless steel IP50
TB080-212.164.61T 80 mm -30 ... 30 °C 160 mm Stainless steel IP50
TB080-212.166.11T 80 mm 0 ... 60 °C 250 mm Stainless steel IP50
TB080-212.166.12T 80 mm 0 ... 100 °C 250 mm Stainless steel IP50
TB080-212.166.13T 80 mm 0 ... 160 °C 250 mm Stainless steel IP50
TB080-212.166.14T 80 mm 0 ... 250 °C 250 mm Stainless steel IP50
TB080-212.166.15T 80 mm 0 ... 400 °C 250 mm Stainless steel IP50
TB080-212.166.20T 80 mm 0 ... 120 °C 250 mm Stainless steel IP50
TB080-212.166.22T 80 mm 0 ... 200 °C 250 mm Stainless steel IP50
TB080-212.166.27T 80 mm 0 ... 80 °C 250 mm Stainless steel IP50
TB080-212.166.30T 80 mm 100 ... 500 °C 250 mm Stainless steel IP50
TB080-212.166.51T 80 mm -30 ... 70 °C 250 mm Stainless steel IP50
TB080-212.166.52T 80 mm -20 ... 40 °C 250 mm Stainless steel IP50
TB080-212.166.54T 80 mm -20 ... 60 °C 250 mm Stainless steel IP50
TB080-212.166.61T 80 mm -30 ... 30 °C 250 mm Stainless steel IP50
TB080-212.167.11T 80 mm 0 ... 60 °C 400 mm Stainless steel IP50
TB080-212.167.12T 80 mm 0 ... 100 °C 400 mm Stainless steel IP50
TB080-212.167.13T 80 mm 0 ... 160 °C 400 mm Stainless steel IP50
TB080-212.167.14T 80 mm 0 ... 250 °C 400 mm Stainless steel IP50
TB080-212.167.15T 80 mm 0 ... 400 °C 400 mm Stainless steel IP50
TB080-212.167.20T 80 mm 0 ... 120 °C 400 mm Stainless steel IP50
TB080-212.167.22T 80 mm 0 ... 200 °C 400 mm Stainless steel IP50
TB080-212.167.27T 80 mm 0 ... 80 °C 400 mm Stainless steel IP50
TB080-212.167.30T 80 mm 100 ... 500 °C 400 mm Stainless steel IP50
TB080-212.167.51T 80 mm -30 ... 70 °C 400 mm Stainless steel IP50
TB080-212.167.52T 80 mm -20 ... 40 °C 400 mm Stainless steel IP50
TB080-212.167.54T 80 mm -20 ... 60 °C 400 mm Stainless steel IP50
TB080-212.167.61T 80 mm -30 ... 30 °C 400 mm Stainless steel IP50
TB100-212.152.22T 100 mm 0 ... 200 °C 100 mm Brass IP50
TB100-212.152.61T 100 mm -30 ... 30 °C 100 mm Brass IP50
TB100-212.154.22T 100 mm 0 ... 200 °C 160 mm Brass IP50
TB100-212.154.27T 100 mm 0 ... 80 °C 160 mm Brass IP50
TB100-212.154.61T 100 mm -30 ... 30 °C 160 mm Brass IP50
TB100-212.156.22T 100 mm 0 ... 200 °C 250 mm Brass IP50
TB100-212.156.27T 100 mm 0 ... 80 °C 250 mm Brass IP50
TB100-212.156.54T 100 mm -20 ... 60 °C 250 mm Brass IP50
TB100-212.156.61T 100 mm -30 ... 30 °C 250 mm Brass IP50
TB100-212.157.13T 100 mm 0 ... 160 °C 400 mm Brass IP50
TB100-212.157.22T 100 mm 0 ... 200 °C 400 mm Brass IP50
TB100-212.157.27T 100 mm 0 ... 80 °C 400 mm Brass IP50
TB100-212.157.51T 100 mm -30 ... 70 °C 400 mm Brass IP50
TB100-212.157.54T 100 mm -20 ... 60 °C 400 mm Brass IP50
TB100-212.157.61T 100 mm -30 ... 30 °C 400 mm Brass IP50
TB100-212.162.10T 100 mm 0 ... 40 °C 100 mm Stainless steel IP50
TB100-212.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP50
TB100-212.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP50
TB100-212.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP50
TB100-212.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP50
TB100-212.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP50
TB100-212.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP50
TB100-212.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP50
TB100-212.162.30T 100 mm 100 ... 500 °C 100 mm Stainless steel IP50
TB100-212.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP50
TB100-212.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP50
TB100-212.162.53T 100 mm -10 ... 30 °C 100 mm Stainless steel IP50
TB100-212.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP50
TB100-212.162.61T 100 mm -30 ... 30 °C 100 mm Stainless steel IP50
TB100-212.164.10T 100 mm 0 ... 40 °C 160 mm Stainless steel IP50
TB100-212.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP50
TB100-212.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP50
TB100-212.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP50
TB100-212.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP50
TB100-212.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP50
TB100-212.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP50
TB100-212.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP50
TB100-212.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP50
TB100-212.164.30T 100 mm 100 ... 500 °C 160 mm Stainless steel IP50
TB100-212.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP50
TB100-212.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP50
TB100-212.164.53T 100 mm -10 ... 30 °C 160 mm Stainless steel IP50
TB100-212.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP50
TB100-212.164.61T 100 mm -30 ... 30 °C 160 mm Stainless steel IP50
TB100-212.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP50
TB100-212.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP50
TB100-212.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP50
TB100-212.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP50
TB100-212.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP50
TB100-212.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP50
TB100-212.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP50
TB100-212.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP50
TB100-212.166.30T 100 mm 100 ... 500 °C 250 mm Stainless steel IP50
TB100-212.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP50
TB100-212.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP50
TB100-212.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP50
TB100-212.166.61T 100 mm -30 ... 30 °C 250 mm Stainless steel IP50
TB100-212.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP50
TB100-212.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP50
TB100-212.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP50
TB100-212.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP50
TB100-212.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP50
TB100-212.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP50
TB100-212.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP50
TB100-212.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP50
TB100-212.167.30T 100 mm 100 ... 500 °C 400 mm Stainless steel IP50
TB100-212.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP50
TB100-212.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP50
TB100-212.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP50
TB100-212.167.61T 100 mm -30 ... 30 °C 400 mm Stainless steel IP50
TBH080-212.151.14T 80 mm 0 ... 250 °C 48 mm Brass IP50
TBH080-212.151.27T 80 mm 0 ... 80 °C 48 mm Brass IP50
TBH080-212.151.54T 80 mm -20 ... 60 °C 48 mm Brass IP50
TBH080-212.152.10T 80 mm 0 ... 40 °C 68 mm Brass IP50
TBH080-212.152.14T 80 mm 0 ... 250 °C 68 mm Brass IP50
TBH080-212.152.27T 80 mm 0 ... 80 °C 68 mm Brass IP50
TBH080-212.152.53T 80 mm -10 ... 30 °C 68 mm Brass IP50
TBH080-212.152.54T 80 mm -20 ... 60 °C 68 mm Brass IP50
TBH080-212.153.10T 80 mm 0 ... 40 °C 88 mm Brass IP50
TBH080-212.153.14T 80 mm 0 ... 250 °C 88 mm Brass IP50
TBH080-212.153.27T 80 mm 0 ... 80 °C 88 mm Brass IP50
TBH080-212.153.53T 80 mm -10 ... 30 °C 88 mm Brass IP50
TBH080-212.153.54T 80 mm -20 ... 60 °C 88 mm Brass IP50
TBH100-212.151.14T 100 mm 0 ... 250 °C 48 mm Brass IP50
TBH100-212.151.27T 100 mm 0 ... 80 °C 48 mm Brass IP50
TBH100-212.151.54T 100 mm -20 ... 60 °C 48 mm Brass IP50
TBH100-212.152.10T 100 mm 0 ... 40 °C 68 mm Brass IP50
TBH100-212.152.14T 100 mm 0 ... 250 °C 68 mm Brass IP50
TBH100-212.152.27T 100 mm 0 ... 80 °C 68 mm Brass IP50
TBH100-212.152.53T 100 mm -10 ... 30 °C 68 mm Brass IP50
TBH100-212.152.54T 100 mm -20 ... 60 °C 68 mm Brass IP50
TBH100-212.153.10T 100 mm 0 ... 40 °C 88 mm Brass IP50
TBH100-212.153.14T 100 mm 0 ... 250 °C 88 mm Brass IP50
TBH100-212.153.27T 100 mm 0 ... 80 °C 88 mm Brass IP50
TBH100-212.153.53T 100 mm -10 ... 30 °C 88 mm Brass IP50
TBH100-212.153.54T 100 mm -20 ... 60 °C 88 mm Brass IP50
TBHA080-212.161.13T 80 mm 0 ... 160 °C 55 mm Stainless steel IP50
TBHA080-212.161.52T 80 mm -20 ... 40 °C 55 mm Stainless steel IP50
TBHA080-212.163.11T 80 mm 0 ... 60 °C 95 mm Stainless steel IP50
TBHA080-212.163.12T 80 mm 0 ... 100 °C 95 mm Stainless steel IP50
TBHA080-212.163.13T 80 mm 0 ... 160 °C 95 mm Stainless steel IP50
TBHA080-212.163.20T 80 mm 0 ... 120 °C 95 mm Stainless steel IP50
TBHA080-212.163.27T 80 mm 0 ... 80 °C 95 mm Stainless steel IP50
TBHA080-212.163.52T 80 mm -20 ... 40 °C 95 mm Stainless steel IP50
TBHA080-212.164.11T 80 mm 0 ... 60 °C 115 mm Stainless steel IP50
TBHA080-212.164.12T 80 mm 0 ... 100 °C 115 mm Stainless steel IP50
TBHA080-212.164.13T 80 mm 0 ... 160 °C 115 mm Stainless steel IP50
TBHA080-212.164.20T 80 mm 0 ... 120 °C 115 mm Stainless steel IP50
TBHA080-212.164.52T 80 mm -20 ... 40 °C 115 mm Stainless steel IP50
TBHA100-212.163.11T 100 mm 0 ... 60 °C 95 mm Stainless steel IP50
TBHA100-212.163.12T 100 mm 0 ... 100 °C 95 mm Stainless steel IP50
TBHA100-212.163.20T 100 mm 0 ... 120 °C 95 mm Stainless steel IP50
TBHA100-212.163.27T 100 mm 0 ... 80 °C 95 mm Stainless steel IP50
TBHA100-212.164.11T 100 mm 0 ... 60 °C 115 mm Stainless steel IP50
TBHA100-212.164.12T 100 mm 0 ... 100 °C 115 mm Stainless steel IP50
TBHA100-212.164.20T 100 mm 0 ... 120 °C 115 mm Stainless steel IP50
TBI100-211.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP67
TBI100-211.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP67
TBI100-211.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP67
TBI100-211.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP67
TBI100-211.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP67
TBI100-211.162.16T 100 mm 0 ... 600 °C 100 mm Stainless steel IP67
TBI100-211.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP67
TBI100-211.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP67
TBI100-211.162.25T 100 mm 0 ... 500 °C 100 mm Stainless steel IP67
TBI100-211.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP67
TBI100-211.162.84T 100 mm -20 ... 100 °C 100 mm Stainless steel IP67
TBI100-211.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP67
TBI100-211.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP67
TBI100-211.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP67
TBI100-211.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP67
TBI100-211.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP67
TBI100-211.164.16T 100 mm 0 ... 600 °C 160 mm Stainless steel IP67
TBI100-211.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP67
TBI100-211.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP67
TBI100-211.164.25T 100 mm 0 ... 500 °C 160 mm Stainless steel IP67
TBI100-211.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP67
TBI100-211.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP67
TBI100-211.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP67
TBI100-211.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP67
TBI100-211.164.55T 100 mm -30 ... 170 °C 160 mm Stainless steel IP67
TBI100-211.164.68T 100 mm -70 ... 50 °C 160 mm Stainless steel IP67
TBI100-211.164.84T 100 mm -20 ... 100 °C 160 mm Stainless steel IP67
TBI100-211.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP67
TBI100-211.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP67
TBI100-211.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP67
TBI100-211.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP67
TBI100-211.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP67
TBI100-211.166.16T 100 mm 0 ... 600 °C 250 mm Stainless steel IP67
TBI100-211.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP67
TBI100-211.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP67
TBI100-211.166.25T 100 mm 0 ... 500 °C 250 mm Stainless steel IP67
TBI100-211.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP67
TBI100-211.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP67
TBI100-211.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP67
TBI100-211.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP67
TBI100-211.166.55T 100 mm -30 ... 170 °C 250 mm Stainless steel IP67
TBI100-211.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP67
TBI100-211.167.25T 100 mm 0 ... 500 °C 400 mm Stainless steel IP67
TBI100-211.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP67
TBI100-211.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP67
TBI100-211.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP67
TBI100-211.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP67
TBI100-211.167.55T 100 mm -30 ... 170 °C 400 mm Stainless steel IP67
TBI100-211.167.68T 100 mm -70 ... 50 °C 400 mm Stainless steel IP67
TBI100-211.167.84T 100 mm -20 ... 100 °C 400 mm Stainless steel IP67
TBI100-212.162.10T 100 mm 0 ... 40 °C 100 mm Stainless steel IP67
TBI100-212.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP67
TBI100-212.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP67
TBI100-212.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP67
TBI100-212.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP67
TBI100-212.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP67
TBI100-212.162.16T 100 mm 0 ... 600 °C 100 mm Stainless steel IP67
TBI100-212.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP67
TBI100-212.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP67
TBI100-212.162.25T 100 mm 0 ... 500 °C 100 mm Stainless steel IP67
TBI100-212.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP67
TBI100-212.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP67
TBI100-212.162.53T 100 mm -10 ... 30 °C 100 mm Stainless steel IP67
TBI100-212.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP67
TBI100-212.162.55T 100 mm -30 ... 170 °C 100 mm Stainless steel IP67
TBI100-212.162.68T 100 mm -70 ... 50 °C 100 mm Stainless steel IP67
TBI100-212.162.84T 100 mm -20 ... 100 °C 100 mm Stainless steel IP67
TBI100-212.164.10T 100 mm 0 ... 40 °C 160 mm Stainless steel IP67
TBI100-212.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP67
TBI100-212.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP67
TBHA080-212.162.13T 80 mm 0 ... 160 °C 75 mm Stainless steel IP50
TBHA080-212.162.52T 80 mm -20 ... 40 °C 75 mm Stainless steel IP50
TBI100-211.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP67
TBI100-211.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP67
TBI100-211.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP67
TBI100-211.162.55T 100 mm -30 ... 170 °C 100 mm Stainless steel IP67
TBI100-211.162.68T 100 mm -70 ... 50 °C 100 mm Stainless steel IP67
TBI100-211.166.68T 100 mm -70 ... 50 °C 250 mm Stainless steel IP67
TBI100-211.166.84T 100 mm -20 ... 100 °C 250 mm Stainless steel IP67
TBI100-211.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP67
TBI100-211.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP67
TBI100-211.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP67
TBI100-211.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP67
TBI100-211.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP67
TBI100-211.167.16T 100 mm 0 ... 600 °C 400 mm Stainless steel IP67
TBI100-211.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP67
TBI100-212.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP67
TBI100-212.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP67
TBI100-212.164.16T 100 mm 0 ... 600 °C 160 mm Stainless steel IP67
TBI100-212.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP67
TBI100-212.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP67
TBI100-212.164.25T 100 mm 0 ... 500 °C 160 mm Stainless steel IP67
TBI100-212.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP67
TBI100-212.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP67
TBI100-212.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP67
TBI100-212.167.25T 100 mm 0 ... 500 °C 400 mm Stainless steel IP67
TBI100-212.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP67
TBI100-212.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP67
TBI100-212.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP67
TBI100-214.164.20T 100 mm 0 ... 120 °C 160 mm Stainless steel IP67
TBI100-214.164.22T 100 mm 0 ... 200 °C 160 mm Stainless steel IP67
TBI100-214.164.25T 100 mm 0 ... 500 °C 160 mm Stainless steel IP67
TBI100-214.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP67
TBI100-214.167.16T 100 mm 0 ... 600 °C 400 mm Stainless steel IP67
TBI100-214.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP67
TBI100-212.164.53T 100 mm -10 ... 30 °C 160 mm Stainless steel IP67
TBI100-212.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP67
TBI100-212.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP67
TBI100-212.167.55T 100 mm -30 ... 170 °C 400 mm Stainless steel IP67
TBI100-214.164.27T 100 mm 0 ... 80 °C 160 mm Stainless steel IP67
TBI100-214.164.51T 100 mm -30 ... 70 °C 160 mm Stainless steel IP67
TBI100-214.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP67
TBI100-214.167.25T 100 mm 0 ... 500 °C 400 mm Stainless steel IP67
TBI100-214.164.52T 100 mm -20 ... 40 °C 160 mm Stainless steel IP67
TBI100-214.167.27T 100 mm 0 ... 80 °C 400 mm Stainless steel IP67
TBI100-212.167.68T 100 mm -70 ... 50 °C 400 mm Stainless steel IP67
TBI100-212.164.55T 100 mm -30 ... 170 °C 160 mm Stainless steel IP67
TBI100-212.167.84T 100 mm -20 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.164.54T 100 mm -20 ... 60 °C 160 mm Stainless steel IP67
TBI100-214.167.51T 100 mm -30 ... 70 °C 400 mm Stainless steel IP67
TBI100-212.164.68T 100 mm -70 ... 50 °C 160 mm Stainless steel IP67
TBI100-214.162.11T 100 mm 0 ... 60 °C 100 mm Stainless steel IP67
TBI100-214.164.55T 100 mm -30 ... 170 °C 160 mm Stainless steel IP67
TBI100-214.167.52T 100 mm -20 ... 40 °C 400 mm Stainless steel IP67
TBI100-212.164.84T 100 mm -20 ... 100 °C 160 mm Stainless steel IP67
TBI100-214.167.54T 100 mm -20 ... 60 °C 400 mm Stainless steel IP67
TBI100-214.162.12T 100 mm 0 ... 100 °C 100 mm Stainless steel IP67
TBI100-214.164.68T 100 mm -70 ... 50 °C 160 mm Stainless steel IP67
TBI100-212.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP67
TBI100-214.167.55T 100 mm -30 ... 170 °C 400 mm Stainless steel IP67
TBI100-214.162.13T 100 mm 0 ... 160 °C 100 mm Stainless steel IP67
TBI100-214.164.84T 100 mm -20 ... 100 °C 160 mm Stainless steel IP67
TBI100-212.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP67
TBI100-214.167.68T 100 mm -70 ... 50 °C 400 mm Stainless steel IP67
TBI100-214.162.14T 100 mm 0 ... 250 °C 100 mm Stainless steel IP67
TBI100-214.166.11T 100 mm 0 ... 60 °C 250 mm Stainless steel IP67
TBI100-212.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP67
TBI100-214.167.84T 100 mm -20 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.162.15T 100 mm 0 ... 400 °C 100 mm Stainless steel IP67
TBI100-214.166.12T 100 mm 0 ... 100 °C 250 mm Stainless steel IP67
TBI100-212.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP67
TBI100-214.162.16T 100 mm 0 ... 600 °C 100 mm Stainless steel IP67
TBI100-214.166.13T 100 mm 0 ... 160 °C 250 mm Stainless steel IP67
TBI100-212.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP67
TBHA080-212.164.27T 80 mm 0 ... 80 °C 115 mm Stainless steel IP50
TBI100-214.162.20T 100 mm 0 ... 120 °C 100 mm Stainless steel IP67
TBI100-214.166.14T 100 mm 0 ... 250 °C 250 mm Stainless steel IP67
TBHA100-212.161.52T 100 mm -20 ... 40 °C 55 mm Stainless steel IP50
TBI100-212.166.16T 100 mm 0 ... 600 °C 250 mm Stainless steel IP67
TBHA100-212.161.13T 100 mm 0 ... 160 °C 55 mm Stainless steel IP50
TBI100-214.162.22T 100 mm 0 ... 200 °C 100 mm Stainless steel IP67
TBI100-214.166.15T 100 mm 0 ... 400 °C 250 mm Stainless steel IP67
TBI100-212.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP67
TBI100-214.166.16T 100 mm 0 ... 600 °C 250 mm Stainless steel IP67
TBI100-214.162.25T 100 mm 0 ... 500 °C 100 mm Stainless steel IP67
TBI100-212.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP67
TBHA100-212.162.52T 100 mm -20 ... 40 °C 75 mm Stainless steel IP50
TBI100-214.166.20T 100 mm 0 ... 120 °C 250 mm Stainless steel IP67
TBHA100-212.162.13T 100 mm 0 ... 160 °C 75 mm Stainless steel IP50
TBI100-214.162.27T 100 mm 0 ... 80 °C 100 mm Stainless steel IP67
TBI100-212.166.25T 100 mm 0 ... 500 °C 250 mm Stainless steel IP67
TBI100-214.166.22T 100 mm 0 ... 200 °C 250 mm Stainless steel IP67
TBHA100-212.163.52T 100 mm -20 ... 40 °C 95 mm Stainless steel IP50
TBI100-214.162.51T 100 mm -30 ... 70 °C 100 mm Stainless steel IP67
TBI100-212.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP67
TBHA100-212.163.13T 100 mm 0 ... 160 °C 95 mm Stainless steel IP50
TBI100-214.166.25T 100 mm 0 ... 500 °C 250 mm Stainless steel IP67
TBI100-214.162.52T 100 mm -20 ... 40 °C 100 mm Stainless steel IP67
TBI100-212.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP67
TBI100-214.166.27T 100 mm 0 ... 80 °C 250 mm Stainless steel IP67
TBHA100-212.164.52T 100 mm -20 ... 40 °C 115 mm Stainless steel IP50
TBI100-214.162.54T 100 mm -20 ... 60 °C 100 mm Stainless steel IP67
TBHA100-212.164.13T 100 mm 0 ... 160 °C 115 mm Stainless steel IP50
TBI100-212.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP67
TBI100-214.166.51T 100 mm -30 ... 70 °C 250 mm Stainless steel IP67
TBI100-214.162.55T 100 mm -30 ... 170 °C 100 mm Stainless steel IP67
TBHA100-212.164.27T 100 mm 0 ... 80 °C 115 mm Stainless steel IP50
TBI100-212.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP67
TBI100-214.166.52T 100 mm -20 ... 40 °C 250 mm Stainless steel IP67
TBI100-214.162.68T 100 mm -70 ... 50 °C 100 mm Stainless steel IP67
TBI100-214.166.54T 100 mm -20 ... 60 °C 250 mm Stainless steel IP67
TBI100-212.166.55T 100 mm -30 ... 170 °C 250 mm Stainless steel IP67
TBI100-214.162.84T 100 mm -20 ... 100 °C 100 mm Stainless steel IP67
TBI100-214.166.55T 100 mm -30 ... 170 °C 250 mm Stainless steel IP67
TBI100-212.166.68T 100 mm -70 ... 50 °C 250 mm Stainless steel IP67
TBI100-214.164.11T 100 mm 0 ... 60 °C 160 mm Stainless steel IP67
TBI100-214.166.68T 100 mm -70 ... 50 °C 250 mm Stainless steel IP67
TBI100-214.164.12T 100 mm 0 ... 100 °C 160 mm Stainless steel IP67
TBI100-212.166.84T 100 mm -20 ... 100 °C 250 mm Stainless steel IP67
TBI100-214.166.84T 100 mm -20 ... 100 °C 250 mm Stainless steel IP67
TBI100-214.164.13T 100 mm 0 ... 160 °C 160 mm Stainless steel IP67
TBI100-212.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP67
TBI100-214.167.11T 100 mm 0 ... 60 °C 400 mm Stainless steel IP67
TBI100-214.164.14T 100 mm 0 ... 250 °C 160 mm Stainless steel IP67
TBI100-212.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.167.12T 100 mm 0 ... 100 °C 400 mm Stainless steel IP67
TBI100-214.164.15T 100 mm 0 ... 400 °C 160 mm Stainless steel IP67
TBI100-212.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP67
TBI100-214.167.13T 100 mm 0 ... 160 °C 400 mm Stainless steel IP67
TBI100-214.164.16T 100 mm 0 ... 600 °C 160 mm Stainless steel IP67
TBI100-212.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP67
TBI100-214.167.14T 100 mm 0 ... 250 °C 400 mm Stainless steel IP67
TBI100-212.167.15T 100 mm 0 ... 400 °C 400 mm Stainless steel IP67
TBI100-212.167.16T 100 mm 0 ... 600 °C 400 mm Stainless steel IP67
TBI100-212.167.20T 100 mm 0 ... 120 °C 400 mm Stainless steel IP67
TBI100-212.167.22T 100 mm 0 ... 200 °C 400 mm Stainless steel IP67
Looking for the price? [x]
Copy & paste part number:
