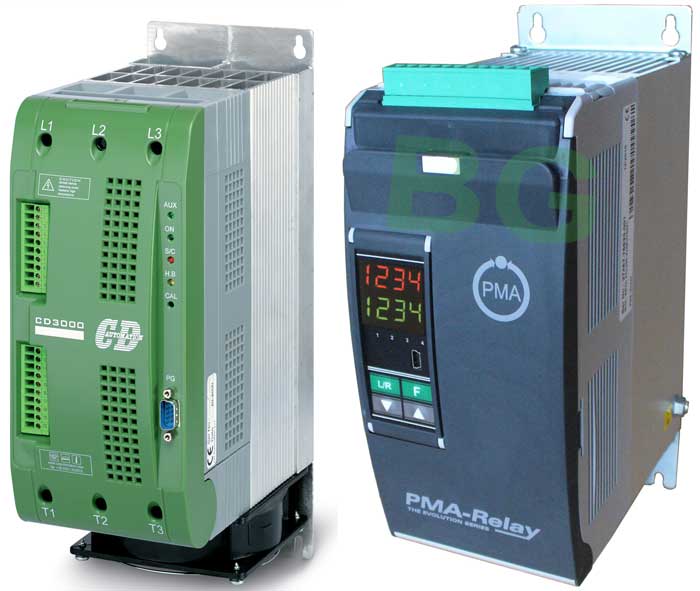

REVO S-1РHCD3000S-1PHRelay S-1PH

REVO S-1РH
CD3000S-1PH
Relay S-1PH

Request quote
Made in Germany   Made in Italy

Example of Full Part Number:
CD3000S-1PH/300A/480V/480V/12:24V/SSR/ZC/NF/HB
REVO RS1120-45APWY0021

Ideal for:

  • Normal Resistance
  • Medium and Long Wave IR load types

Benefits and Features:

  • These simple units can be connected with Relay PC to manage multizone system
  • Integrated fuse + fuse holder
  • power control zone including current transformer and optional circuit board
  • Flat Cable Wiring System (option)
  • Input signal: SSR, Analog as an option
  • Electronic fully isolated from power with constant current drain on input
  • Heater Break alarm option to diagnose partial or total load failure and Thyristor Short circuit
  • Fuse and Fuse holder available as an option
  • Current transformer integrated (with Heather Break option)
  • Special design for Heat sink with very high dissipation value
  • Comply with EMC, cUL (pending)
  • DIN RAIL side by side mounting
  • IP20 Protection

Specification:

  • Up to 700A
  • Single Phase
  • 24Vac to 600Vac Supply
  • DC Logic input
  • 4-20mA or 0-10V DC linear inputs
  • Zero Cross or Burst Firing (4, 8 or 16 cycles @50% power demand).
