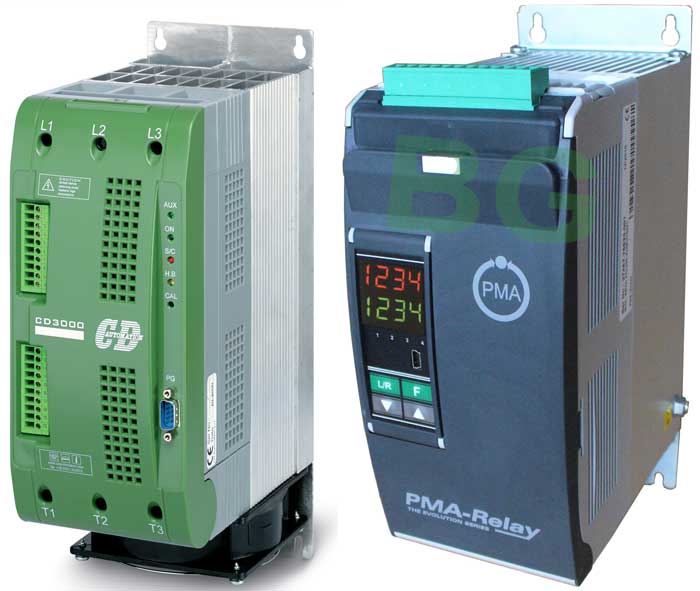

REVO S-2РHCD3000S-2PHRelay S-2PH

REVO S-2РH
CD3000S-2PH
Relay S-2PH

Request quote
Made in Germany Made in Italy

Example of Full Part Number:
CD3000S-2PH/150A/480V/480V/12:24V/SSR/ZC/NF/HB
REVO RS2400-42APWY2021

Ideal for:

  • Normal Resistance
  • Medium and Long Wave IR load types

Benefits and Features:

  • Integrated fuse + fuse holder is necessary to have a complete
  • power control zone including current transformer and optional circuit board
  • Flat Cable Wiring System (option) to connect in plug in mode many Revo S
  • when HB alarm or analog input are used
  • Input signal: SSR, Analog as an option
  • Zero Crossing, Burst Firing available at 4, 8 or 16 Cycles at 50%
  • of Power demand
  • Electronic fully isolated from power with constant current drain on input.
  • Heater Break alarm option to diagnose partial or total load failure
  • and Thyristor Short circuit
  • Fuse and Fuse holder available as an option
  • Current transformer integrated (with Heather Break option)
  • Special design for Heat sink with very high dissipation value
  • Comply with EMC, cUL (pending)
  • DIN RAIL side by side mounting
  • IP20 Protection

Specification:

  • Up to 700A
  • 3 wire
  • 24Vac to 600Vac Supply
  • DC Logic input
  • 4-20mA or 0-10V DC linear inputs
  • Zero Cross or Burst Firing (4, 8 or 16 cycles @50% power demand)
