Power Supply Redundant Module


RED00202ARED00202BRED00202CRedundant O-Ring Modul 1000W Continuous Load

RED00202A
RED00202B
RED00202C
Redundant O-Ring Modul 1000W Continuous Load

Made in Germany

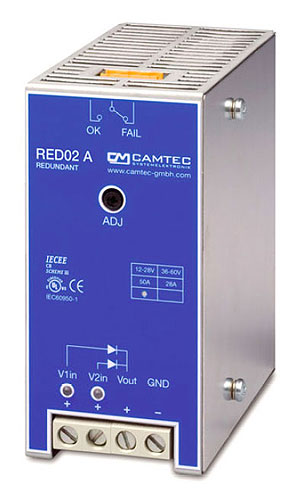

The redundant module RED00202 is designed for applications from 0Vdc to 125Vdc. DC-outputs from N+1 power supply units will be decoupled (equal power supplies and output voltages are recommended). If a breakdown occurs to one of the connected power supply modules, the other one will take over with no voltage drop to the system. While normal operation the load will be partitioned equal to each of the connected power supplies. The RED00202 power good relay features continuous control over the conditions of the connected power supplies. If one power supply fails the relay indicates that the remaining power supply takes over. The drop out voltage Vu can be adjusted via the control potentiometer. The DC-Input of the RED00202 corresponds to the output voltage of the power supplies installed. The GND-Input of the RED00202 is evident for the own supply only. The voltage drop between DC-input and DC-output is 500mV.

Model RED00202A RED00202B RED00202C
Channel Inputs V1in / V2in V1in / V2in V1in / V2in
DC-Input Voltage (0)12V...28Vdc 36V...60Vdc 90V...125Vdc
DC-Input Upper Margin Vo fix +36V ± 5% fix +75V ± 5% fix +140V ± 5%
Hysteresis Vo ~1.5V ~1.5V ~1.5V
Drop-Out Voltage Set Range +8Vdc...+28Vdc +24V...+60Vdc +60V ...+135Vdc
Low Rate Hysteresis Vu ~1.5V ~1.5V ~1.5V
Maximum Input Current 2x 50A 2x 28A 2x 9,1A
Maximum Output Current 1x 50A (1000W) 1x 28A 1x 9,1A
Voltage Drop, Input to Output 500mV typical 600mV typical 700mV typical

HSE01201CC Battery Charging Rectifier and Constant Current DC-Source

HSE01201CC
Battery Charging Rectifier and Constant Current DC-Source

Made in Germany

The HSE01201CC series is a constant current mode 120W power supply. It is designed to be used as a battery charger or a LED driver. As a standard the power good relay allows to control the power supply is ok. When the output voltage breaks down the contact opens. Metal housing, free air convection, galvanic insulated, continuous short circuit protected, overload and low voltage protected, soft start and auto-recovery, safe against idling, high reliability, shock and vibration resistant.

HSE01201CC036 3A 36Vdc HSE01201CC042 2.8A 42Vdc
HSE01201CC060 2A 57,4Vdc HSE01201CC060 2A 57,4Vdc

CPS-EC480480W Battery Charging Rectifier and Precision Industrial Power Supply, DC-DC Converter

CPS-EC480
480W Battery Charging Rectifier and Precision Industrial Power Supply, DC-DC Converter

Made in Germany

The CPS-EC480 series is a constant current mode 480W power supply. It is designed to be used as a battery charger or a LED driver. As a standard the power good relay allows to control the power supply is ok. When the output voltage breaks down the contact opens. Metal housing, free air convection, galvanic insulated, continuous short circuit protected, overload and low voltage protected, soft start and auto-recovery, safe against idling, high reliability, shock and vibration resistant.

Type CPS-EC480.024 CPS-EC480.036 CPS-EC480.048
Output Voltage 24V 36V 48V
Output Current 20A 13,3A 10A
DC Voltage Setting 24-30V 36-45V 48-58V
DC Current Setting 10-21A 6,6-14A 5-10,5A
Ripple and Noise mVpp 40mV 40mV 100mV
Type CPS-EC480.060 CPS-EC480.072 CPS-EC480.110
Output Voltage 60V 72V 110V
Output Current 8A 6,7A 4,4A
DC Voltage Setting 60-75V 72-90V 110-137,5V
DC Current Setting 4-8,4A 3,4-7A 2,2-4,6A
Ripple and Noise mVpp 150mV 200mV 300mV
Type CPS-EC480.150 CPS-EC480.220 CPS-EC480.300
Output Voltage 150V 220V 300V
Output Current 3,2A 2,2A 1,6A
DC Voltage Setting 132-180V 220-264V 264-360V
DC Current Setting 1,6-3,3A 1,1-2,3A 0,8-1,7A
Ripple and Noise mVpp 400mV 400mV 400mV

CPS-EC10001000W Battery Charging Rectifier and Precision Industrial Power Supply, DC-DC Converter

CPS-EC1000
1000W Battery Charging Rectifier and Precision Industrial Power Supply, DC-DC Converter

Made in Germany

The CPS-EC1000 series is a constant current mode 1000W power supply. It is designed to be used as a battery charger or a LED driver. As a standard the power good relay allows to control the power supply is ok. When the output voltage breaks down the contact opens. Metal housing, free air convection, galvanic insulated, continuous short circuit protected, overload and low voltage protected, soft start and auto-recovery, safe against idling, high reliability, shock and vibration resistant.

Type CPS-EC1000.024 CPS-EC1000.036 CPS-EC1000.048
Output Voltage 24V 36V 48V
Output Current 42A 28A 21A
DC Voltage Setting 24-30V 36-45V 48-58V
DC Current Setting 21-44,1A 14-29,4A 10,5-22A
Ripple and Noise mVpp 40mV 40mV 100mV
Type CPS-EC1000.060 CPS-EC1000.072 CPS-EC1000.110
Output Voltage 60V 72V 110V
Output Current 16,7A 13,9A 9,1A
DC Voltage Setting 60-75V 72-90V 110-137,5V
DC Current Setting 8-17,6A 7-14,6A 4,6-9,6A
Ripple and Noise mVpp 150mV 200mV 300mV
Type CPS-EC1000.150 CPS-EC1000.220 CPS-EC1000.300
Output Voltage 150V 220V 300V
Output Current 6,7A 4,55A 3,33A
DC Voltage Setting 132-180V 220-264V 264-360V
DC Current Setting 3,4-7A 3,3-4,8A 1,7-3,5A
Ripple and Noise mVpp 400mV 400mV 400mV

CPS-EC15001500W Battery Charging Rectifier and Precision Industrial Power Supply, DC-DC Converter

CPS-EC1500
1500W Battery Charging Rectifier and Precision Industrial Power Supply, DC-DC Converter

Made in Germany

The CPS-EC1500 series is a constant current mode 1500W power supply. It is designed to be used as a battery charger or a LED driver. As a standard the power good relay allows to control the power supply is ok. When the output voltage breaks down the contact opens. Metal housing, free air convection, galvanic insulated, continuous short circuit protected, overload and low voltage protected, soft start and auto-recovery, safe against idling, high reliability, shock and vibration resistant.

Type CPS-EC1500.024 CPS-EC1500.036 CPS-EC1500.048
Output Voltage 24V 36V 48V
Output Current 62,5A 41,7A 31,2A
DC Voltage Setting 24-30V 36-45V 48-58V
DC Current Setting 31,3-62,5A 20,9-41,7 15,6-31,2A
Ripple and Noise mVpp 40mV 40mV 120mV
Type CPS-EC1500.060 CPS-EC1500.072 CPS-EC1500.110
Output Voltage 60V 72V 110V
Output Current 25A 20,8A 13,6A
DC Voltage Setting 60-75V 72-90V 110-137,5V
DC Current Setting 12,5-25,0A 10,4-20,8A 6,8-13,6A
Ripple and Noise mVpp 150mV 200mV 300mV
Type CPS-EC1500.150 CPS-EC1500.220 CPS-EC1500.400
Output Voltage 150V 220V 400V
Output Current 10A 6,8A 4,6A
DC Voltage Setting 132-180V 220-264V 330-400V
DC Current Setting 5-10A 3,4-6,8A 2,3-4,6A
Ripple and Noise mVpp 400mV 400mV 400mA

UMS00025UMS00050UMS00100Power Switch Relay, MOSFET Relay

UMS00025
UMS00050
UMS00100
Power Switch Relay,
MOSFET Relay

Made in Germany

Electronic DC Power Switch Relay 30 – 120Vdc, 10A – 320A, DC-MOSFET Relay 600 - 2400W. Up to 2400W power switching capacity. Parallel operation N+1 power increase. Switching current up to 320A. Switching voltage up to 120Vdc. Control In-/outputs galvanic isolated. Intelligent Power Switch for Automation and Drives – replaces excessive conventional relay solutions. Applications: DC Motor drives, breaks, valves, slide feeds, magnet coils, battery bank switching.

Model UMS00025.10 UMS00025.15 UMS00025.20 -
Power 600W 600W 600W -
DC voltage switching 0... 60Vdc 0... 40Vdc 0... 30Vdc -
Current switching 10A 15A 20A -
Model UMS00050.20 UMS00050.30 UMS00050.40 -
Power 1200W 1200W 1200W -
DC voltage switching 0... 60Vdc 0... 40Vdc 0... 30Vdc -
Current switching 20A 30A 40A -
Model UMS00100.20 UMS00100.40 UMS00100.60 UMS00100.80
Power 2400W 2400W 2400W 2400W
DC voltage switching 0... 120Vdc 0... 60Vdc 0... 40Vdc 0... 30Vdc
Current switching 20A 40A 60A 80A

GL1800 / RM1800Battery Charging Rectifier and Constant Current DC-Source

GL1800 / RM1800
Battery Charging Rectifier and Constant Current DC-Source

Made in Germany

The Camtec GL1800/RM1800 is a high precision and extremely robust charging rectifier for an upscale demand. By using the slide switch, it is possible to select the output voltage of the device between 12/24/36/48/60Vdc. The design meets challenging applications like railway, complex drives, battery charging for DC-UPS, test-stands, machine-building and professional LED lighting. The power supply provides a low ripple-noise, a precise load-regulation and high efficiency of typical 90%. High-end long-life capacitors guarantee an extended hold-up-time of 40ms and an extraordinary lifetime of the power supply. The CCL1800 current limiter is optionally available.
