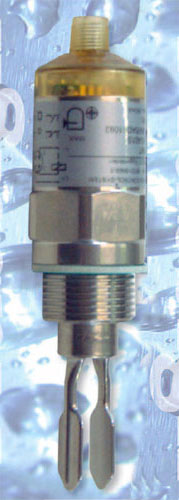

Vibration level limit switch Vibrocont SCM-300

Vibration level limit switch
Vibrocont SCM-300

Made in Germany

Description

Vibrocont SCM-300 is a point level switch for liquids. Point level switch in compact design with stainless steel housing. The Vibrocont SCM-300 is designed for industrial applications in all industries, mainly the machinery industry. The Vibrocont SCM-300 is used for overfill prevention or pump dry-run protection in cleaning and filter systems as well as in cooling and lubrication vessels.

Process connections: Threads
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40 bar (-14.5 to 580 psi)
Surface roughness: 3.2 µm

Supply voltage 10 V … 30 V DC, 3-wire
Switching capacity 200 mA
Power consumption ≤ 15 mA
Plug Plug M12, Valve connector
Supply voltage 20 V … 253 V AC/DC, 2-wire
Switching capacity 250 mA
Power consumption ≤ 3,8mA (at the moment of switch-off < 1mA for 100ms)
Plug Valve connector
Switching time approx. 0.5 s when covering, approx. 1s when becoming free
Hysteresis max. 3 mm
Process connections thread ISO 228 G½, thread ISO 228 G¾, thread ISO 228 G1
Mounting position Any
Switching point 13 mm with vertical installation, 10,5 mm with horizontal installation
Pipe extension 103 mm
Surface roughness Ra ≤ 3,2 µm
Ambient temperature -40°C … +70°C
Medium temperature -40°C … +150°C
Operating pressure -1 bar … +40 bar
Storage temperature -40°C … +85°C
Climate class DIN EN 60068-2-38/IEC 68-2-38, exam Z/AD
Medium density 0,5 g/cm³ ... 0,7 g/cm³
Medium viscosity 1 mPas … 10000 mPas, Dynamic viscosity
Protection class IP65/67 (with plug variant M12), IP65 (with valve plug variant)
WHG Z-65.11-531
Leak detection system Z-65.40-532

Examples of supplied versions: expand / close

Vibrocont SCM 300K1WA02S Vibrocont SCM 302K1WA02S
Vibrocont SCM 350K1WA02S Vibrocont SCM 352K1WA02S
Vibrocont SCM 300R1WA02S Vibrocont SCM 302R1WA02S
Vibrocont SCM 350R1WA02S Vibrocont SCM 352R1WA02S
Vibrocont SCM 300K2WA02S Vibrocont SCM 302K2WA02S
Vibrocont SCM 350K2WA02S Vibrocont SCM 352K2WA02S
Vibrocont SCM 300R2WA02S Vibrocont SCM 302R2WA02S
Vibrocont SCM 350R2WA02S Vibrocont SCM 352R2WA02S
Vibrocont SCM 300K6WA02S Vibrocont SCM 302K6WA02S
Vibrocont SCM 350K6WA02S Vibrocont SCM 352K6WA02S
Vibrocont SCM 300R6WA02S Vibrocont SCM 302R6WA02S
Vibrocont SCM 350R6WA02S Vibrocont SCM 352R6WA02S
Vibrocont SCM 300K7WA02S Vibrocont SCM 302K7WA02S
Vibrocont SCM 350K7WA02S Vibrocont SCM 352K7WA02S
Vibrocont SCM 300R7WA02S Vibrocont SCM 302R7WA02S
Vibrocont SCM 350R7WA02S Vibrocont SCM 352R7WA02S
Vibrocont SCM 300K1GA02S Vibrocont SCM 302K1GA02S
Vibrocont SCM 350K1GA02S Vibrocont SCM 352K1GA02S
Vibrocont SCM 300R1GA02S Vibrocont SCM 302R1GA02S
Vibrocont SCM 350R1GA02S Vibrocont SCM 352R1GA02S
Vibrocont SCM 300K2GA02S Vibrocont SCM 302K2GA02S
Vibrocont SCM 350K2GA02S Vibrocont SCM 352K2GA02S
Vibrocont SCM 300R2GA02S Vibrocont SCM 302R2GA02S
Vibrocont SCM 350R2GA02S Vibrocont SCM 352R2GA02S
Vibrocont SCM 300K6GA02S Vibrocont SCM 302K6GA02S
Vibrocont SCM 350K6GA02S Vibrocont SCM 352K6GA02S
Vibrocont SCM 300R6GA02S Vibrocont SCM 302R6GA02S
Vibrocont SCM 350R6GA02S Vibrocont SCM 352R6GA02S
Vibrocont SCM 300K7GA02S Vibrocont SCM 302K7GA02S
Vibrocont SCM 350K7GA02S Vibrocont SCM 352K7GA02S
Vibrocont SCM 300R7GA02S Vibrocont SCM 302R7GA02S
Vibrocont SCM 350R7GA02S Vibrocont SCM 352R7GA02S

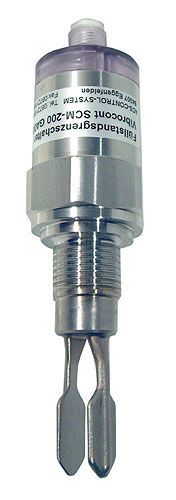

Vibration level limit switch Vibrocont SHM

Vibration level limit switch
Vibrocont SHM

Made in Germany

Description

Vibrocont SHM-300 is a point level switch for liquids. The Vibrocont SHM-300 is especially designed for food and beverage applications where hygienic requirements are requested. The Vibrocont SHM-300 is used for overfill prevention or pump dry-run protection preferably in storage tanks, mixing vessels and pipes.

Process connections: Threads, M24 process adapter, DIN11851, Tri-clamp, flush mount
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40 bar (-14.5 to 580 psi)
Surface roughness: 0.76µm or 1.5 µm
Approvals: WHG overfill prevention and leakage detection, EHEDG, 3-A, FDA, CSA C/US, 3.1 material certificate, final inspection report

Supply voltage 10 V … 30 V DC, 3-wire
Switching capacity 200 mA
Power consumption ≤ 15 mA
Plug Plug M12, Valve connector
Supply voltage 20 V … 253 V AC/DC, 2-wire
Switching capacity 250 mA
Power consumption ≤ 3,8 mA (at the moment of switch-off < 1mA for 100ms)
Plug Valve connector
Switching time approx. 0.5 s when covering, approx. 1s when becoming free
Hysteresis max. 3 mm
Process connections thread ISO 228 G½”
thread ISO 228 G¾” for flush installation in weld-in adapter
thread ISO 228 G1″ for flush installation in weld-in adapter
thread ASME MNPT ½”
thread ASME MNPT ¾”
thread ASME MNPT 1″
thread M24x1,5 for flush installation in weld-in adapter or process adapter
DIN11851 DN25 PN40 (Milk pipe)
DIN11851 DN32 PN40 (Milk pipe)
DIN11851 DN40 PN40 (Milk pipe)
Tri-Clamp ISO2852 DN25-38 (1″…1½”)
Tri-Clamp ISO2852 DN40-51 (2″)
RD52, Tuning fork can be aligned
Mounting position Any
Switching point 13mm with vertical installation (Water +25°C / +1 bar)
10,5mm with horizontal installation (Water +25°C / +1 bar)
Pipe extension 103 mm
Surface roughness Ra ≤ 1,5 µm, EHEDG, Ra ≤ 0,76 µm, EHEDG, 3-A
Ambient temperature -40°C … +70°C
Medium temperature -40°C … +150°C
Operating pressure -1 bar … +40 bar
Storage temperature -40°C … +85°C
Climate class DIN EN 60068-2-38/IEC 68-2-38, exam Z/AD
Medium density > 0,7 g/cm³
Medium viscosity 1mPas … 10000 mPas, Dynamic viscosity
Protection class IP65/67 (with plug M12), IP65 (with valve plug)
WHG Z-65.11-531
Leak detection system Z-65.40-532, 3-A, EHEDG depending on the configuration
