The presented photo gallery contains photos of thyristor power regulators REVO, Relay and CD3000. The experience of using regulators in various industries at various facilities has been collected and systematized.

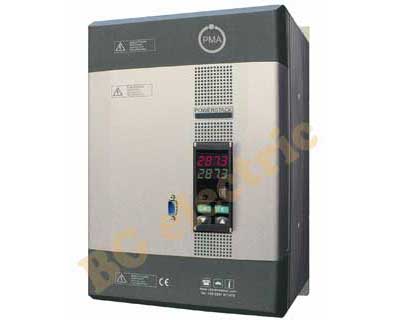

Three-phase power controller POWERSTACK 1100А 1. Three-phase power controller POWERSTACK with maximum phase current 1100A.
Three-phase power controller Relay M 210А 2. Three-phase power controller Relay M with maximum phase current 210A.

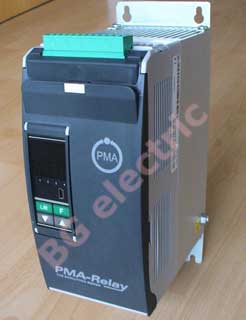

Single-phase power controller Relay M 30А 3. Single-phase power controller Relay M with maximum phase current 30A.

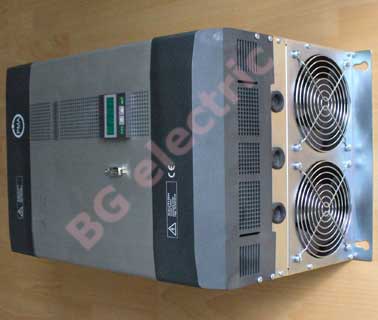

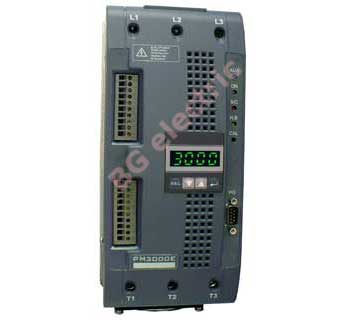

Three-phase power controller PM3000E 700А 4. Three-phase power controller PM3000E with maximum phase current 700A.
Single-phase power controller Relay M 150А 5. Single-phase power controller Relay M with maximum phase current 150A.

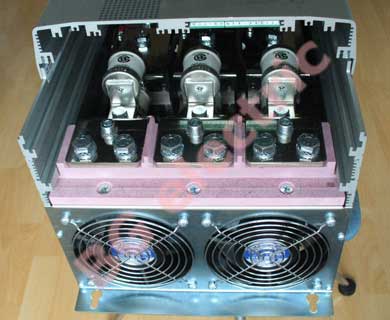

Three-phase power controller PM3000E 500А 6. Three-phase power controller PM3000E with maximum phase current 500A.
Single-phase power controller Relay M 150А 7. Single-phase power controller Relay M with maximum phase current 150A.
Three-phase power controller PM3000E 700А 8. Three-phase power controller PM3000E with maximum phase current 700A.
Single-phase power controller Relay CL 700А 9. Single-phase power controller Relay CL with maximum phase current 700A.
Three-phase power controller PM3000E 700А 10. Three-phase power controller PM3000E with maximum phase current 700A.
Three-phase power controller PM3000E 180А 11. Three-phase power controller PM3000E with maximum phase current 180A.
Single-phase power controller Relay S 25А 12. Single-phase power controller Relay S with maximum phase current 25A.
Three-phase power controller PM3000E 700А 13. Three-phase power controller PM3000E with maximum phase current 700A.
Single-phase power controller Relay CL 700А 14. Single-phase power controller Relay CL with maximum phase current 700A.
Three-phase power controller PM3000E 500А 15. Three-phase power controller PM3000E with maximum phase current 500A.
Three-phase power controller PM3000E 500А 16. Three-phase power controller PM3000E with maximum phase current 500A.
Single-phase power controller Relay CL 280А 17. Single-phase power controller Relay CL with maximum phase current 280A.
Single-phase power controller Relay CL 280А 18. Single-phase power controller Relay CL with maximum phase current 280A.
Three-phase power controller PM3000E 50А 19. Three-phase power controller PM3000E with maximum phase current 500A.

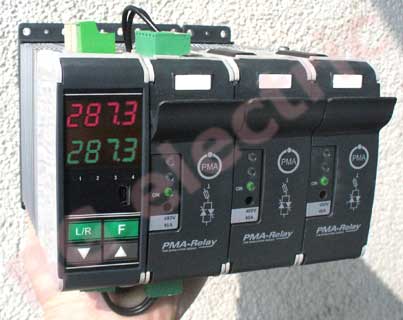

Three-phase power controller Relay TC 40А со встроенным PID-регулятором. 20. Three-phase power controller Relay TC with maximum phase current 40A with integrated PID controller.
Three-phase power controller PM3000E 700А 21. Three-phase power controller PM3000E with maximum phase current 700A.

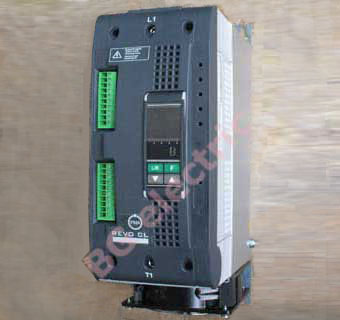

Single-phase power controller Relay CL 500А 22. Single-phase power controller Relay CL with maximum phase current 500A.
Single-phase power controller Relay CL 180А 23. Single-phase power controller Relay CL with maximum phase current 180A.
Three-phase power controller POWERSTACK 1100А 24. Three-phase power controller Relay M-2PH with maximum phase current 90A and with resistive load regulation on two phases. In the photo the front panels are open.
Three-phase power controller POWERSTACK 1100А 25. Three-phase power controller Relay M-2PH with maximum phase current 90A and with resistive load control on two phases.
Three-phase power controller POWERSTACK 1100А 26. Three-phase power controller Relay M-2PH with maximum phase current 90A and with resistive load control on two phases.

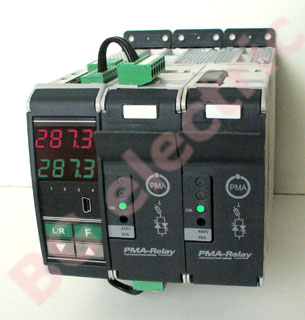

Three-phase power controller POWERSTACK 1100А 27. Three-phase power controller Relay M-2PH with maximum phase current 40A and with resistive load control on two phases.

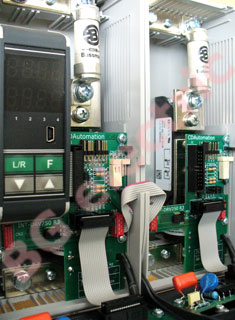

Three-phase power controller POWERSTACK 1100А 28. Three-phase power controller Relay M-2PH with maximum phase current 40A and with resistive load regulation on two phases. In the photo the fuse panels are open, the regulator is energized with 220 V.
