AC/DC DIN-Rail Power Supply 1 phase

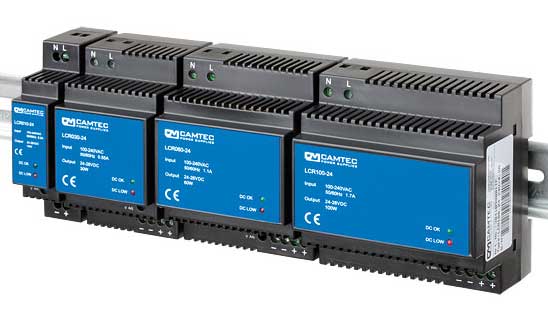

Low Cost Industrial Class Switch Mode Power Supply. From 10 to 100 Watt Power Supply 24V. Housing for circuit breaker boxes with natural cooling. Galvanic insolated, Shortcircuit protected, Low- and over-voltage protection, Over temperature protection, Softstart, Auto-recovery after faulty operation.

Model	LCR010.24	LCR030.24	LCR060.24	LCR100.24
Nominal Power	10W	30W	60W	100W
AC Nominal Input	100... 240Vac
AC Input Voltage	90... 264Vac
DC Input Voltage	140... 340Vdc
AC Frequency	47... 63Hz
Hold-Up Time	90ms	160ms	80ms	80ms
Inrush Current	41A	41A	81A	52A
Start	softstart
Output Voltage	24V	24V	24V	24V
Adjust Range	24 ... 28V	24 ... 28V	24 ... 28V	24 ... 28V
Ripple P-P	7mV	7mV	7mV	8mV
DC Nominal Current	420mA	1,25A	2,5A	4,2A
Load Regulation dyn.	±0,02%
Load Regulation Time	4,4ms	5,8ms	4,2ms	4,5ms
Efficiency 230Vac typ.	82%	85%	85%	86%
Base Load	none required
Short Circuit	continous protected
Ambient Operation	-10 bis +60°C
Cooling	natural
Temperature Control	yes, Hiccup, auto-recovery
Housing	VDE0603 for CB boxes
Type Class	IP20
Burn Proof Class	UL94V-0
Safety Norms	IEC60950-1/UL60950-1, EN60204
Safety IEC	EN60950-1 EN50178
Safety Class PELV	II A
Input- /Output Isolation	3000Vac
Humidity Operation	20 ... 90% non condensing
EMI	EN55022B EN61000-3-2A
EMS	EN61000-6-2,3
MTBF IEC61709 [h]	299T	287T	250T	248T

HSW00751

Request quote

Data sheet (En.)

75 Watts Power Supply in Metal housing. Free air convection, Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Soft start and auto-recovery, High reliability, shock and vibration resistant.

HSW00751.05T (5V / 7.5A)	HSW00751.09T (9V / 7.6A)
HSW00751.12T (12V / 6.0A)	HSW00751.15T (15V / 5.0A)
HSW00751.24T (24V / 3.2A)

Model	HSW00751
Power	75W
Nominal AC Input	100... 240Vac
Input Range AC	90... 265Vac
Input Range DC	110... 375Vdc
Input Frequency	47... 63Hz
Hold-Up Time	40ms
Inrush Current Protection	NTC <32A
Autostart	Soft start 50ms
Output Voltage	5V	9V	12V	15V	24V
Adjust Range Vout	4,9... 5,5V	8,6... 9,9V	11,4... 13,2V	14,3... 16,5V	22,5... 28,5V
Ripple & Noise mVpp	15mV	15mV	20mV	20mV	50mV
Nominal Output Current	7,5A	7,6A	6A	5A	3,2A
Power Boost <=60°C/60s	9A	9,1A	7,2A	6A	3,8A
Stability at Load Switch	±0,1%	±0,5%	±0,3%	±0,2%	±0,1%
Transient Time	< 1ms
Efficiency	90%
Basic load	Idling-proof
Short Circuit Protection	Continuous
Ambient Operation Temperature	-20°C... +70°C
Cooling	Natural convection
Temperature Monitoring	Upon request
Dimensions (WxHxD)	50x102x96mm
IP-Range	IP20
Safety Norms	CSA UL CE according to IEC60950-1
Safety IEC	EN60950-1 EN50178 EN60204-1
Safety Class 1(A)	VDE0100 VDE0805
Input to Output Isolation	3000Vac
Climatic Class, Humidity	3k3, 90% non condensing
EMI	EN55022B EN61000-3-2A
EMS	EN61000-6-2,3
MTBF IEC61709	500000h
Power Good Relay	Galvanic insulated 60Vdc
Sense operation	Yes 5V-model ±200mV
Remote Shutdown	No
Ordering options	Protective Coating
Options	see Datasheet

HSW00901

Request quote

Data sheet (En.)

90 Watts Power Supply in Metal housing. Free air convection, Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Soft start and auto-recovery, High reliability, shock and vibration resistant.

HSW00901.24T (24V / 3.8A)	HSW00901.36T (36V / 2.5A)
HSW00901.48T (48V / 1.9A)	HSW00901.60T (60V / 1.5A)
HSW00901.72T (72V / 1.3A)	HSW00901.140T (140V / 0.65A)

Model	HSW00901
Power	90W
Nominal AC Input	100... 240Vac
Input Range AC	90... 265Vac
Input Range DC	110... 375Vdc
Input Frequency	47... 63Hz
Hold-Up Time	40ms
Inrush Current Protection	NTC < 32A
Autostart	Soft start
Output Voltage	24V	36V	48V	60V	72V	140V
Adjust Range Vout	22,5... 28,5V	34,2... 39,6V	45,6... 52,8V	57... 66V	68... 68V	133... 155V
Ripple & Noise mVpp	50mV	50mV	60mV	100mV	120mV	120mV
Nominal Output Current	3,8A	2,5A	1,9A	1,5A	1,3A	640mA
Power Boost <=60°C/60s	4,6A	3,0A	2,7A	1,8A	1,6A	770mA
Stability at Load Switch	±0,1%	±0,1%	±0,1%	±0,1%	±0,3%	±0,5%
Transient Time	< 1ms
Efficiency	90%
Basic load	Idling-proof
Short Circuit Protection	Short circuit protected
Ambient Operation Temperature	-20°C... +70°C
Cooling	Natural Convection
Temperature Monitoring	Upon request
Dimensions (WxHxD)	50x102x96mm
IP-Range	IP20
Safety Norms	CSA UL CE according to IEC60950-1
Safety IEC	EN60950-1 EN50178 EN60204-1
Safety Class 1(A)	VDE0100 VDE0805
Input to Output Isolation	3000Vac
Climatic Class, Humidity	3k3, 90% non condensing
EMI	EN55022B EN61000-3-2A
EMS	EN61000-6-2,3
MTBF IEC61709	500000h
Power Good Relay	galvan. insulated 60Vdc
Ordering options	Protective Coating
Options	see Datasheet

HSE01201
HSE01201CC

Request quote

Data sheet (En.)

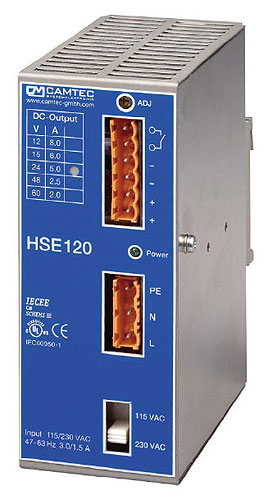

The HSE01201 is 120 Watts Power Supply in Metal housing with Free air convection and Galvanic insulated. The HSE01201CC series is a constant current mode power supply. It is designed to be used as a battery charger or a LED driver. Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, Soft start and auto-recovery, Hold up time 30ms, High reliability, shock and vibration resistant.

HSE01201.12T (12V / 8.0A)	HSE01201.24T (24V / 5.0A)
HSE01201.36T (36V / 3.3A)	HSE01201.48T (48V / 2.5A)
HSE01201.60T (60V / 2.0A)	HSE01201.72T (72V / 1,7A)
HSE01201.110T (110V / 1,1A)	HSE01201CC036 (3A / 36Vdc)
HSE01201CC042 (2.8A / 42Vdc)	HSE01201CC060 (2A / 57Vdc)

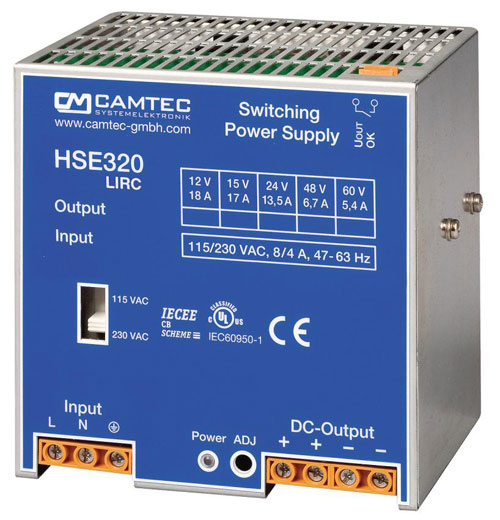

HSE03201LIRC

Request quote

Data sheet (En.)

The HSE03201LIRC is a 320 Watts Input Voltage low inrush Power Supply in Metal housing with Free air convection. Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, High reliability, shock and vibration resistant.

HSE03201.05TLIRC (5V / 18.0A)	HSE03201.12TLIRC (12V / 18.0A)
HSE03201.15TLIRC (15V / 17.0A)	HSE03201.24TLIRC (24V / 13.5A)
HSE03201.36TLIRC (36V / 8.9A)	HSE03201.48TLIRC (48V / 6,7A)
HSE03201.60TLIRC (60V / 5.4A)

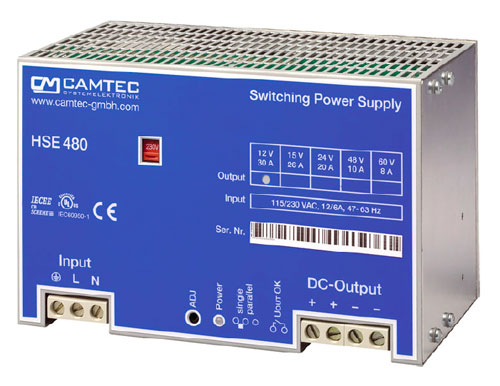

HSE04801

Request quote

Data sheet (En.)

The HSE04801 is a 480 Watts Input Voltage low inrush Power Supply in Metal housing with Free air convection. Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, High reliability, shock and vibration resistant.

HSE04801.12T (12V / 30.0A)	HSE04801.15T (15V / 26.0A)
HSE04801.24T (24V / 20.0A)	HSE04801.36T (36V / 13.3A)
HSE04801.48T 48V / 10.0A)

HSE07201

Request quote

Data sheet (En.)

The HSE07201 is a 720 Watts Input Voltage low inrush Power Supply in Metal housing with Free air convection. Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, High reliability, shock and vibration resistant.

HSE07201.12T (12V / 40.0A)	HSE07201.24T (24V / 30.0A)
HSE07201.36T (36V / 20.0A)	HSE07201.48TS01 (48V / 15.0A)
HSE07201.60T (60V / 12.0A)

HSE10001

Request quote

Data sheet (En.)

The HSE07201 is a 720 Watts Input Voltage low inrush Power Supply in Metal housing with Free air convection. Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, High reliability, shock and vibration resistant.

HSE10001.12T (12V / 50.0A)	HSE10001.15T (15V / 50.0A)
HSE10001.24T (24V / 42.0A)	HSE10001.36T (36V / 28.0A)
HSE10001.48T (48V / 21.0A)

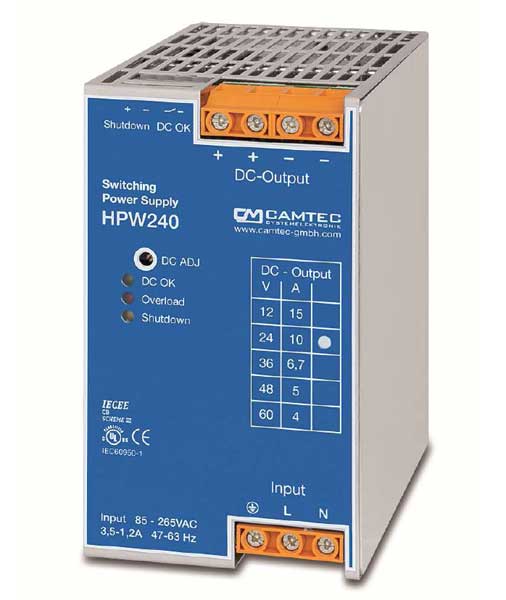

HPW02401
HPW00601

Request quote

Data sheet (En.)

The HPW02401 is a 60 or 240 Watts Input Voltage low inrush Power Supply in Metal housing with Free air convection. Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, High reliability, shock and vibration resistant. Active Inrush Current Protection and active PFC (Power Faktur Correktion).

HPW02401.12T (9-18V / 15,0...19,0A)	HPW02401.24T (18-30V / 10,0...13,0A)
HPW02401.36T (20-43V / 6,7...8,7A)	HPW02401.48T (43-53V / 5,0...6,8A)
HPW02401.60T (53-72V /4,0...5,2A)	HPW02401.72T (68-86V / 3,3...4,3A)
HPW00601.24T (24V / 2,5A)	HPW00601.48T (48V / 1,25A)

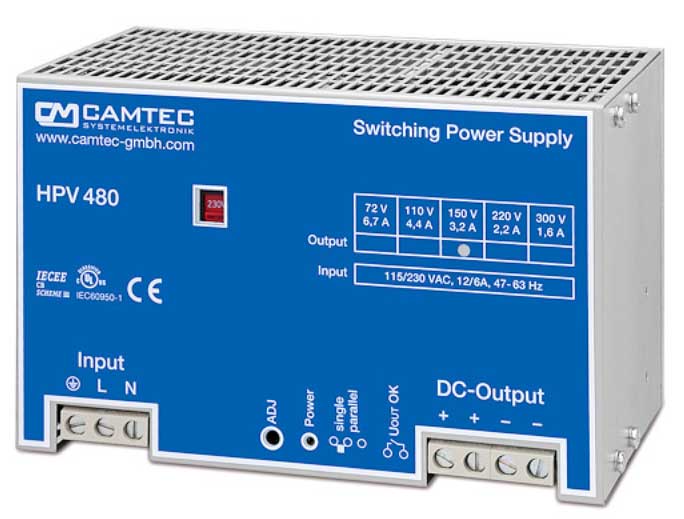

HPV04801

Request quote

Data sheet (En.)

The HPV04801 is a 480 Watts Input Voltage low inrush Power Supply in Metal housing with Free air convection. Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, High reliability, shock and vibration resistant. The Power Good Relay connection indicates over temperature, low DC-voltage at the output and low AC supply voltage at the input.

HPV04801.072T (72V / 6.7A)	HPV04801.072TPG (72V / 6.7A) Power Good Relay
HPV04801.110T (110V / 4.4A)	HPV04801.110TPG (110V / 4.4A) Power Good Relay
HPV04801.150T (150V / 3.2A)	HPV04801.150TPG (150V / 3.2A) Power Good Relay
HPV04801.220T (220V / 2.2A)	HPV04801.220TPG (220V / 2.2A) Power Good Relay

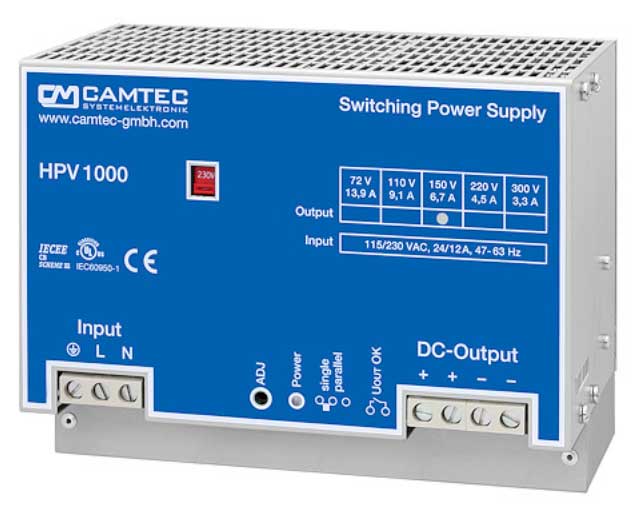

HPV10001

Request quote

Data sheet (En.)

The HPV10001 is a 1000 Watts Input Voltage low inrush Power Supply in Metal housing with Free air convection. Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Open Circuit Proof, High reliability, shock and vibration resistant. The Power Good Relay connection indicates over temperature, low DC-voltage at the output and low AC supply voltage at the input.

HPV10001.072T (72V / 13.9A)	HPV10001.072TPG (72V / 13.9A) Power Good Relay
HPV10001.110T (110V / 9.1A)	HPV10001.110TPG (110V / 9.1A) Power Good Relay
HPV10001.150T (150V / 6.7A)	HPV10001.150TPG (150V / 6.7A) Power Good Relay
HPV10001.220T (220V / 4.6A)	HPV10001.220TPG (220V / 4.6A) Power Good Relay

PSM00803
PSM01502
PSM02202

Request quote

Data sheet (En.)

The Power Supply Front End 80 / 120 / 220 Watts, 3 outputs, Slide-in-Unit with the 19 Inch 3U Norm. Aluminium housing, Free air convection, Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Soft start and auto-recovery. Hold up time 100ms, Switching frequency typ. 70KHz. High reliability, shock a vibration resistant.

Type	Parameter
PSM00803.5.12.12	+5V/8A, +12V/2A, -12V/2A
PSM00803.5.15.15	+5V/8A, +15V/1.8A, -15V/1.8A
PSM01502.12	+12V/12A, -12V/12A (24V/6,25A)
PSM01502.15	+15V/10A, -15V/10A (30V/5A)
PSM02202.12	+12V/12A, -12V/12A (24V/9,2A)
PSM02202.15	+15V/10A, -15V/10A (30V/7,3A)

OSW00751
OSW00901
OSE01201

Request quote

Data sheet (En.)

The Open Frame Power Supply Low Ripple, Baseplate Cooled Power, Free air convection, Galvanic insulated, Continuous short circuit protected, Overload and low voltage protected, Soft start and auto-recovery, Switching frequency 100 KHz, Series and parallel operation, High reliability, shock and vibration resistant.

OSW007501.05 (85V / 7.5A)	OSW007501.09 (9V / 7.6A)
OSW007501.12 (12V / 6.0A)	OSW007501.15 (15V / 5.0A)
OSW007501.24 (24V / 3.2A)	OSW00901.24 (24V / 3.8A)
OSW00901.36 (36V / 2.5A)	OSW00901.48 (48V / 1.9A)
OSW00901.60 (60V / 1.5A)	OSW00901.72 (72V / 1.3A)
OSW00901.140 (140V / 640mA)	OSE01201.12 (12V / 8.0A)
OSE01201.24 (24V / 5.0A)	OSE01201.36 (36V / 3.3A)
OSE01201.48 (48V / 2.5A)	OSE01201.60 (60V / 2.0A)
OSE01201.72 (72V / 1.7A)	OSE01201.110 (110V / 1,1A)

CPS-EP2000
CPS-EP3000
Embedded and Wallmount Power Supply

Request quote

Data sheet (En.)

The high-precision Power Supply scalable 19 inch embedded 2U/3U or hardmount in all positions. 3D Heat Dissipation, safe interlocking, remote shutdown, current monitoring 0-5V, Power Good relay, precise dynamics on load change, long lifetime under hard operation.

CPS-EP2000.024 (24-30V / 84A)	CPS-EP2000.036 (30-45V / 56A)
CPS-EP2000.048 (45-58V / 42A)	CPS-EP2000.072 (58-90V / 28A)
CPS-EP2000.110 (90-150V / 18.2A)	CPS-EP3000.012 (2-15V / 200A)
CPS-EP3000.024 (24-30V / 125A)	CPS-EP3000.036 (30-45V / 83A)
CPS-EP3000.048 (45-58V / 62.5A)	CPS-EP3000.072 (58-90V / 41.6A)
CPS-EP3000.110 (90-150V / 27.2A)	CPS-EP3000.220 (200-300V / 13.6A)
CPS-EP3000.400 (300-400V / 9.1A)	CPS-EP3000.600 (400-600V / 6A)
