Soft starters

The VersiStart p II series of soft starters series is equipped with comprehensive functions for soft start, motor and system protection and is therefore and system protection, making them ideal for a wide range of motors and applications. The favoured areas of application include pumps and fans.

Features:

• three-phase controlled digital-soft starter
• integrated bypass
• current and torque reduction during acceleration
• USB port
• comprehensive and customizable motor protection
• display graphical LCD — real time graphs of motor operating performance
• inside delt(6-wire) connection
• degree of protection IP20 up to 135A
• motor PTC connection

Function:

• adjustable initial start current level up to 600% of nominal rating
• emergency run
• 2 motor sets: forward or reverse jog direction
• remote control inputs (2x fixed, 2x programmable)
• relay outputs (3x programmable)
• 24VDC output
• analog output
• divers soft start/stop control types
• units with 690V upon request

Accessories:

• Remote Keypad and Cable (29000.2S801)
• DeviceNet Interface (29000.2S802)
• Ethernet IP Interface (29000.2S803)
• ModBus RTU Interface (29000.2S804)
• ModBus TCP Interface (29000.2S805)
• Profibus Interface (29000.2S806)
• Profinet Interface (29000.2S807)
• Remote Keypad Card (29000.2S808)
• Remote Keypad, Card and Cable (29000.2S809)
• SmartCard Pump Application (29000.2S810)
• Finger protection (29000.2S811)

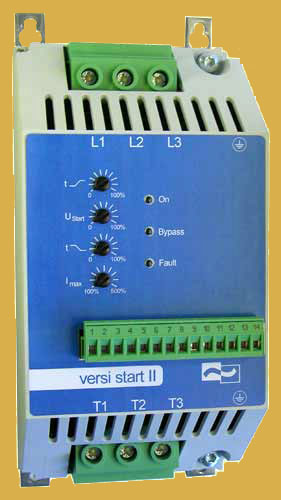

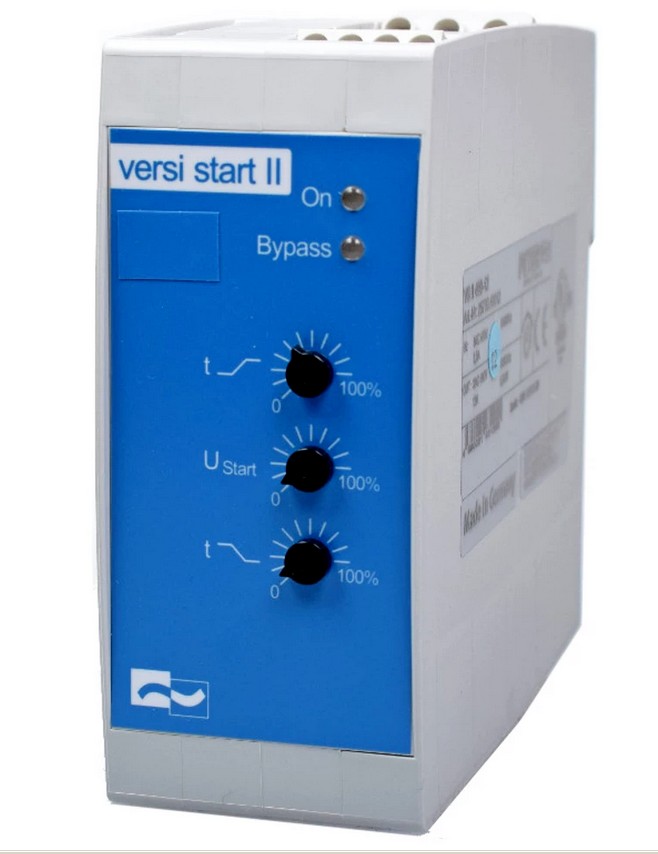

The VersiStart II series are the high-performance entry-level model in the VersiStart product family from PETER electronic and, with four equipment variants plus additional options, offer comprehensive functions for high-quality, smooth starting and stopping.

Features:

• two-phase controlled soft starter
• controlled by microcontroller
• optimized soft start
• connection in the motor deltwinding (cost saving vismaller rating)
• current and torque reduction during acceleration
• easy mounting, for snap-mounting on 35 mm standard rail
• integrated bypass relay
• parameterization by means of three potentiometers
• no additional control voltage required
• no mains neutral conductor (N) required
• economically priced substitute for star-deltstarters
• plug-in power terminals
• control outputs with spring-loaded terminals
• heat sink temperature monitoring
• compact design, 45mm up to 32and 52,5mm at 45A
• degree of protection IP20

Function:

• soft acceleration and deceleration
• potential-free control input for soft acceleration and deceleration
• 3 separately adjustable parameters accel. time, start voltage, decel. time
• boost-start selectable
• potential-free relay output for operating state unit bypassed and failure

SAS family softstarters are designed to provide a smooth start-up of a three-phase motor with single-phase control. They provide inrush current limitation, which reduces electrical and mechanical stresses, thus extending the life of the motor and its drive. They work with standard AC induction motors.

• Engine power 3 - 22 kW
• Single phase control
• Adjustable starting torque
• Settable start time
• All devices in this series are for motors with Y - Δ switching
• Ability to switch the network from 400V to 230V
• Standard terminal assignment
• All devices in this series are for 35 mm bus
• Shorting relay integrated
• No network neutral wire required
• Protection degree IP 20 (SAS 3 ... SAS 11)
• Protection degree IP 00 (SAS 11PUST, 22PUST)
• Potential-free control input (optional)
• Main voltage up to 640V (on request)
