Braking devices

PETER electronic

The products offered by the company PETER electronic GmbH have a significant niche in the market of electronic products and due to a good price-quality ratio, compete with well-known large companies, manufacturers of similar equipment. The product range consists of devices for controlling three-phase asynchronous motors as well as DC motors. The whole range is constantly being improved and supplemented and today includes softstarters and DC braking devices. We guarantee our customers that we ship all products within 10 working days.


DC brake VersiBrake Safe

DC brake
VersiBrake Safe

Made in Germany
UL сертификат

The DC brake with equipment protection VersiBrake Safe offers maximum control and safety for a gentle shutdown. The VersiBrake Safe braking device ensures that motors with efficiency classes IE1 to IE3 are gently, wear-resistant and safely braked. In particular, the relevant specifications or European DIN standards in compliance with the requirements of category 2, PL c from EN13849-1: 2008 and SIL1 according to DIN EN 61508 for the safety of woodworking machines are met. The safety functions include, for example, the prevention of unintentional startup due to interference, the controlled controlled shutdown, the control of the (protective) door lock or the external standstill monitoring with intelligent standstill detection.

  • DC braking with one‐way rectification
  • integrated braking contactor
  • integrated standstill detection
  • monitoring of stopping time
  • suitable for all asynchronous motors
  • suitable for IE1, IE2 and IE3 motors
  • self-optimizing braking
  • CANopen on board
  • degree of protection IP20
  • plugable push-in control terminals
  • parameterization via keypad or CAN-Bus
  • potential-free control inputs and outputs
  • motor temperature monitoring (PTC, KTY, PT1000)
  • device protection
  • tool speed monitoring (external speed sensor required)
  • device fault relay (safety relevant)
  • summary fault relay
  • star-delta starting control
Manufactured part numbers open, use the search ctrl + F
2B500.48072 VB S 480-72
2B500.48132 VB S 480-132
2B500.48222 VB S 480-222
2B500.48360 VB S 480-360
2B500.60072 VB S 600-72
2B500.60132 VB S 600-132
2B500.60222 VB S 600-222
2B500.60360 VB S 600-360
2B600.48060 VB S LP 480-60
2C000.23020 VBMS 230-1,5/20
2C000.40020 VBMS 400-2,2/20

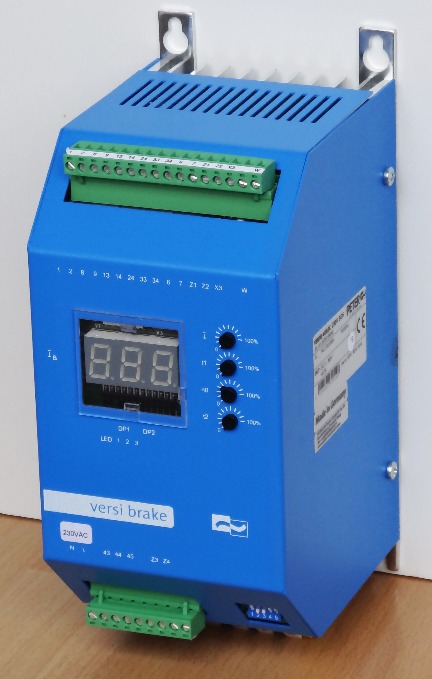

DC brake VersiBrake

DC brake
VersiBrake

Made in Germany
UL сертификат

The DC brake with equipment protection VersiBrake offers maximum control for a gentle shutdown. The VersiBrake braking device ensures that motors with efficiency classes IE1 to IE3 are gently, wear-resistant and safely braked. In particular, the relevant specifications or European DIN standards. The functions include, for example, the prevention of unintentional startup due to interference, the controlled controlled shutdown, the control of the (protective) door lock or the external standstill monitoring with intelligent standstill detection.

  • DC braking with on-way rectification
  • controlled by microcontroller
  • suitable for all asynchronous motors
  • easy mounting, also for retrofitting into existing plants
  • wear-resistant and maintenance-free
  • integrated braking contactor (devices up to 60A)
  • degree of protection IP 20
  • control via motor contactor
  • standstill- or time-dependent braking
  • signalling relay for exceeded braking times
  • braking current adjustments 0...100%, current control
  • automatic remanence time optimization
  • braking times 0,5 — 320s
  • temperature monitoring of heat sink
  • potential-free signalling and control outputs
  • 2nd braking time 0,5 — 40s selectable
  • manual braking stop selectable
Manufactured part numbers open, use the search ctrl + F
21900.23025 VB 230-25
21900.23036 VB 230-36
21900.40025 VB 400-25
21900.40036 VB 400-36
29700.23040 VB 230-40
29700.23060 VB 230-60
29700.23100 VB 230-100
29700.23200 VB 230-200
29700.23400 VB 230-400
29700.23600 VB 230-600
29700.40040 VB 400-40
29700.40060 VB 400-60
29700.40100 VB 400-100
29700.40200 VB 400-200
29700.40400 VB 400-400
29700.40600 VB 400-600
29731.23040 VB 230-40 APC
29731.23400 VB 230-400 APC
29731.40040 VB 400-40 APC
29731.40060 VB 400-60 APC
29731.40100 VB 400-100 APC
29731.40200 VB 400-200 APC
29731.40400 VB 400-400 APC
29731.40600 VB 400-600 APC
29733.60040UL VB 600-40 APBC
29733.60060UL VB 600-60 APBC
29733.60100UL VB 600-100 APBC
29733.60200UL VB 600-200 APBC
29733.60400UL VB 600-400 APBC
29733.60600UL VB 600-600 APBC
29800.23025 VB 230-25 UL
29800.40025 VB 400-25 UL
2B000.23006 VB 230-6L
2B000.23025 VB 230-25L
2B000.23030 VB 230-30L
2B000.40006 VB 400-6L
2B000.40025 VB 400-25L
2B000.40030 VB 400-30L
2B100.23006 VB 230-6L LP
2B100.23025 VB 230-25L LP
2B100.23030 VB 230-30L LP
2B100.40006 VB 400-6L LP
2B100.40025 VB 400-25L LP
2B100.40030 VB 400-30L LP
2B200.23006 VB 230-6LT
2B200.23025 VB 230-25LT
2B200.23030 VB 230-30LT
2B200.40006 VB 400-6LT
2B200.40025 VB 400-25LT
2B200.40030 VB 400-30LT
