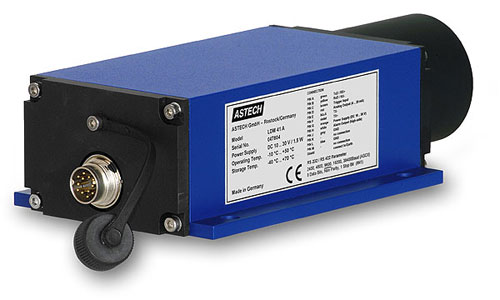

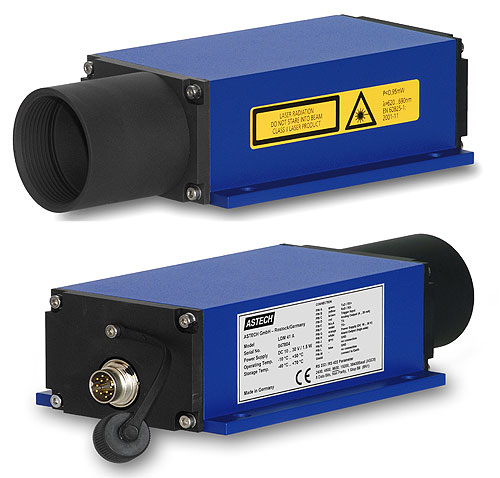

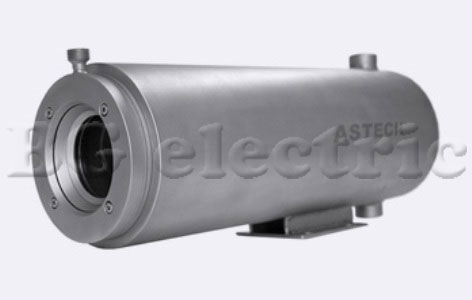

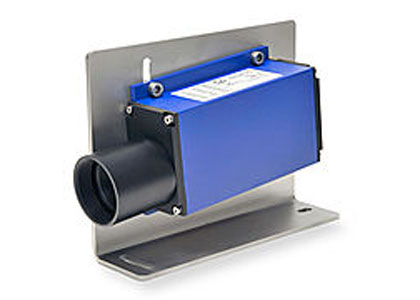

Laser distance measuring deviceLDM41ALDM42A

Laser distance measuring device
LDM41A
LDM42A

Request quote
Made in Germany

RS232, RS422

LDM41A is an optoelectronic distance measuring device for industrial applications with an analogue interface 4...20 mA. It works contact-free on the principle of comparative phase measurement (amplitude modulation) and facilitates precisely accurate measurement of distances. It distinguishes itself through high precision as well as high independence from the surface of the measuring object. The red, visible laser beam allows for easy alignment. The sister model LDM42A has been further developed for fast distance measurements on white surfaces.

Measuring range 0.2 m ... 30 m on almost all natural surfaces, over 100 m achievable depending on the degree of reflection of surfaces
Measuring uncertainty ±2 mm under defined measuring conditions
±3 mm (+15 °C ... +30 °C)
±5 mm (-10 °C ... +50 °C)
Resolution 0.1 mm, freely scalable
Reproducibility 0.5 mm
Measuring time 0.24 s ... 6 s adjustable or automatically in mode DT
0.1 s in mode DW on white surface
20 ms in mode DX on white surface (only LDM42A)
Laser divergence 0.6 mrad
Laser class Laser class 2 acc. to DIN EN 60825-1:2001-11 (650 nm, red)
Operating temperature -10 °C ... +50 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Power consumption Ca. 1.5 W
Serial interface RS232 or optional RS422, max. Baud rate 38400, ASCII, setting of measuring functions, scaling, measuring time via commands, display of measured values, internal temperature and error code
Switching output Programmable switching threshold and hysteresis, "high side" switch, maximum load 0.5 A
Analog output Programmable distance range limits,
4 mA to 20 mA, adjustable reaction on error (3 mA, 21 mA or last valid measured value)
Housing material Aluminum anodized
Size 187 mm x 96 mm x 50 mm
Weight 850 g
Protection class IP 65
Shock resistance 10 g / 6 ms (DIN ISO 9022-3-31-01-1)
MTBF 30,000 hours at 25 °C
Mounting 4 drill holes for M6 screws, 100 mm x 85 mm

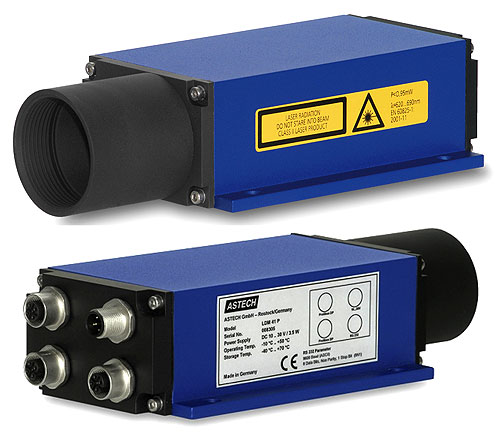

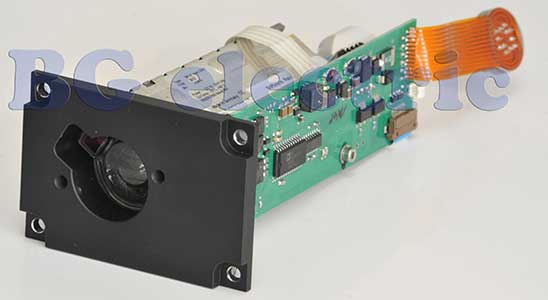

Laser distance measuring deviceLDM41PLDM42P

Laser distance measuring device
LDM41P
LDM42P

Request quote
Made in Germany

лого ProfiBus

LDM41P is an optoelectronic distance measuring device for industrial applications with integrated Profibus DP interface. It works contact-free on the principle of comparative phase measurement (amplitude modulation) and facilitates precisely accurate measurement of distances. Both, the LDM41P and the LDM42P distinguish themselves through high precision as well as high independence from the surface of the measuring object. The red, well visible laser beam allows for easy alignment. The LDM42P has been further developed for fast distance measurements on white surfaces. Through the integrated Profibus DP interface it is possible to read in data of several devices into a control easily.

Measuring range 0.2 m ... 30 m on almost all natural surfaces, over 100 m achievable depending on the degree of reflection of surfaces
Measuring uncertainty ±2 mm under defined measuring conditions
±3 mm (+15°C ... +30°C)
±5 mm (-10 °C ... +50 °C)
Resolution 0.1 mm, freely scalable
Reproducibility 0.5 mm
Measuring time 0.24 s ... 6 s adjustable or automatically in mode DT
0.1 s in mode DW on white surface
20 ms in mode DX on white surface (only LDM42P)
Laser class Laser class 2 acc. to DIN EN 60825-1:2001-11
Laser divergence 0.6 mrad
Operating temperature -10 °C ... +50 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Power consumption Ca. 3.5 W
Serial interface RS232 or optional RS422, max. Baud rate 38400, ASCII, setting of measuring functions, scaling, measuring time via commands, display of measured values, internal temperature of the device and error code
Fieldbus Profibus DP-V0
12 MBit, Autodetect
Switching output Programmable switching threshold and hysteresis, "high side" switch, maximum load 0.5 A
Housing material Aluminum anodized
Size (LxBxH) 187 mm x 96 mm x 50 mm
Weight 850 g
Protection class IP 65
Shock resistance 10 g / 6 ms (DIN ISO 9022-3-31-01-1)
MTBF 30,000 hours at 25 °C
Mounting 4 drill holes for M6 screws, 100 mm x 85 mm

Laser distance measuring deviceLDM41PNLDM42PN

Laser distance measuring device
LDM41PN
LDM42PN

Request quote
Made in Germany

лого ProfiBus

LDM41PN is an optoelectronic distance measuring device for industrial applications with integrated Profinet interface. It works contact-free on the principle of comparative phase measurement (amplitude modulation) and facilitates precisely accurate measurement of distances. Both, the LDM41PN and the LDM42PN distinguish themselves through high precision as well as high independence from the surface of the measuring object. The red, well visible laser beam allows for easy alignment. The LDM42PN has been further developed for fast distance measurements on white surfaces. Through the integrated Profinet interface it is possible to read in data of several devices into a control easily.

Measuring range 0.2 m ... 30 m on almost all natural surfaces, over 100 m achievable depending on the degree of reflection of surfaces
Measuring uncertainty ±2 mm under defined measuring conditions
±3 mm (+15°C ... +30°C)
±5 mm (-10 °C ... +50 °C)
Resolution 0.1 mm, freely scalable
Reproducibility 0.5 mm
Measuring time 0.24 s ... 6 s adjustable or automatically in mode DT
0.1 s in mode DW on white surface
20 ms in mode DX on white surface (only LDM42PN)
Laser class Laser class 2 acc. to DIN EN 60825-1:2001-11
Laser divergence 0.6 mrad
Operating temperature -10 °C ... +50 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Power consumption Ca. 4 W
Serial interface RS232 or optional RS422, max. Baud rate 38400, ASCII, setting of measuring functions, scaling, measuring time via commands, display of measured values, internal temperature of the device and error code
Fieldbus Profinet
Switching output Programmable switching threshold and hysteresis, "high side" switch, maximum load 0.5 A
Housing material Aluminum anodized
Size (LxBxH) 187 mm x 96 mm x 50 mm
Weight 850 g
Protection class IP 65
Shock resistance 10 g / 6 ms (DIN ISO 9022-3-31-01-1)
MTBF 30,000 hours at 25 °C
Mounting 4 drill holes for M6 screws, 100 mm x 85 mm

Laser distance measuring deviceLDM41ELDM42E

Laser distance measuring device
LDM41E
LDM42E

Request quote
Made in Germany

лого ethernet

LDM41E is an optoelectronic distance measuring device for industrial applications with an integrated Ethernet interface. It works contact-free on the principle of comparative phase measurement (amplitude modulation) and facilitates precisely accurate measurement of distances. Both, the LDM41E and the LDM42E distinguish themselves through high precision as well as high independence from the surface of the measuring object. The red, well visible laser beam allows for easy alignment. The LDM42E has been developed for fast distance measurements on white surfaces. Through the integrated Ethernet interface it is possible to retrieve the measured data in the network via Telnet protocol or to change parameters.

Measuring range 0.2 m ... 30 m on almost all natural surfaces, over 100 m achievable depending on the degree of reflection of surfaces
Measuring uncertainty ±2 mm under defined measuring conditions
±3 mm (+15 °C ... +30 °C)
±5 mm (-10 °C ... +50 °C)
Resolution 0,1 mm, freely scalable
Reproducibility 0,5 mm
Measuring time 0.24 s ... 6 s adjustable or automatically in mode DT
0.1 s in mode DW on white surface
20 ms in mode DX on white surface (only LDM42E)
Laser class Laser class 2 acc. to DIN EN 60825-1:2001-11 (650 nm, red)
Laser divergence 0,6 mrad
Operating temperature -10 °C ... +50 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Power consumption Ca. 3,5 W
Serial interface RS232 or optional RS422, max. Baud rate 38400, ASCII, setting of measuring functions, scaling, measuring time via commands, display of measured values, internal temperature of the device and error code
Switching output Programmable switching threshold and hysteresis, "high side" switch, maximum load 0.5 A
Housing material Aluminum anodized
Size (LxBxH) 187 mm x 96 mm x 50 mm
Weight 850 g
Protection class IP 65
Shock resistance 10 g / 6 ms (DIN ISO 9022-3-31-01-1)
MTBF 30,000 hours at 25 °C
Mounting 4 drill holes for M6 screws, 100 mm x 85 mm

Laser distance measuring deviceLDM41EILDM42EI

Laser distance measuring device
LDM41EI
LDM42EI

Request quote
Made in Germany

лого ethernet

LDM41EI is an optoelectronic distance measuring device for industrial applications with EtherNet/IP interface. It works contact-free on the principle of comparative phase measurement (amplitude modulation) and facilitates precisely accurate measurement of distances. Both, the LDM41EI and the LDM42EI distinguish themselves through high precision as well as high independence from the surface of the measuring object. The red, well visible laser beam allows for easy alignment. The LDM42EI has been further developed for fast distance measurements on white surfaces. Through the integrated EtherNet/IP interface it is possible to read in data of several devices into a control easily.

Measuring range 0.2 m ... 30 m on almost all natural surfaces, over 100 m achievable depending on the degree of reflection of surfaces
Measuring uncertainty ±2 mm under defined measuring conditions
±3 mm (+15°C ... +30°C)
±5 mm (-10 °C ... +50 °C)
Resolution 0.1 mm, freely scalable
Reproducibility 0.5 mm
Measuring time 0.24 s ... 6 s adjustable or automatically in mode DT
0.1 s in mode DW on white surface
20 ms in mode DX on white surface (only LDM42EI)
Laser class Laser class 2 acc. to DIN EN 60825-1:2001-11
Laser divergence 0.6 mrad
Operating temperature -10 °C ... +50 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 V ... 30 V direct currents
Power consumption Ca. 4 W
Serial interface RS232, max. Baud rate 38400, ASCII, setting of measuring functions, scaling, measuring time via commands, display of measured values, internal temperature of the device and error code
Fieldbus Profinet
Switching output Programmable switching threshold and hysteresis, "high side" switch, maximum load 0.5 A
Housing material Aluminum anodized
Size (LxBxH) 187 mm x 96 mm x 50 mm
Weight 850 g
Protection class IP 65
Shock resistance 10 g / 6 ms (DIN ISO 9022-3-31-01-1)
MTBF 30,000 hours at 25 °C
Mounting 4 drill holes for M6 screws, 100 mm x 85 mm

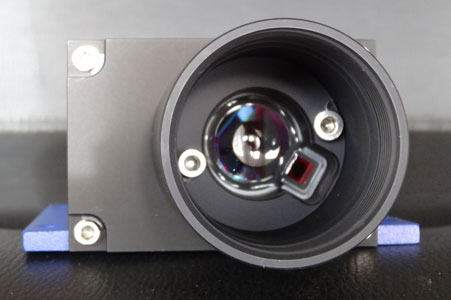

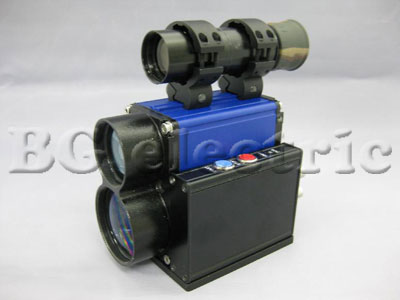

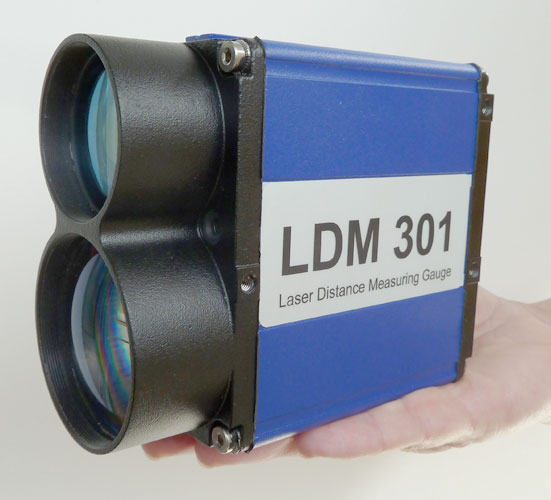

Laser distance measuring deviceLDM 301 ALDM 301 PLDM 301 S

Laser distance measuring device
LDM 301 A
LDM 301 P
LDM 301 S

Request quote
Made in Germany

RS232, RS422

лого ProfiBus

лого SSI

LDM301A measures distances to targets up to 3000 m away with a precision down to the centimeter. It is able to detect the speed of moving objects with high accuracy. Operated without a reflector, the LDM301A convinces with a range of 300 m on almost each surface. In addition to the large working range, the LDM301A is characterized by very short measuring times down to 0.1 ms. The compact design of the device, the easy set-up and the standard interfaces RS422 or RS232 allow for easy installation and operation. The status of the device can be monitored via LED display during operation. The heating integrated in the device ensures reliable operation at temperatures as low as -40°C. The LDM301A offers the option to add a visor or additional interfaces, such as PROFIBUS DP and SSI.

Measuring range 0.5 ... 300 m on almost all natural surfaces, up to 3 km with a target plate
Measurement uncertainty ±20mm at 2 kHz measuring rate and 100 Hz output rate
Resolution 1 mm
Measuring time 0.5 ms (optional 0.1 ms)
Measuring range for velocity 0 m/s ... 100 m/s (measuring time 0.1 s ... 0.5 s)
Measuring laser 905 nm (infrared), laser class 1, EN 60825-1:2003-10
Pilot Laser 650 nm (visible red), laser class 2, ≤ 1 mW (on, off, flashing)
Operating temperature -40 °C ... +60 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 VDC ... 30 VDC
Power consumption 5 W (operation without heating)
11.5 W (operation with heating at 24 V)
Interfaces RS 232 or RS 422, 1.2 kBaud ... 460.8 kBaud, ASCII, 8N1
Programming with Windows terminal program (e.g. LDMTool or Hyper Terminal)
Profibus DP, SSI (optional)
Switching outputs 2 x "high side" switches, output current max. 0.2 A, permanently short-circuit-proof, adjustable window function
Analog output Programmable distance range limits, 4 mA ... 20 mA
Housing Aluminum anodized
Size (LxBxH) 136 mm x 57 mm x 104 mm
Weight ca. 800 g
Protection class IP 67
Shock resistance 10 g / 6 ms persistence shock DIN ISO 9022-3-31-01-1
MTTF 13,000 hours (MIL HDBK 217 F N2)

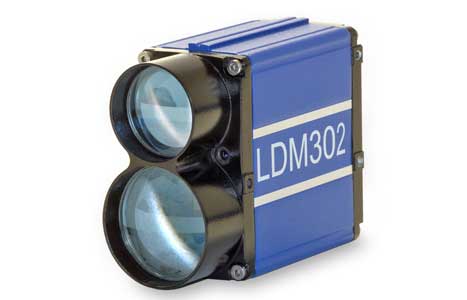

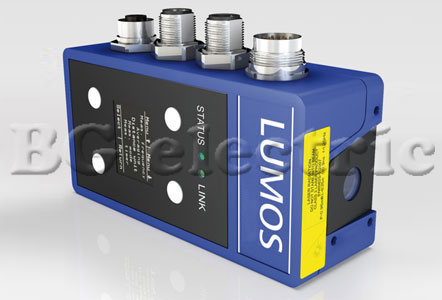

Laser distance measuring deviceLDM302A

Laser distance measuring device
LDM302A

Request quote
Made in Germany

RS232, RS422

лого ProfiBus

лого SSI

LDM302A is technically based on the versatile LDM301A. It has, however, especially been optimized for reliable distance measurements on poorly reflecting surfaces. The proven time-of-flight measurement principle combines high resistance against ambient interferences with the safety of laser class 1. The high-energy, but very short laser pulses allow for measurements with centimeter precision and a high repetition rate. The signal processing that has been changed compared against the LDM301A ensures reliable measurements up to 200 m without reflectors with a target reflectivity of only 6%. The sensor can also be used in harsh industrial environments, such as ports or open cast mines due to the integrated heating and the protective housing according to protection class IP 67. The LDM302A offers the option to add visors or additional interfaces such as Profibus DP.

Measuring range 0.5 ... 200 m for targets with poor reflectivity (10%) with white target plate up to 3 km
Measurement uncertainty ±14 mm at 100Hz measuring rate and 10 Hz output rate
Resolution 1 mm
Measuring time 100 ms
Measuring range for velocity 0 m/s ... 100 m/s (measuring time 0.1 s to 0.5 s)
Measuring laser 905 nm (infrared), laser class 1, EN 60825-1:2003-10
Pilot Laser 650 nm (visible red), laser class 2, 1 mW (on, off, flashing)
Operating temperature -40 °C ... +60 °C
Storage temperature -40 °C ... +70 °C
Supply voltage 10 VDC ... 30 VDC
Power consumption 5 W (operation without heating) 11.5 W (operation with heating 24 V)
Interfaces RS 232 or RS 422, transmission rate 1.2 kBaud ... 460.8 kBaud, ASCII, 8N1 Programming with Windows terminal program (e.g. LDMTool or Hyper Terminal)
Switching outputs 2 x "high side" switches, output current max. 0.2 A, permanently short-circuit-proof, adjustable window function
Analog output Programmable distance range limits, 4 mA ... 20 mA
Housing Aluminium anodized
Size (LxBxH) 136 mm x 57 mm x 104 mm
Weight ca. 800 g
Protection class IP 67
Shock resistance 10 g / 6 ms persistence shock DIN ISO 9022-3-31-01-1
MTBF 13,000 hours (MIL HDBK 217 F N2)

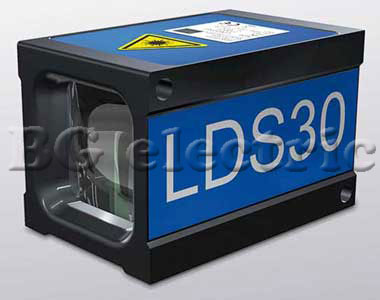

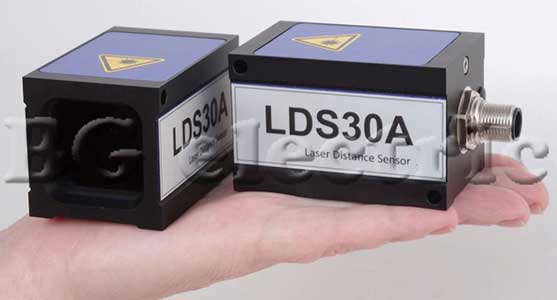

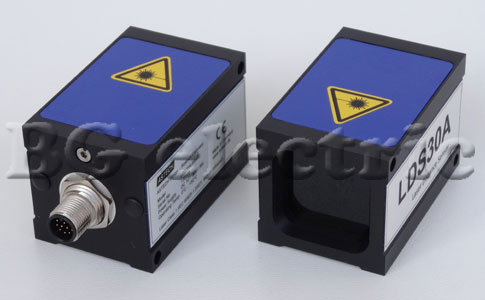

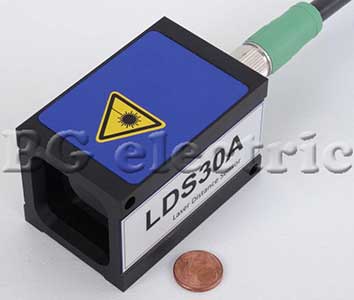

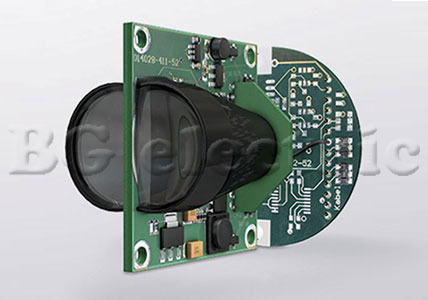

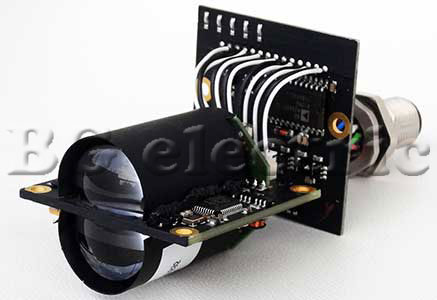

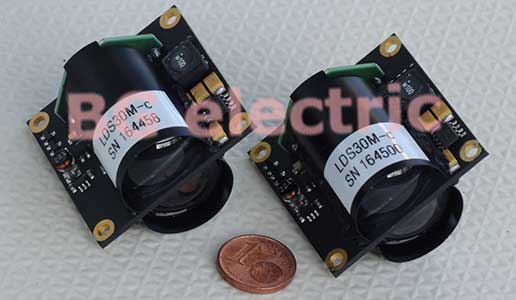

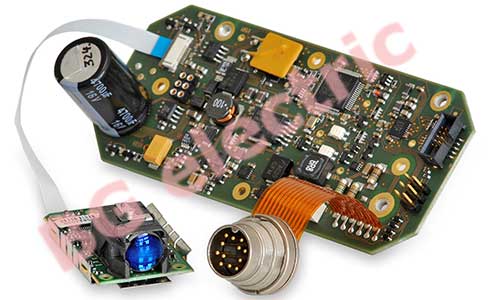

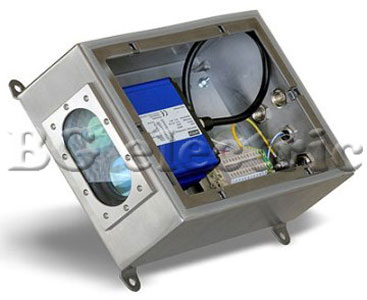

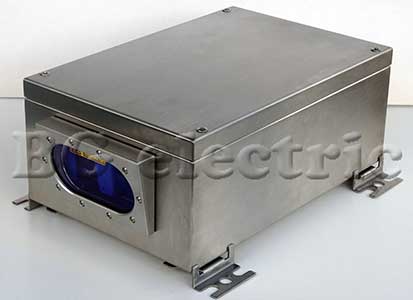

Laser distance measuring deviceLDS30A

Laser distance measuring device
LDS30A

Request quote
Made in Germany

RS232, RS422

LDS30A laser distance sensor is intended for general distance measurements that require extremely fast data acquisition. It provides up to 30,000 centimeter-precise measuring values per second – up to 30 m without a reflector. With appropriate reflectors the LDS30A reaches objects at distances of up to 250 m. The sensor has been optimized for easy system integration and has a shock-proof and impact-resistant IP 67 housing. Thus, it is most suitable for applications that impose high impact on the sensor, such as harsh industrial environments. Due to the invisible and eye safe laser (905 nm) the LDS30A can also be used in public areas.

Measuring range 0.2 m ... 30 m for target reflectance of ≥ 10 % Up to 250 m for high target reflectance or use of reflectors
Measuring accuracy ±5 cm
Reproducibility ±2 cm
Resolution 1 cm
Maximum measuring rate 30 kHz using binary data output 15 kHz using decimal or binary data output
Laser divergence 3 mrad × 1 mrad
Laser protection class Laser class 1, EN 60825-1:2007, 905 nm (infrared)
Operating temperature 0 °C ... +50 °C
Storage temperature -40 °C ... +70 °C
Power supply 10 VDC ... 30 VDC
Power consumption (max.) 3 W
Serial interfaces RS232 or RS422, max. Baud rate 921600, ASCII or binary encoded 9600 … 921600 Baud, 8N1, ASCII
Digital switching output 2x "high side” switches, max. load 0.2 A
Analog output Programmable distance range, 4 ... 20 mA
Humidity 10 % ... 90 %, not condensing
EMV EN 61000-6-2, EN 55011
Shock / Vibrationn DIN ISO 9022-3
Weight 125 g
Protection class IP 67
Size (incl. connector) 86 mm × 45 mm × 45 mm
MTTF 5 years (> 44.000 hours)
