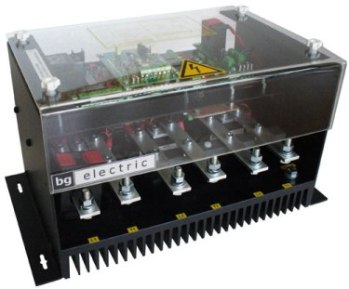

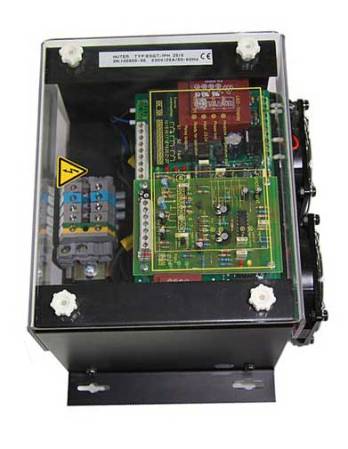

Single-phase thyristor regulators ESGT (Germany) for loads up to 2500 A / 500 V

Looking for the price? [x]
Copy & paste part number:

ESGT 3PH

ESGT

General parameters of single-phase power regulators of the ESGT series:

  • Load supply voltage: 110...500 VAC +/- 10%, 50 Hz
  • Regulator supply voltage: 230 VAC, 50 Hz (optional: 400 VAC or 24 VDC)
  • Degree of protection against dust and moisture: IP 23
  • Control signals: 0...10 V, 0...20 mA, potentiometer, (optional 4...20 mA)
  • Phase switching for inductive (transformer) load
  • Batch switching for active (resistive) load
  • Regulators provide optical and electrical fault indication:
    • phase loss
    • exposure of temperature
    • reduced voltage
    • Thyristor Defect
  • Controller working temperature 0...+55°C
  • Permissible humidity not lower than class E according to DIN 40040
  • Compliance with the German standards VDE 0558 (part 1) and VDE 0160
  • Compliance with European standards CE, EN 60204, IEC 947-4-2
  • Optional options available (optional):
    • Constant current maintenance in the load, set by potentiometer (only possible with phase switching), (I)
    • Constant voltage at load, set by potentiometer (only possible with phase switching), (U)
    • Current limitation in load 5...100%, set by potentiometer (only possible with phase switching), (IB)
    • Analog output proportional to the current in the load (only possible with phase switching), (AI)
    • Analog output proportional to the voltage at load (only possible with phase switching), (AU)
    • Auxiliary own power supply of the regulator from an external 24 V DC source, (24VDC)
    • Auxiliary own controller power supply from external 400 VAC, (400V)
    • Auxiliary own supply to the regulator is generated from the mains voltage, (IV)
    • Power management in load by external current signal 4...20 mA, (4...20mA)
    • Electronic switch-off of the regulator when maximum current is reached, (ES)
    • Double option. Electronic switch-off when maximum current is reached and current limitation, (only possible with phase switching), (ES/IB)
    • Interface RS485 Modbus, (Mod)
    • Improved degree of protection against dust and moisture IP55, regulator in protective housing, (IP55)
    • Maximum regulator operating voltage 690 V, (U690)
    • Maximum regulator operating voltage 1000 V, (U1000)

Thyristor regulators with IP20 protection must be installed in a forced ventilation control cabinet, which ensures efficient removal of generated heat and maintenance of the regulator temperature not exceeding +55°C. Measures must be taken to prevent dust and dirt from entering the regulator. Excessive humidity, aggressive atmosphere, vibration and other mechanical influences must also be avoided.

The ESGT regulator is connected to the network via a circuit breaker and fuses, which can be installed either directly on the regulator busbars or separately in the enclosure. The tripping current of the recommended fuse is specified in the enclosed documentation. With each order we will also offer optional fast fuses of the Ultra-Rapid series manufactured by the German company SIBA. It is possible to order fuses in any quantity, either as a regulator package or in spare parts.

Mains chokes and filters are recommended in order to maintain the quality of the mains voltage and prevent high frequency interference. If necessary, our company will offer suitable models in each case.

Regulator type
   1st: with phase switching
  2nd: with packet switching		 Max. current
loads, A		 Recommendation
electronics
fuse, A		 Recommendation
smelting
fuse, А		 Recommendation
cable cut
(square mm)		 Size,
dimensions,
(mm)
ESGT-1Ph 05
ESGT-1Ph/SP 05		510161,5ESGT
Size A
140 x 200 x 115
ESGT-1Ph 08
ESGT-1Ph/SP 08		815161,5
ESGT-1Ph 15
ESGT-1Ph/SP 15		1525252,5
ESGT-1Ph 25
ESGT-1Ph/SP 25		2530324,0
ESGT-1Ph 35
ESGT-1Ph/SP 35		3540506,0
ESGT-1Ph 50
ESGT-1Ph/SP 50		50608010

ESGT
Size B
260 x 205 x 170
ESGT-1Ph 60
ESGT-1Ph/SP 60		608010016
ESGT-1Ph 75
ESGT-1Ph/SP 75		758010025
ESGT-1Ph 90
ESGT-1Ph/SP 90		10010012535
ESGT-1Ph 120
ESGT-1Ph/SP 120		12513020050
ESGT-1Ph 160
ESGT-1Ph/SP 160		16020025050
Regulator type
   1st: with phase switching
  2nd: with packet switching		 Max. current
loads, A		 Recommendation
electronics
fuse, A		 Recommendation
smelting
fuse, А		 Recommendation
cable cut
(square mm)		 Size,
dimensions,
(mm)
ESGT-1Ph 220
ESGT-1Ph/SP 220		20030030070
ESGT
Size C
360 x 250 x 170
ESGT-1Ph 280
ESGT-1Ph/SP 280		30040035095
ESGT-1Ph 350
ESGT-1Ph/SP 350		350450400120
ESGT-1Ph 420
ESGT-1Ph/SP 420		420450400120
ESGT-1Ph 560
ESGT-1Ph/SP 560		560750630150
ESGT-1Ph 720
ESGT-1Ph/SP 720		720900800240ESGT
Size D
360 x 445 x 240
ESGT-1Ph 1000
ESGT-1Ph/SP 1000		100012001200400
ESGT-1Ph 1250
ESGT-1Ph/SP 1250		125018001500500
ESGT-1Ph 1400
ESGT-1Ph/SP 1400		1400180015002х240
ESGT-1Ph 1600
ESGT-1Ph/SP 1600		1600200016002х300ESGT
Size E
600 x 545 x 346
ESGT-1Ph 1850
ESGT-1Ph/SP 1850		18502х100018002х300
ESGT-1Ph 2000
ESGT-1Ph/SP 2000		20002х125020002х400
ESGT-1Ph 2500
ESGT-1Ph/SP 2500		25002х125025002х500
