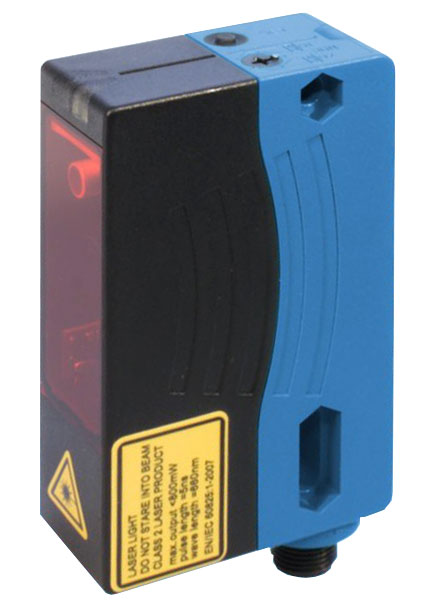

optoNCDT ILR 1030 / 1031 laser distance sensors operate according to the time-of-flight technology. Based on this technology, these sensors provide accurate, reliable
and unambiguous as well as reproducible measurement results regardless of ambient conditions such as surface properties, dark colors or ambient light. The ILR103x/LC models use a measuring laser with laser class 1.
| Measuring range |
target gray with 10% reflection = 0.2 ... 5 m
target white with 90% reflection = 0.2 ... 15 m
target with reflector film (foil) = 10 ... 50 m
|
| Measuring uncertainty |
±20 mm |
| Resolution |
1 mm, freely scalable |
| Reproducibility |
5 mm |
| Measuring time |
10 ms |
| Laser class |
semiconductor laser (red 660 nm) |
| Operating temperature |
-30 … + 50 °C |
| Storage temperature |
-40 °C ... +70 °C |
| Supply voltage |
10 V ... 30 V direct currents |
| Switching output |
Programmable switching, maximum load 0.5 A |
| Analog output |
Programmable distance range limits,
4 mA to 20 mA, adjustable |
| Size |
194 mm x 99 mm x 51 mm |
| Weight |
90 g |
| Protection class |
IP 65 |
|
